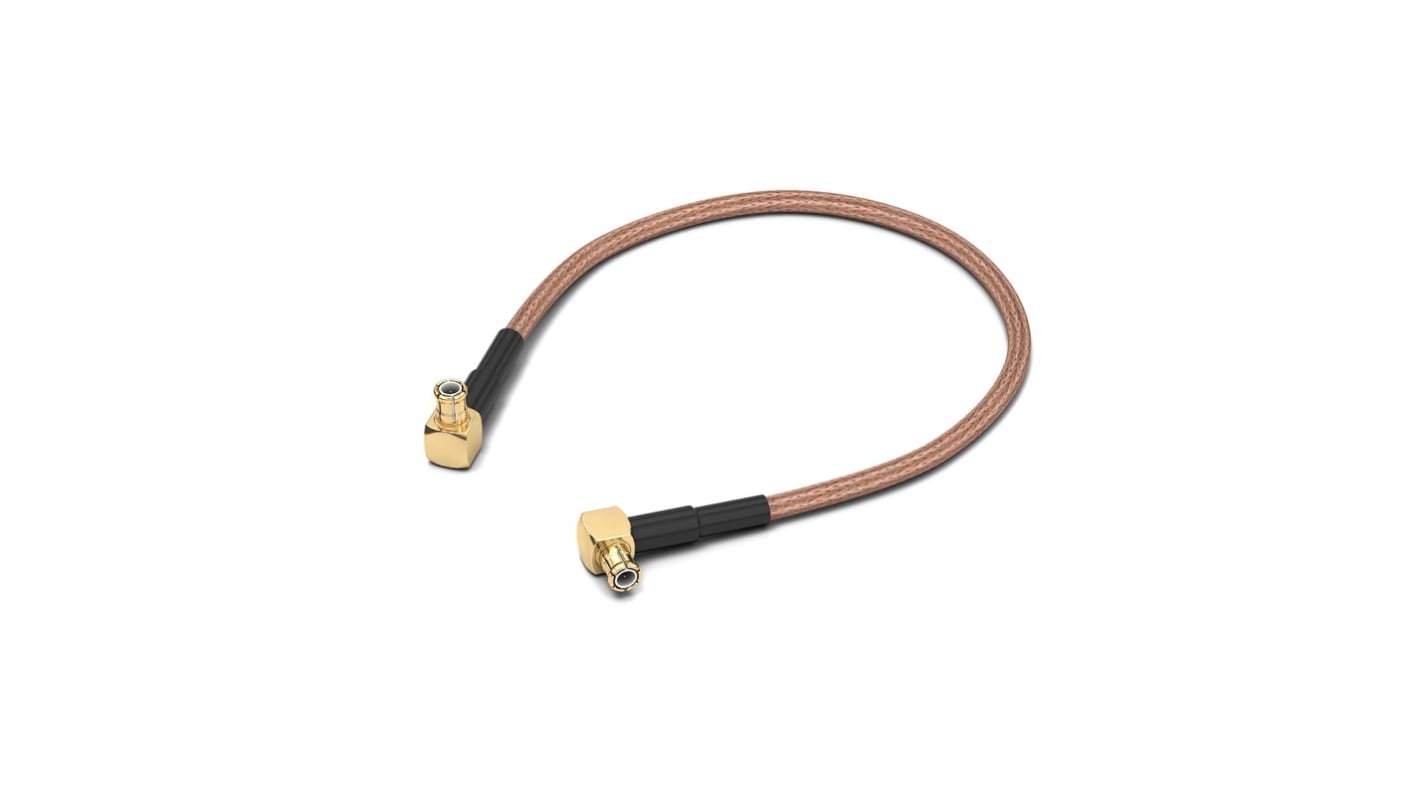

Wurth Elektronik WR-CXASY Series Male MCX to Male MCX Coaxial Cable, 152.4mm, RG178/U Coaxial, Terminated
- RS Stock No.:
- 205-3710
- Mfr. Part No.:
- 65502110415301
- Brand:
- Wurth Elektronik
10 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 10)
$55.28
(exc. GST)
$60.81
(inc. GST)
| Units | Per unit | Per Bag* |
| 10 - 10 | $55.28 | $552.80 |
| 20 - 90 | $53.896 | $538.96 |
| 100 + | $48.507 | $485.07 |
| *price indicative | ||
- RS Stock No.:
- 205-3710
- Mfr. Part No.:
- 65502110415301
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Wurth Elektronik RG-178/U flexible coaxial cable has length up to 152.4 mm. The cable has braided shielding. It has 3 GHz operating frequency range.
Operating temperature range is from -65 °C to +165 °C
RoHS compliant
REACh compliant
RoHS compliant
REACh compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Terminated |
| Connector 1 | MCX |
| Coaxial Type | RG178/U |
| Connector 2 | MCX |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Connector 1 Orientation | Right Angle |
| Connector 2 Orientation | Right Angle |
| Outer Diameter | 1.8mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 0.83 dB |
| Length | 152.4mm |
| Standards Met | REACH |
| Maximum Operating Temperature | +155°C |
| Minimum Operating Temperature | -55°C |
| Conductor Material | Brass |
| Insulation Material | PTFE |
| Shielding | Braid |
| Series | WR-CXASY |
| Operating Temperature Range | -55 → +155 °C |
