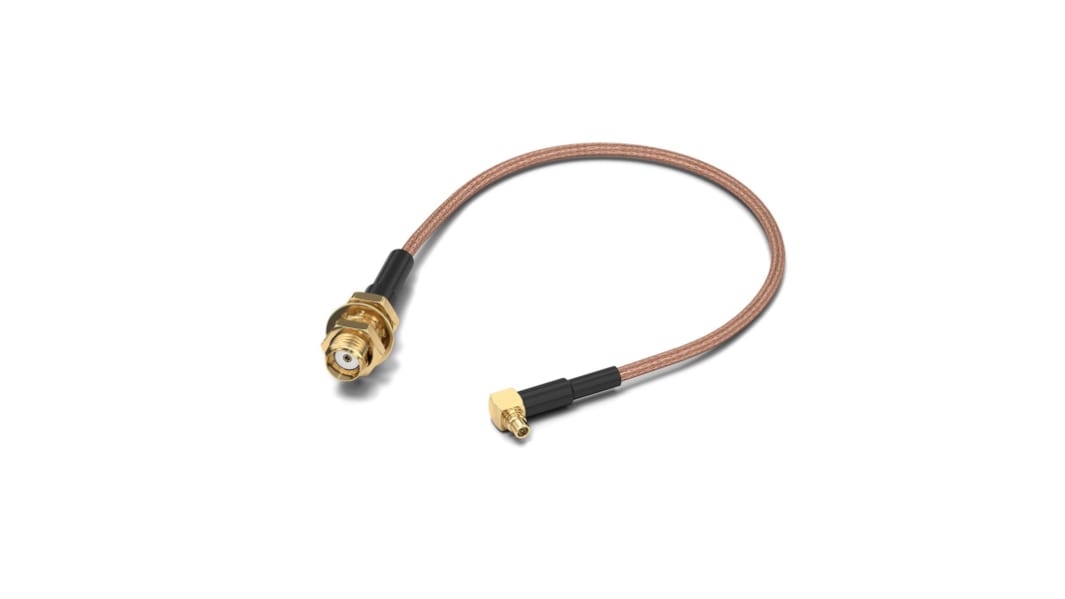

Wurth Elektronik WR-CXASY Series Female SMA to Male MCX Coaxial Cable, 152.4mm, RG316/U Coaxial, Terminated
- RS Stock No.:
- 205-3699
- Mfr. Part No.:
- 65501710515301
- Brand:
- Wurth Elektronik
25 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Bag of 10)
$61.411
(exc. GST)
$67.552
(inc. GST)
Units | Per unit | Per Bag* |
---|---|---|
10 - 10 | $61.411 | $614.11 |
20 - 90 | $59.876 | $598.76 |
100 + | $53.889 | $538.89 |
*price indicative
- RS Stock No.:
- 205-3699
- Mfr. Part No.:
- 65501710515301
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Wurth Elektronik e RG-316/U flexible coaxial cable has length up to 152.4 mm. The cable has braided shielding. It has 4 GHz operating frequency range.
Operating temperature range is from -65 °C to +165 °C
RoHS compliant
REACh compliant
RoHS compliant
REACh compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Terminated |
Connector 1 | SMA |
Connector 2 | MCX |
Coaxial Type | RG316/U |
Connector 1 Gender | Female |
Connector 2 Gender | Male |
Connector 2 Orientation | Right Angle |
Outer Diameter | 2.49mm |
Characteristic Impedance | 50 Ω |
Attenuation | 1 dB |
Length | 152.4mm |
Maximum Operating Temperature | +155°C |
Standards Met | REACH |
Minimum Operating Temperature | -55°C |
Shielding | Braid |
Insulation Material | PTFE |
Conductor Material | Beryllium Copper |
Operating Temperature Range | -55 → +155 °C |
Series | WR-CXASY |
