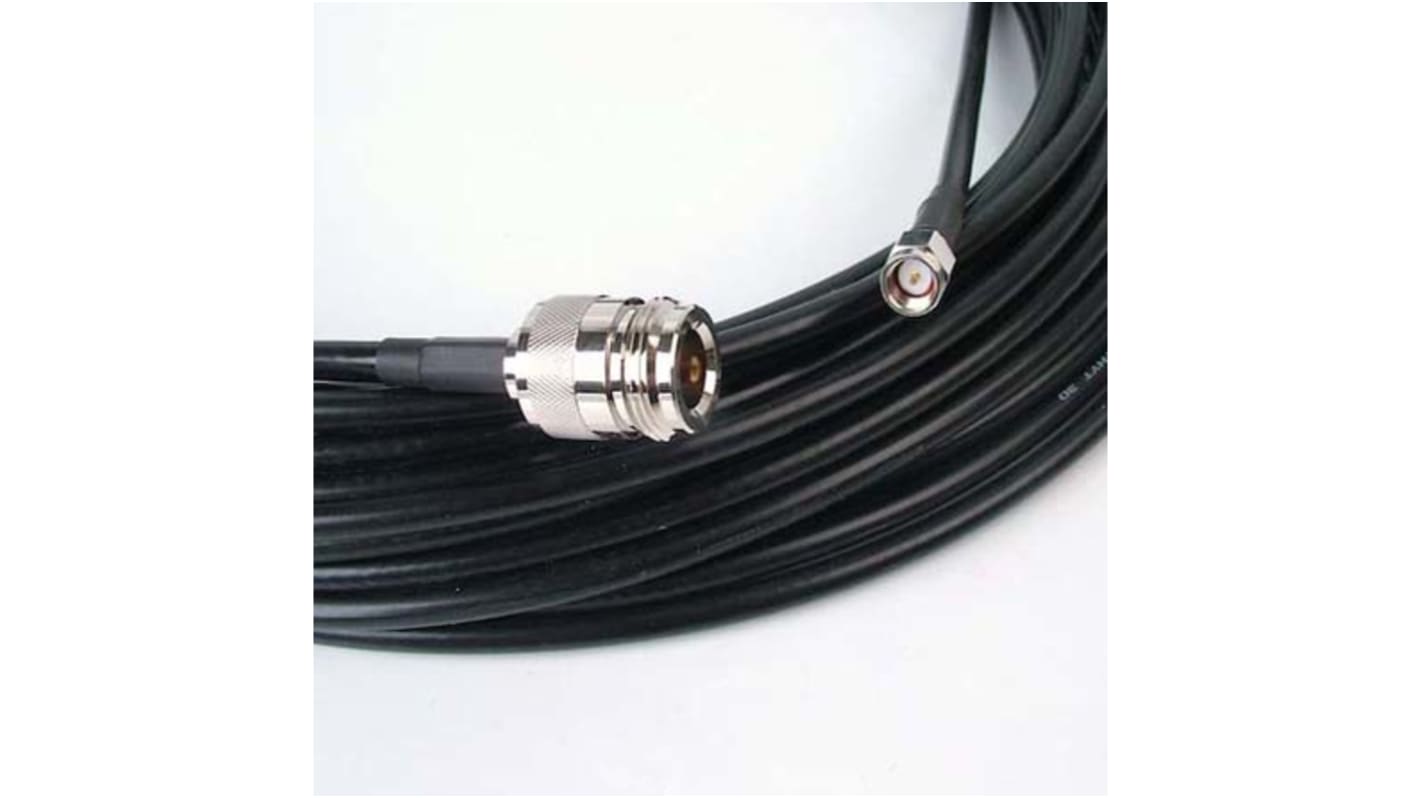

Siretta ASM Series Female N Type to Male SMA Coaxial Cable, 15m, LLC200A Coaxial, Terminated
- RS Stock No.:
- 140-8019
- Mfr. Part No.:
- ASMN1500A058L13
- Brand:
- Siretta
6 In Global stock for delivery within 10 working day(s)
Price (ex. GST) 1 Bag of 1
$114.46
(exc. GST)
$125.91
(inc. GST)
Bag(s) | Per Bag |
---|---|
1 - 4 | $114.46 |
5 + | $103.01 |
- RS Stock No.:
- 140-8019
- Mfr. Part No.:
- ASMN1500A058L13
- Brand:
- Siretta
Technical data sheets
Legislation and Compliance
Product Details
SMA Male to N-Type Female LLC200A Coaxial Cables, Siretta
Available in two cable lengths with an SMA Male connector and an N-Type Female connector:
ASMN500A058L13 - 5 m cable (124-8842)
ASMN1000A058L13 - 10 m cable (124-8843)
ASMN1500A058L13 - 15 m cable (140-8019)
ASMN2000A058L13 - 20 m cable (140-8020)
Cable Specifications
Impedance: 50 Ω
Loss dB/M @ 1.8 GHz: 0.52, @ 2.1 GHz: 0.64
Cable: LLC200A
Operating Frequencies: Up to 6 GHz
Dimensions
Core: 0.94 mm copper wire
Insulator: 2.79 mm GAS-FPE
Shield: tinned copper braid
Jacket: 4.95 mm PVC
ASMN500A058L13 - 5 m cable (124-8842)
ASMN1000A058L13 - 10 m cable (124-8843)
ASMN1500A058L13 - 15 m cable (140-8019)
ASMN2000A058L13 - 20 m cable (140-8020)
Cable Specifications
Impedance: 50 Ω
Loss dB/M @ 1.8 GHz: 0.52, @ 2.1 GHz: 0.64
Cable: LLC200A
Operating Frequencies: Up to 6 GHz
Dimensions
Core: 0.94 mm copper wire
Insulator: 2.79 mm GAS-FPE
Shield: tinned copper braid
Jacket: 4.95 mm PVC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Siretta Coaxial Cables
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Terminated |
Connector 1 | N Type |
Connector 2 | SMA |
Coaxial Type | LLC200A |
Connector 1 Gender | Female |
Connector 2 Gender | Male |
Outer Diameter | 5mm |
Characteristic Impedance | 50 Ω |
Attenuation | 0.15 dB |
Length | 15m |
Sheath Colour | Black |
Conductor Strand Type | Solid |
Sheath Material | PVC |
Shielding | Tinned Copper Braid |
Insulation Material | Foam PE |
Conductor Material | Copper |
Series | ASM |
Size of Strands | 10.2 mm |
