Texas Instruments CDCM61004RHBT PLL Frequency Synthesiser 4 32-Pin 3.6 V VQFN
- RS Stock No.:
- 817-5994
- Mfr. Part No.:
- CDCM61004RHBT
- Brand:
- Texas Instruments

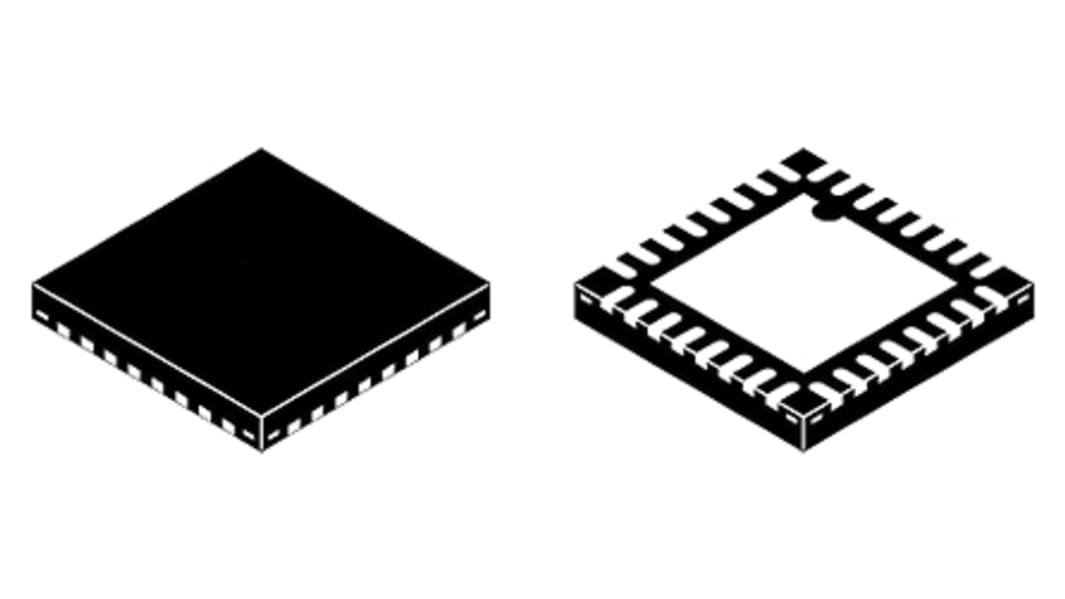

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 1 unit)*
$18.14
(exc. GST)
$19.95
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 62 | $18.14 |
| 63 - 124 | $17.67 |
| 125 + | $17.41 |
*price indicative
- RS Stock No.:
- 817-5994
- Mfr. Part No.:
- CDCM61004RHBT
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | PLL Frequency Synthesiser | |
| Maximum Output Frequency | 683.264MHz | |
| Output Logic Level | CMOS | |
| Mount Type | Surface | |
| Package Type | VQFN | |
| Pin Count | 32 | |
| Number of Outputs | 4 | |
| Maximum Input Frequency | 28.47MHz | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Input Logic Level | CMOS | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Length | 5.15mm | |
| Series | CDCM61004 | |
| Height | 0.95mm | |
| Width | 5.15 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type PLL Frequency Synthesiser | ||
Maximum Output Frequency 683.264MHz | ||
Output Logic Level CMOS | ||
Mount Type Surface | ||
Package Type VQFN | ||
Pin Count 32 | ||
Number of Outputs 4 | ||
Maximum Input Frequency 28.47MHz | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Input Logic Level CMOS | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Length 5.15mm | ||
Series CDCM61004 | ||
Height 0.95mm | ||
Width 5.15 mm | ||
Automotive Standard No | ||
Clock Generators, Texas Instruments
Clock Generators/Buffers
