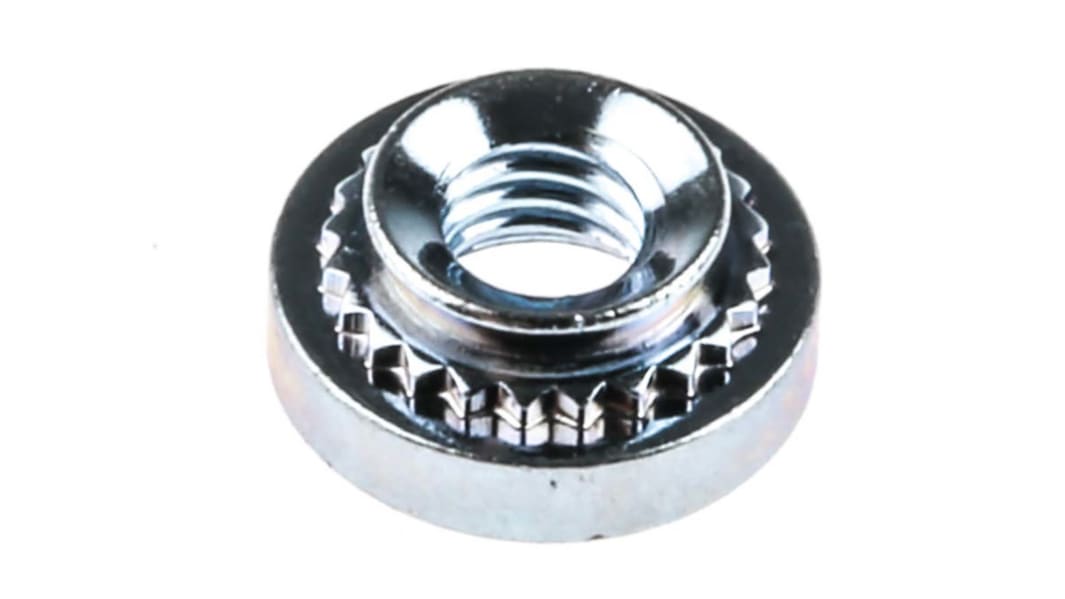

RS PRO Passivated Zinc Plated Steel Clinch Nut, Metric

View all Clinch Nuts
Bulk discount available

Subtotal (1 bag of 50 units)*

$10.68

(exc. GST)

$11.75

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 13 unit(s) shipping from 02 February 2026
  • Plus 547 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4$10.68$0.214
5 +$8.78$0.176

*price indicative

RS Stock No.:
827-603
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Clinch Nut

Size

M3 x 2

Thread

Metric

Fixing Hole Diameter

4.75mm

Outside Diameter

7.1 mm

Material

Steel

Finish

Passivated Zinc Plated

Maximum Thickness of Material

2.3mm

Minimum Thickness of Material

1.5mm

Depth

1.6mm

Standards/Approvals

RoHS

COO (Country of Origin):
GB

RS PRO Self-Clinching Nuts


RS PRO range of self-clinching nuts which feature a strong thread and come in a wide range of thread sizes. These clinch nuts are suitable for use as sheet metal fasteners.

A clinch nut is usually installed into aluminium, steel or stainless-steel sheets and can also be known as a self-clinching nut or a flush nut. These nuts are easy to use and leave a flush finish with the sheet of metal. Self-clinching nuts are installed using a parallel squeezing force so access to both sides of the panel is needed.

Options include:

827-596 - self clinching nut, No.1 x M3

827-603 - self clinching nut, No.2 x M3

827-619 - self clinching nut, No.3 x M3

827-625 - self clinching nut, No.0 x M4

827-631 - self clinching nut, No.1 x M4

827-647 - self clinching nut, No.2 x M4

827-653 - self clinching nut, No.1 x M5

827-669 - self clinching nut, No.2 x M5

827-675 - self clinching nut, No.1 x M6

Features and Benefits:


Self-Clinching Nuts in various thread sizes - provide strong reusable female threads in panels

Case hardened mild steel, zinc plated and passivated to BS3382

Self-clinching nuts should be assembled using a press tool or similar non-shock device

Unsuitable for use with sheet materials having a hardness of more than 80Rb (150VPN)

Typical Applications:


Clinch nuts are a type of fastener that can be used in a variety of applications, please see below some of the most common.

White goods

Telecommunications

The automotive industry

Audio

Electrical

Enclosures

FAQS

How do clinch nuts work?

A clinch nut can be installed by being placed in a properly sized hole, then apply a parallel squeezing force to the head of the nut. After this action, the parenting material flows into the specially designed under head configuration which results in a load bearing and torque resistant joint.
