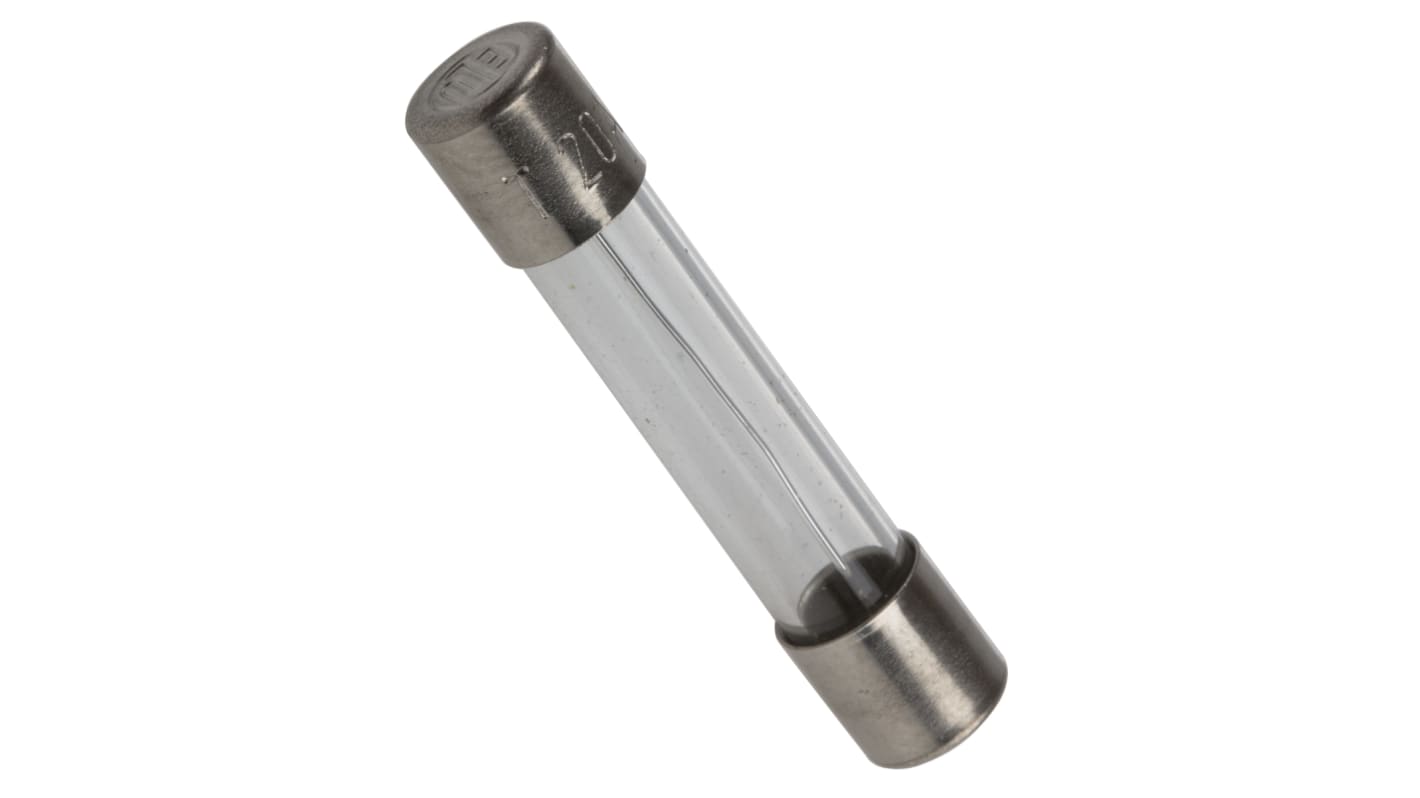

    SIBA 20A T Glass Cartridge Fuse, 6.3 x 32mm

    RS Stock No.:
    418-9646
    Mfr. Part No.:
    70-059-61 20A
    Manufacturer:
    SIBA
    SIBA
    View all Cartridge Fuses
    110 In AU stock for next working day delivery
    4500 In Global stock for delivery within 10 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each (In a Pack of 10)

    $1.333

    (exc. GST)

    $1.466

    (inc. GST)

    unitsPer unitPer Pack*
    10 - 490$1.333$13.33
    500 - 2490$1.325$13.25
    2500 +$1.308$13.08
    *price indicative
    RS Stock No.:
    418-9646
    Mfr. Part No.:
    70-059-61 20A
    Manufacturer:
    SIBA
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Glass Body - (T) LBC


    Glass tube fuses are available in with fast acting and time delay characteristics which makes them suitable for a variety of different applications.


    Glass cartridge fuses are ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.

    Features:
    Glass cartridge
    6.3mm x 21 mm cartridge size
    T Speed Rating
    Low Breaking Capacity

    Typical applications:
    Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps etc. They can be found in the following areas:
    Industrial
    Commercial
    Home/Residential
    Automotive

    Additional Information:
    What size is it?
    6.3 x 32mm is a miniature cartridge size. Miniature fuses are ideal for the protection of electrical appliances, electronic equipment and component parts.

    Why choose a glass fuse?
    Glass and ceramic fuses have similar properties. However you may choose a glass fuse as it enables you to see the inside of the fuse. Therefore it is easier to determine whether the fuse has blown.

    What are fuses used for?

    • For the protection of components and equipment from costly damage caused by over-current.
    • To isolate sub-systems from the main system once a fault has appeared

    What is an over-current?
    It is a setting where a circuit experiences a current that is higher than the normal operating current.

    What Speed is it?
    This particular fuse is “T” speed rated which means it is a slow acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

    What is Breaking Capacity?
    Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular fuse is LBC (Low Breaking Capacity).


    Note

    All fuses 6.3mm (0.25in) diameter and 32mm (1.25in) in length.

    Approvals

    -


    Specifications

    AttributeValue
    Current Rating20A
    Fuse Size6.3 x 32mm
    Fuse SpeedT
    Voltage Rating250V ac
    Body MaterialGlass
    SeriesGZ
