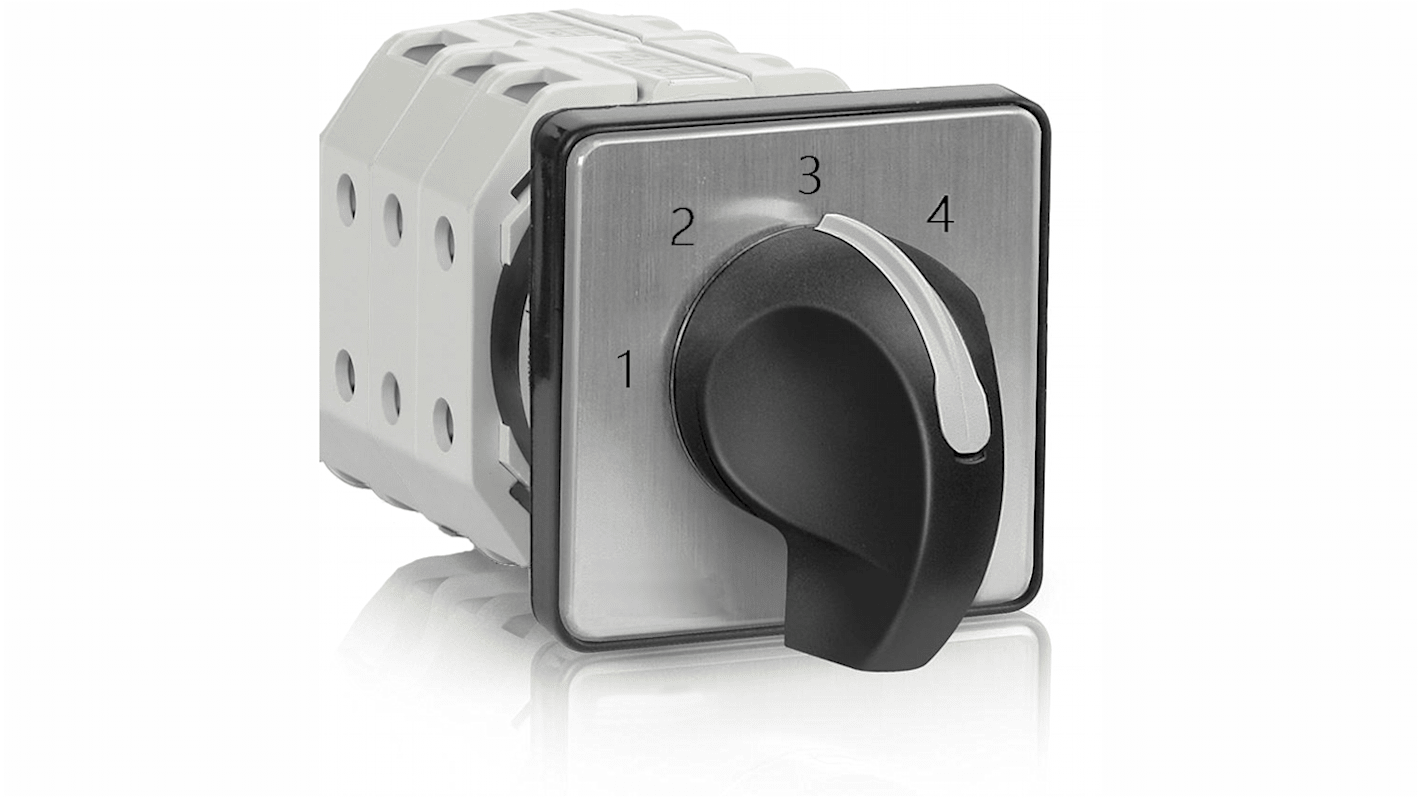

RS PRO, SP 4 Position 45° Multi Step Cam Switch, 500V ac, 16A, Knob Actuator
- RS Stock No.:
- 265-7671
- Brand:
- RS PRO
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$50.41
(exc. GST)
$55.45
(inc. GST)
| Units | Per unit |
| 1 + | $50.41 |
- RS Stock No.:
- 265-7671
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details
RS PRO Rotary Cam Switch – Single Phase, 500 V ac, 1NO
When it comes to industrial controls, there's no room for error. That's why you need the reliability and performance of RS PRO Rotary Cam Switches. Our switches can handle the most hazardous machinery in industrial, trade, building, and engineering applications. With multistep and changeover capabilities, as well as motor starting options, our switches are versatile enough to meet your needs across a wide range of applications.
Why Would You Choose a Single-Phase Cam Switch?
The RS PRO single-phase rotary cam switch is a type of rotary cam switch designed for single-phase electrical systems. It is used to control and switch electrical circuits in single-phase applications, where the power supply consists of a single alternating current (AC) waveform.
Features and Benefits
- Single Phase
- Ideal for controlling many different circuits with a single switch
- Each cam switch offers several different positions that can be applied to a variety of different applications and tasks
- Durable, withstand even the toughest of environments
Specification
- 16 Amp 500VAC
- Hole fixing
- Angle of throw: 45 °
- Max. Current: 16A
- Normal State Configuration: 1NO
- Pole and Throw Configuration: 1P
- Plate Size 50 x 50mm
Applications
- Control panels
- Lighting control
- HVAC systems
- Power distribution
Cam Switches
RS PRO offers a comprehensive range of Cam Switches. Browse our offering using the improved filters to locate your ideal solution.
Specifications
Attribute | Value |
|---|---|
| Cam Switch Type | Multi Step Cam Switch |
| Pole and Throw Configuration | SP |
| Normal State Configuration | 1NO |
| Electrical Phase | 1 |
| Maximum Current | 16A |
| Maximum Voltage | 500V ac |
| Number of Positions | 4 |
| Terminal Type | Screw |
| Angle of Throw | 45° |
| Length | 50mm |
| Width | 50mm |
| Depth | 85.5mm |
| Actuator Type | Knob |
| Dimensions | 50 x 50 x 85.5mm |
