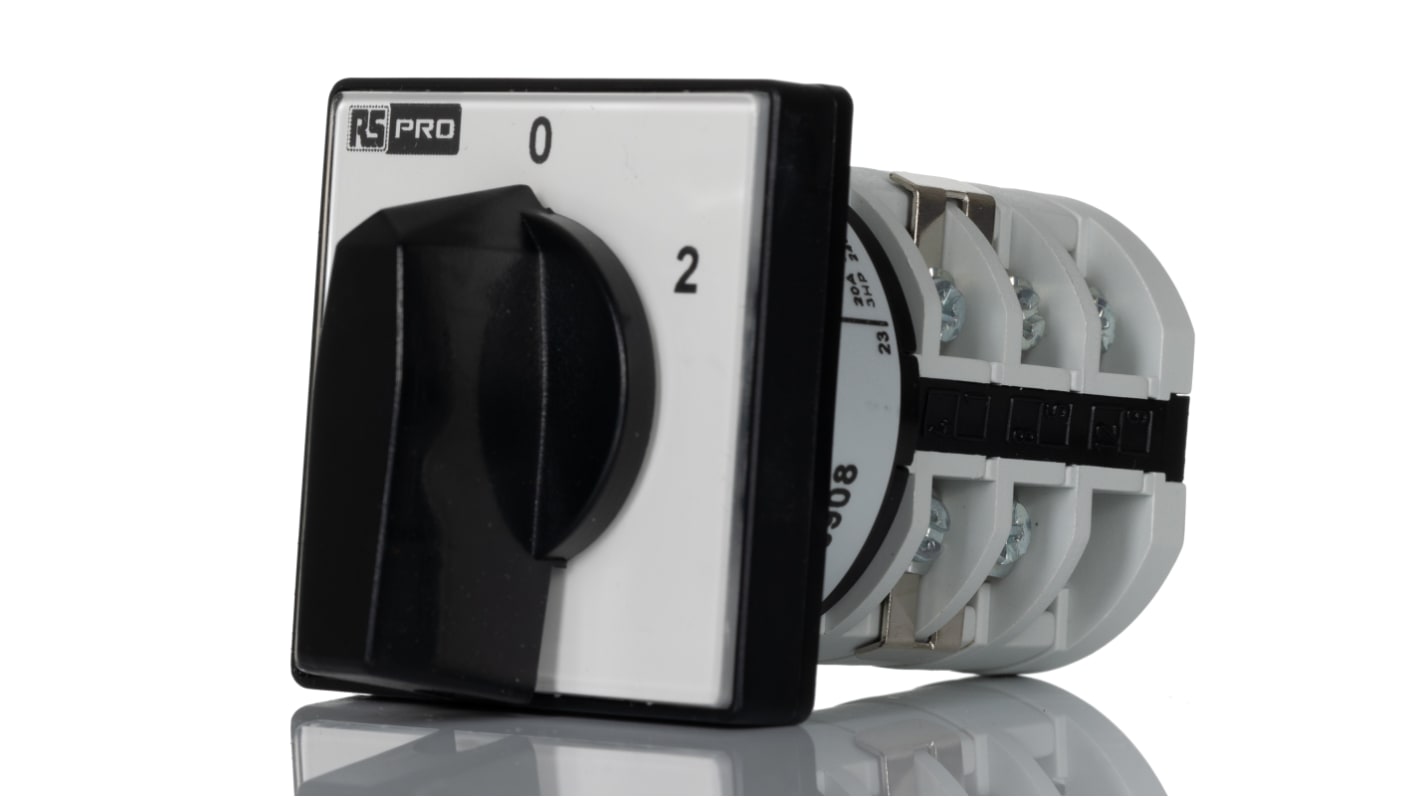

RS PRO, 3P 3 Position Motor Reversing Cam Switch, 690 V, 20A

RS Stock No.:: 208-3908
Brand:: RS PRO

RS PRO, 3P 3 Position Motor Reversing Cam Switch, 690 V, 20A

Subtotal (1 unit)**

$83.74

(exc. GST)

$92.11

(inc. GST)

6 In AU stock for next working day delivery*

141 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 +	$83.74

**price indicative

RS Stock No.:: 208-3908
Brand:: RS PRO

RS PRO Rotary Cam Switches

Introducing the range of RS PRO Rotary Cam Switches, ideal for use in industrial, trade, building, or engineering applications. Each switch from RS PRO offers reliability and optimum performance for industrial controls on hazardous machinery where safe operation is essential. They are designed for circuit connection, multistep, changeover, switching on and off as well as motor starting, making them versatile for use across a wide range of applications in a variety of different industries.

Features and Benefits:

The range of RS PRO rotary cam switches are ideal for controlling many different circuits with a single switch

Each cam switch offers several different positions that can be applied to a variety of different applications and tasks

Thanks to the door panel mounting with 4 screw fixings, each switch is quick and easy to install with minimal downtime

Designed to be durable and withstand even the toughest of environments, the switches are ideal for light to heavy-duty applications

The operating temperature ranges -25 to +55°C

Applications:

Rotary cam switches are highly customisable products that can be used in a variety of environments where multiple switching operations are required, both for main circuits and auxiliary circuits. They are often used to directly start and stop motors within industrial and automation processes and machinery from a single switch to ensure safety and responsible working and can easily be configured in a multitude of contact sequences to suit the operator’s needs. Rotary cam switches can be used for:

Dangerous equipment such as motors that require human intervention to operate

Public buildings to control lighting in restrooms, corridors, etc

Approvals & Certification:

IEC 60947

UL 508

C22.2 No.14

IP20 rated (Frontal Protection)

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cam Switch Type	Motor Reversing Cam Switch
	Pole and Throw Configuration	3P
	Normal State Configuration	5NO
	Electrical Phase	3
	Maximum Current	20A
	Maximum Voltage	690 V
	Number of Positions	3
	Length	48mm
	Width	48mm
	Dimensions	48 x 48mm

	Select all
	Brand RS PRO
	Cam Switch Type Motor Reversing Cam Switch
	Pole and Throw Configuration 3P
	Normal State Configuration 5NO
	Electrical Phase 3
	Maximum Current 20A
	Maximum Voltage 690 V
	Number of Positions 3
	Length 48mm
	Width 48mm
	Dimensions 48 x 48mm
