Product Details

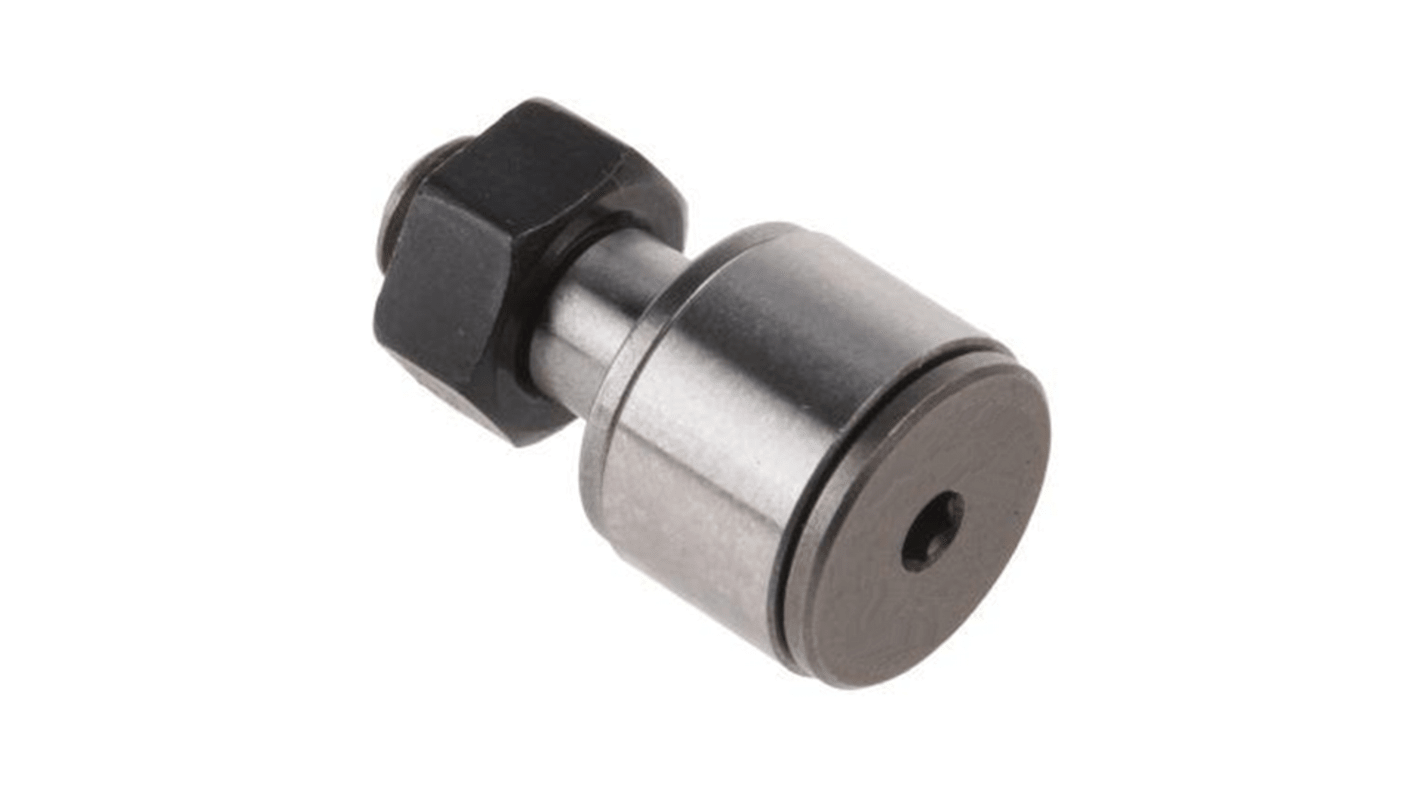

RS PRO Cam Follower, Thrust
Introducing the range of RS PRO Cam Followers, ideal for applications that require an effective way of receiving axial loads, at the same time preventing friction and wear on a sliding surface through contact from the cam to the follower. This bearing unit is able to absorb the impact load because of the fact that the radial gap is much smaller compared to other needle roller bearings, while offering optimum performance and smooth motion transfer. In addition to this, the design of the needle roller bearing unit has a thread, so that the cam follower can be quickly and securely attached by the hexagonal nut, onto the machine component, making it adaptable, and quick and easy to install.
Features and Benefits:
- The high-quality RS PRO Cam Follower is ideal for applications that need an effective way of receiving axial loads, at the same time preventing friction and wear on a sliding surface through contact from the cam to the follower
- The design of the thrust cam follower ensures that it has a high wear and heat resistance between the outer ring and the stud head, as well as being able to absorb higher impact loads, without impacting the overall performance
- Each housing comes with thread and hexagonal nut, ensuring that the cam follower can quickly and easily be installed
- This design also offers quicker and easier installation because only one unit needs to be installed, rather than assembling each part individually
Applications:
A cam follower is a type of bearing that has been designed specifically to be used in a wide range of roller track and mechanical cam applications. They enable the movement of the cam by creating contact with the follower in order to transfer rotary movement into linear movement. Without a cam follower, this motion would not be possible. Cam followers, track followers and cam follower bearings are commonly found in the following industries:
- Agriculture
- Industrial Manufacturing
- Construction
- Materials Handling
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Roller Diameter | 10mm |
| Roller Length | 18mm |
| Type | Miniature Thrust Cam Follower |
| Bore Size | 5mm |
| Static Load Rating | 1860N |
| Dynamic Load Rating | 1860N |
