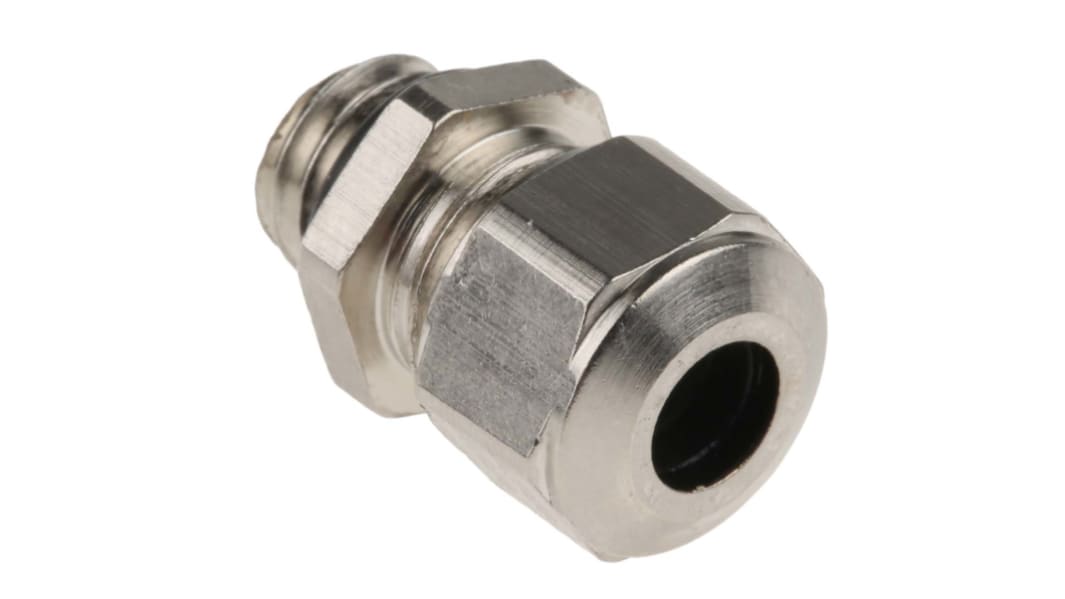

SES Sterling A1 Series Metallic Nickel Plated Brass Cable Gland, M8 Thread, 3.5mm min., 5mm max., IP68, IP69K

RS Stock No.:: 364-6952
Distrelec Article No.:: 303-99-756
Mfr. Part No.:: A1000.08.050
Brand:: SES Sterling

SES Sterling A1 Series Metallic Nickel Plated Brass Cable Gland, M8 Thread, 3.5mm min., 5mm max., IP68, IP69K

1 / 3

Bulk discount available

Subtotal (1 unit)**

$11.75

(exc. GST)

$12.93

(inc. GST)

54 In AU stock for next working day delivery*

3265 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 4	$11.75
5 - 9	$11.63
10 +	$11.52

**price indicative

RS Stock No.:: 364-6952
Distrelec Article No.:: 303-99-756
Mfr. Part No.:: A1000.08.050
Brand:: SES Sterling

Sealed Cable Glands - IP 68

From SES, the A1 series of IP68 metal cable glands designed for use with unarmoured electrical cable. Rugged in construction the tough cable glands provide excellent cable retention and optimal strain relief ensuring a fully watertight seal is maintained at all times. Constructed from nickel plated brass with a double entry seal the A1 series have full-range tightening, providing excellent environmental protection for the harshest of applications.

Features and benefits

The two-piece seals provide a wide tightening range.
Once the cable has been fixed, it is tear-resistant and waterproof.
Short connection thread.
No sleeve.

Applications

Cable glands are used in all manner of industrial applications to terminate and seal cable into electrical equipment, panels, and enclosures. They are vital components, ensuring cables are fitted and secured correctly. Some of the most common areas are:

• Laboratory probes
• Measuring equipment
• Robotics
• Food and beverage
• Alarm systems

Environment

The SES A1 series of metal cable glands have an ingress rating of IP68. This means the cable glands are protected against dust and particles and are water-proof even in shallow submersion. This makes the A1 series of cable glands ideal for outdoor harsh environments.

• Part number 364-6902 is an M6 gland with 2 to 2.5 mm cable acceptance
• Part number 364-6924 is an M6 gland with a 2.5 to 3 mm cable acceptance
• Part number 364-6952 is an M8 gland with a 3.5 to 5 mm cable acceptance
• Part number 364-6974 is an M10 gland with a 4 to 6 mm cable acceptance
• Part number 161-2878 is a PG9 gland with a 6 to 8.8 mm cable acceptance
• Part number 195-1511 is a PG11 gland with a 5 to 12 mm cable acceptance
• Part number 161-2884 is a PG13 gland with a 9 to 11 mm cable acceptance
• Part number 204-7168 is a PG16 gland with an 8 to 15 mm cable acceptance
• Part number 204-7174 is a PG21 gland with a 13 to 16.5 mm cable acceptance
• Part number 205-1381 is a PG29 gland with an 18 to 25.5 mm cable acceptance

Approvals

EN50262 (metric thread)

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SES Sterling
	Thread Size	M8
	Maximum Cable Diameter	5mm
	Minimum Cable Diameter	3.5mm
	Material	Nickel Plated Brass
	Colour	Metallic
	Series	A1
	IP Rating	IP68, IP69K
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+100°C
	Standards Met	cULus

	Select all
	Brand SES Sterling
	Thread Size M8
	Maximum Cable Diameter 5mm
	Minimum Cable Diameter 3.5mm
	Material Nickel Plated Brass
	Colour Metallic
	Series A1
	IP Rating IP68, IP69K
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +100°C
	Standards Met cULus
