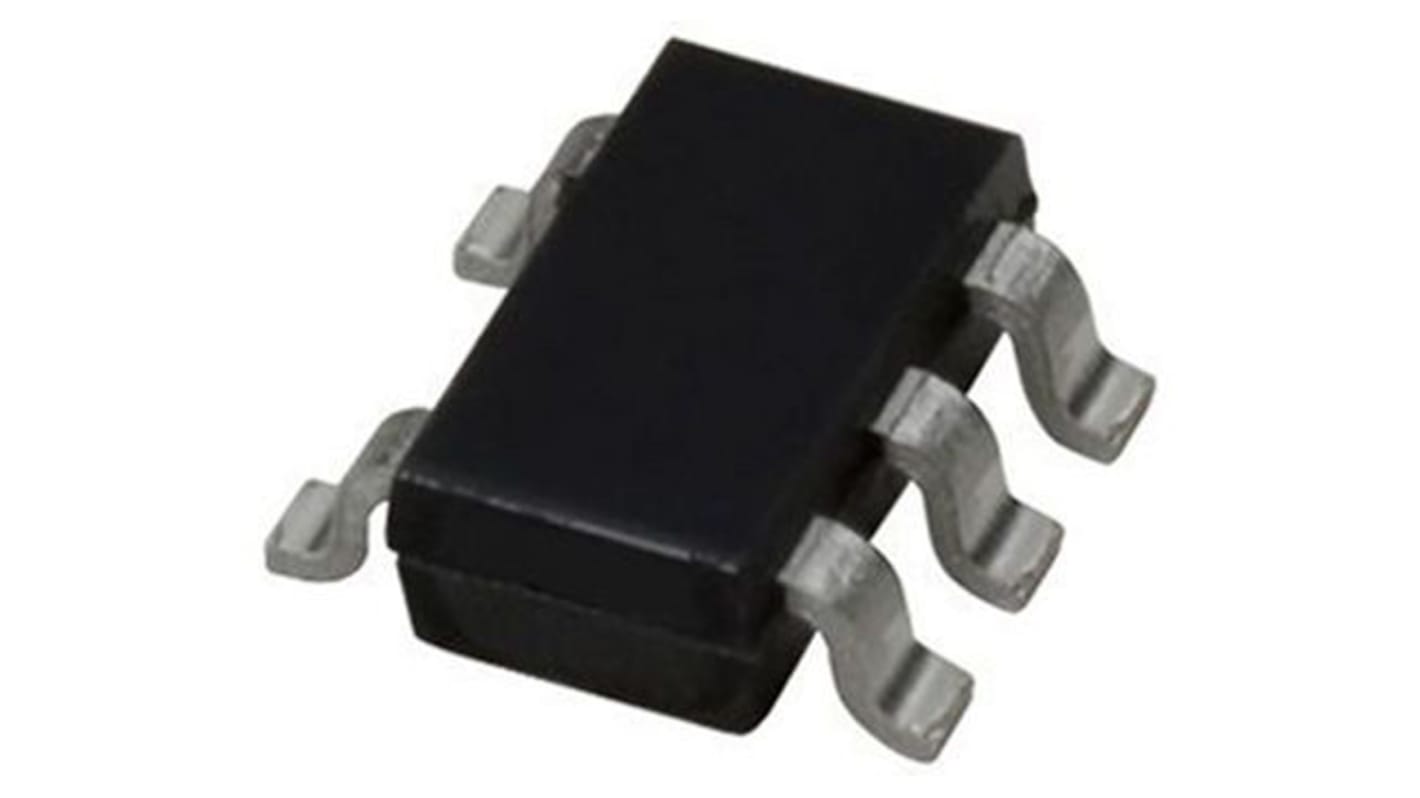

Texas Instruments SN74LVC1T45DCKR, 1 Bus Transceiver, , 1-Bit Non-Inverting LVTTL, 6-Pin SC-70

RS Stock No.:: 796-8262
Mfr. Part No.:: SN74LVC1T45DCKR
Brand:: Texas Instruments

Texas Instruments SN74LVC1T45DCKR, 1 Bus Transceiver, , 1-Bit Non-Inverting LVTTL, 6-Pin SC-70

20 In Global stock for delivery within 5 working day(s)

30 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 10)

$0.829

(exc. GST)

$0.912

(inc. GST)

Units	Per unit	Per Pack*
10 - 740	$0.829	$8.29
750 - 1490	$0.827	$8.27
1500 +	$0.821	$8.21
*price indicative

RS Stock No.:: 796-8262
Mfr. Part No.:: SN74LVC1T45DCKR
Brand:: Texas Instruments

Technical data sheets

ESD Control Selection Guide V1

Legislation and Compliance

Product Details

74LVC Family Bus Transceivers, Texas Instruments

Texas Instruments range of Bus Transceivers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.

Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

74LVC Family

Specifications

Attribute	Value
Logic Family	74LVC
Logic Function	Bus Transceiver
Number of Elements per Chip	1
Number of Channels per Chip	1
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SC-70
Pin Count	6
Input Level	CMOS, LVTTL
Output Level	LVTTL
Maximum High Level Output Current	-32mA
Maximum Low Level Output Current	32mA
Maximum Propagation Delay Time @ Maximum CL	3.9 ns@ 5 V
Maximum Operating Temperature	+85 °C
Length	2.15mm
Maximum Operating Supply Voltage	5.5 V
Width	1.4mm
Dimensions	2.15 x 1.4 x 1mm
Minimum Operating Supply Voltage	1.65 V
Propagation Delay Test Condition	15pF
Height	1mm
Minimum Operating Temperature	-40 °C
