Texas Instruments, LM2591HVS-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 1A Adjustable 5-Pin, D2PAK

RS Stock No.:: 920-3545
Mfr. Part No.:: LM2591HVS-ADJ/NOPB
Brand:: Texas Instruments

Texas Instruments, LM2591HVS-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 1A Adjustable 5-Pin, D2PAK

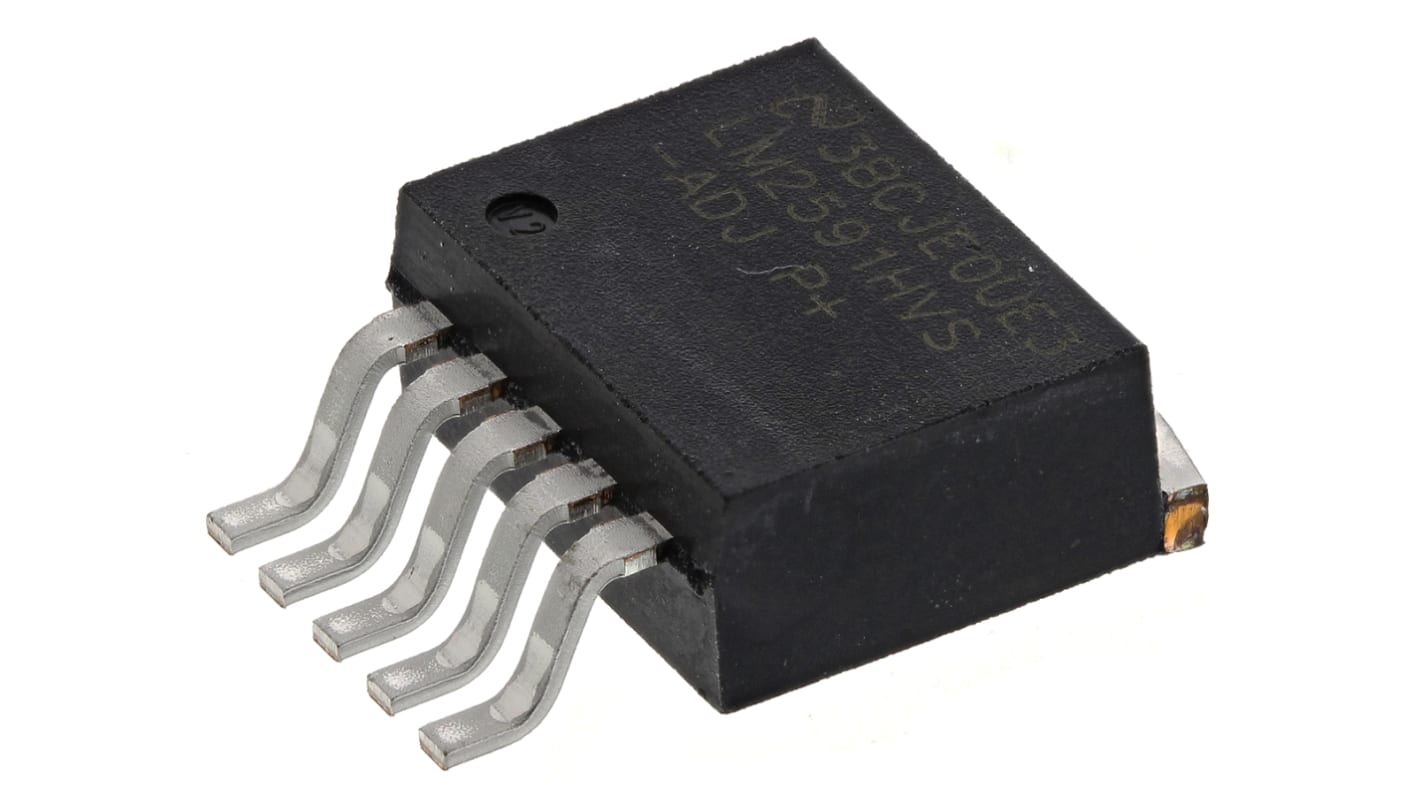

This image is representative of the product range

Available for back order.

Price (ex. GST) Each (In a Tube of 45)

$9.458

(exc. GST)

$10.404

(inc. GST)

Units	Per unit	Per Tube*
45 - 45	$9.458	$425.61
90 - 135	$9.221	$414.945
180 +	$9.079	$408.555

*price indicative

RS Stock No.:: 920-3545
Mfr. Part No.:: LM2591HVS-ADJ/NOPB
Brand:: Texas Instruments

Attribute	Value
Maximum Output Current	1A
Maximum Output Voltage	57 V
Regulator Function	Buck Controller
Minimum Output Voltage	1.2 V
Minimum Input Voltage	4.5 V
Maximum Input Voltage	60 V
Output Type	Adjustable
Mounting Type	Surface Mount
Number of Outputs	1
Pin Count	5
Maximum Switching Frequency	173 kHz
Package Type	D2PAK (TO-263)
Switching Regulator	Yes
Minimum Operating Temperature	-40 °C
Dimensions	10.16 x 8.64 x 4.57mm
Efficiency	76%
Width	8.64mm
Height	4.57mm
Maximum Operating Temperature	+125 °C
Length	10.16mm

Texas Instruments, LM2591HVS-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 1A Adjustable 5-Pin, D2PAK

SIMPLE SWITCHER® Step-Down Regulators, LM259x Series
