Texas Instruments, LMR14030SDDA Step-Down Switching Regulator, 1-Channel 3.5A Adjustable 8-Pin, SOIC

RS Stock No.:: 145-6281
Mfr. Part No.:: LMR14030SDDA
Brand:: Texas Instruments

Texas Instruments, LMR14030SDDA Step-Down Switching Regulator, 1-Channel 3.5A Adjustable 8-Pin, SOIC

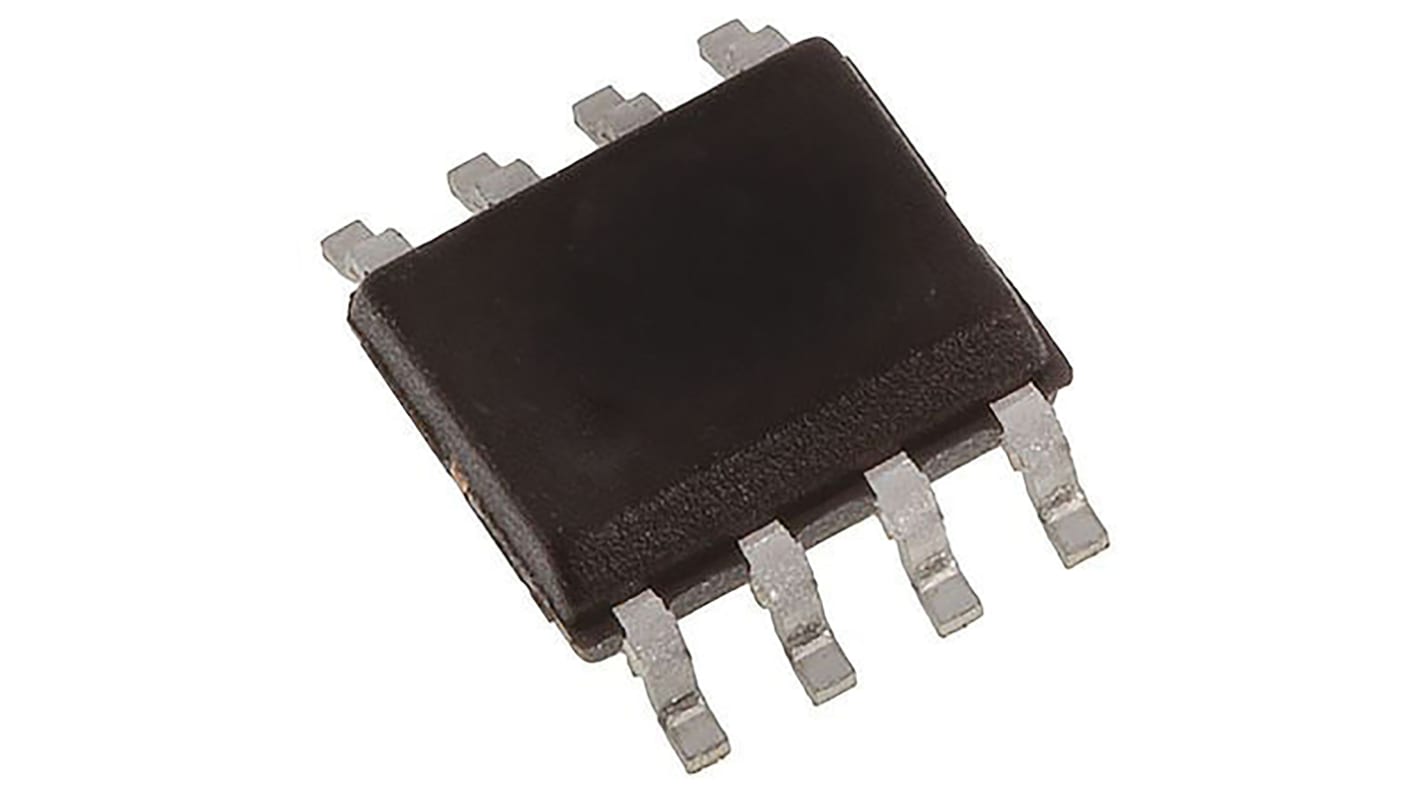

This image is representative of the product range

Available for back order.

Price (ex. GST) Each (In a Tube of 75)

$3.579

(exc. GST)

$3.937

(inc. GST)

Units	Per unit	Per Tube*
75 - 75	$3.579	$268.425
150 - 225	$3.517	$263.775
300 +	$3.452	$258.90

*price indicative

RS Stock No.:: 145-6281
Mfr. Part No.:: LMR14030SDDA
Brand:: Texas Instruments

COO (Country of Origin):: MY

Attribute	Value
Maximum Output Current	3.5A
Maximum Output Voltage	28 V
Regulator Function	Step Down
Minimum Output Voltage	0.8 V
Minimum Input Voltage	4 V
Maximum Input Voltage	40 V
Output Type	Adjustable
Mounting Type	Surface Mount
Number of Outputs	1
Maximum Switching Frequency	2.5 MHz
Pin Count	8
Package Type	SOIC
Switching Regulator	Yes
Length	5mm
Dimensions	5 x 4 x 1.55mm
Minimum Operating Temperature	-40 °C
Width	4mm
Height	1.55mm
Maximum Operating Temperature	+125 °C

Texas Instruments, LMR14030SDDA Step-Down Switching Regulator, 1-Channel 3.5A Adjustable 8-Pin, SOIC

LMR Nano SIMPLE SWITCHER® Step-Down Regulator Series
