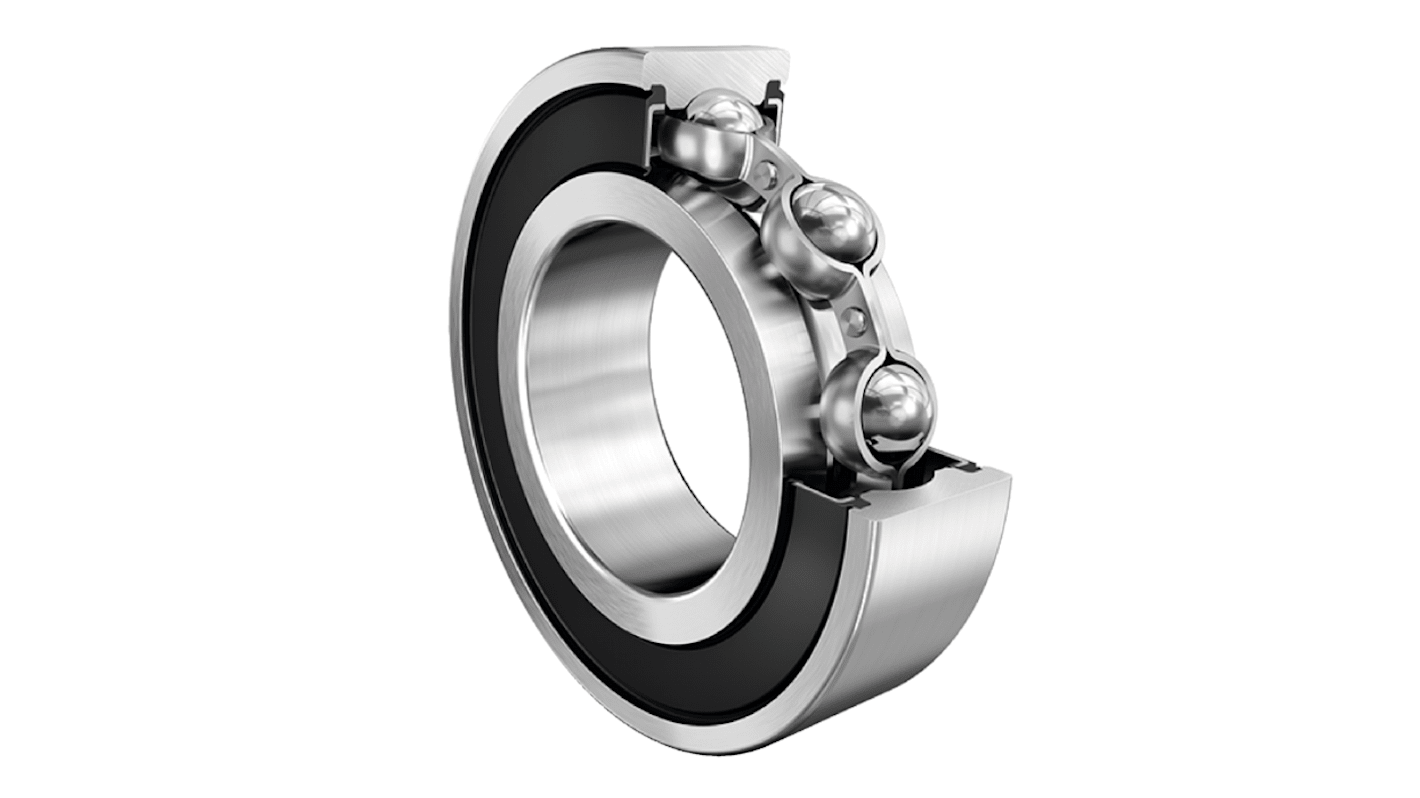

FAG 61808-2RSR-HLC Single Row Deep Groove Ball Bearing- Both Sides Sealed 40mm I.D, 52mm O.D
- RS Stock No.:
- 260-0671
- Mfr. Part No.:
- 61808-2RSR-HLC
- Brand:
- FAG
17 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$61.60
(exc. GST)
$67.76
(inc. GST)
Units | Per unit |
|---|---|
| 1 + | $61.60 |
- RS Stock No.:
- 260-0671
- Mfr. Part No.:
- 61808-2RSR-HLC
- Brand:
- FAG
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
The FAG deep groove ball bearing has 40 mm bore diameter and 7 mm width with 16.2 calculation factor.
Operating temperature -30 to 100 °C
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 40mm |
| Outside Diameter | 52mm |
| Race Width | 7mm |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing |
| Sealing Arrangement | Both Sides Sealed |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Number of Rows | 1 |
| Static Load Rating | 4.18kN |
| Dynamic Load Rating | 4.93kN |
| Bore Type | Parallel |
| Bearing Series | 1 Extra Light Thrust |
| Partial Bearing Code | 61808 |
| Race Type | Plain |
