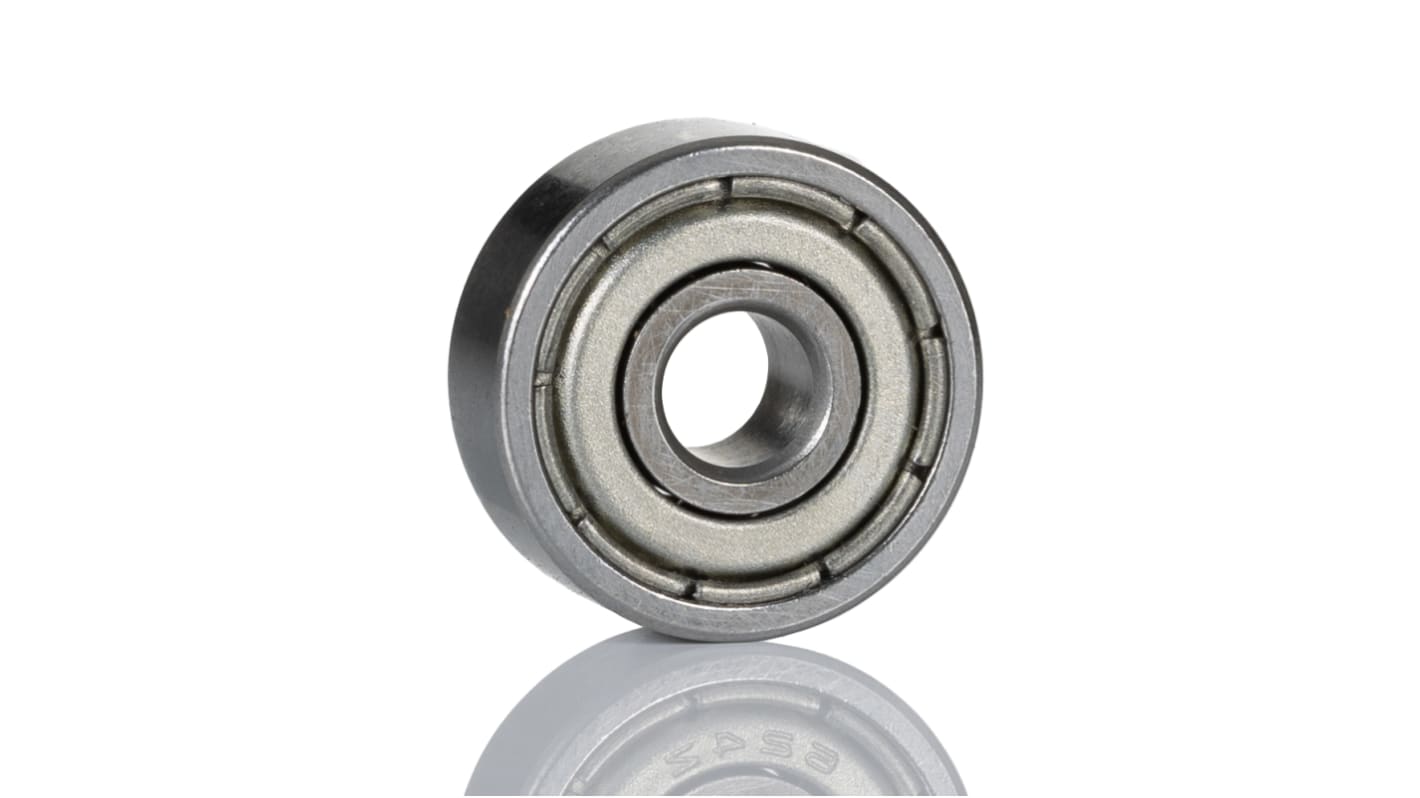

RS PRO 608-2Z/C3 1 Row Ball Bearing - 8 mm ID, 22 mm OD
- RS Stock No.:
- 188-3314
- Mfr. Part No.:
- 608-2Z/C3
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
$6.46
(exc. GST)
$7.11
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 11 unit(s) ready to ship
- Plus 601 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $6.46 |
| 13 - 64 | $6.34 |
| 65 + | $5.23 |
*price indicative
- RS Stock No.:
- 188-3314
- Mfr. Part No.:
- 608-2Z/C3
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ball Bearing | |
| Inside Diameter | 8 mm | |
| Outside Diameter | 22 mm | |
| Race Width | 7mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Race Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 1.37kN | |
| Dynamic Load Rating | 3.45N | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 38000rpm | |
| Distrelec Product Id | 30417070 | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ball Bearing | ||
Inside Diameter 8 mm | ||
Outside Diameter 22 mm | ||
Race Width 7mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
Race Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 1.37kN | ||
Dynamic Load Rating 3.45N | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 38000rpm | ||
Distrelec Product Id 30417070 | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
RS PRO 8 mm I.D Plain Deep Groove Ball Bearing, 22 mm O.D
Keep your engine running smoothly with this reliable plain deep-groove ball bearing from RS PRO. It consistently reduces friction in rotating joints and supports both radial and axial loads. This component is made to be suitable across commercial settings, including pharmaceutical production lines, pump-production facilities and printing firms.
You'll find synthetic rubber seals have been added to the metal component to stop dust and water getting inside your joint. These seals also ensure that the oil remains in the ball bearing, so the engine will run smoothly for longer. This component has been specially designed for use at high speeds for extended periods of time with no need for replacement, which saves maintenance hours.
This bearing is part of the RS PRO range, so it's been exhaustively tested for durability and consistency. It's typically used with moving parts such as machinery, gearboxes and centrifugal pumps.
Features and Benefits
• Deep groove ball bearing type
• Dynamic load rating of 3.45 Newtons (N)
• Shielded end type
• Inside diameter of 8 mm
• Outside diameter of 22 mm
• Plain race type
• Race width of 7 mm
• Static load rating of 1.37 Newtons (N)
Small Pack Size: 188-3314
Large Pack Size: 261-2603
