    Panasonic PCB Mount Automotive Relay, 12V dc Coil Voltage, 20A Switching Current, DPDT

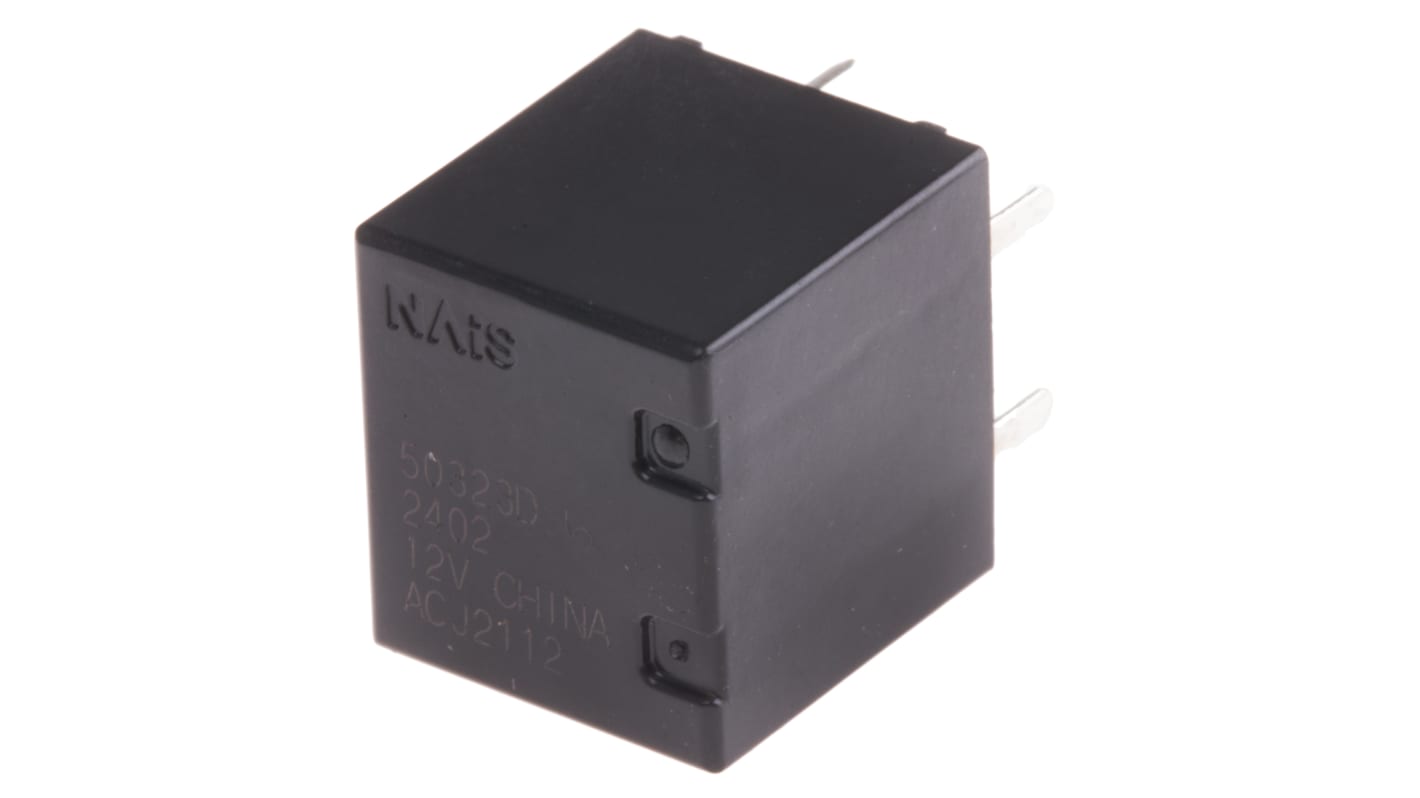

    This image is representative of the product range

    View this category
    Bulk discount available

    Subtotal (1 unit)**

    $8.53

    (exc. GST)

    $9.38

    (inc. GST)

    Add to Basket
    Select or type quantity
    1 In Global stock for delivery within 10 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per unit
    1 - 49$8.53
    50 - 249$8.39
    250 +$8.20

    **price indicative

    RS Stock No.:
    699-5715
    Mfr. Part No.:
    ACJ2112
    Brand:
    Panasonic
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Panasonic

    Coil Voltage

    12V dc

    Coil Power

    800mW

    Coil Resistance

    180 Ω

    Contact Configuration

    DPDT

    Number of Poles

    2

    Switching Current

    20A

    Maximum Switching Voltage DC

    14V dc

    Mounting Type

    PCB Mount

    Terminal Type

    Through Hole

    Isolation Coil To Contact

    500V rms

    Length

    12.2mm

    Minimum Operating Temperature

    -40°C

    Maximum Operating Temperature

    +85°C

    Height

    13.5mm

    Life

    100000 (Electrical) cycles, 10000000 (Mechanical) cycles

    Contact Material

    Silver Alloy

    Depth

    13.7mm
