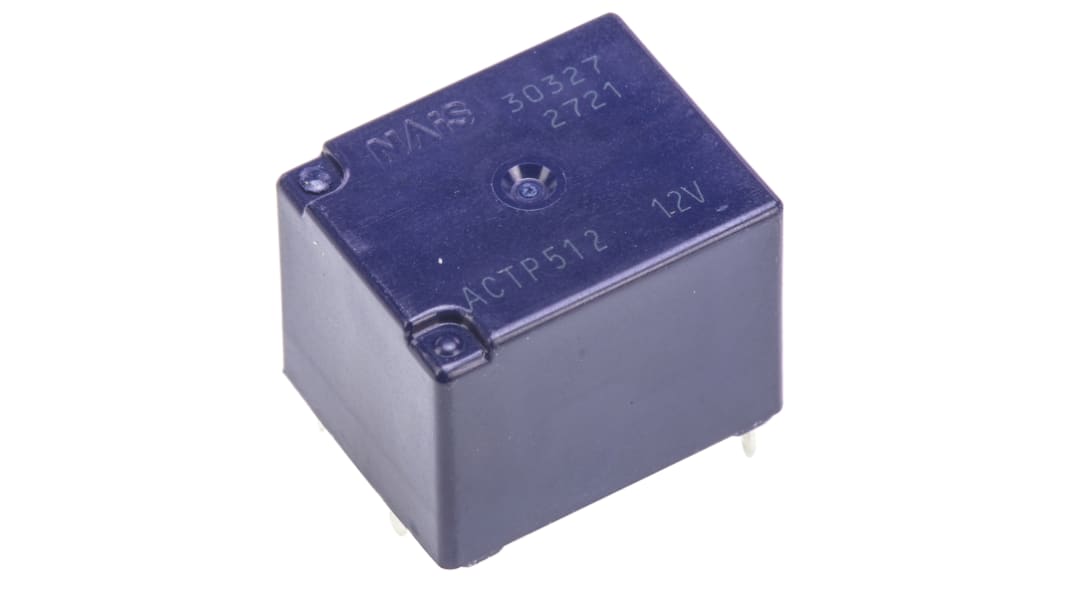

Panasonic PCB Mount Automotive Relay, 12V dc Coil Voltage, 30A Switching Current, DPDT
- RS Stock No.:
- 173-8882
- Mfr. Part No.:
- ACTP512
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 tube of 30 units)**
$263.94
(exc. GST)
$290.34
(inc. GST)
30 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $80.00 ex GST
Units | Per unit | Per Tube** |
---|---|---|
30 - 120 | $8.798 | $263.94 |
150 + | $7.918 | $237.54 |
**price indicative
- RS Stock No.:
- 173-8882
- Mfr. Part No.:
- ACTP512
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Coil Voltage | 12V dc | |
Coil Power | 1W | |
Coil Resistance | 144Ω | |
Contact Configuration | DPDT | |
Number of Poles | 2 | |
Switching Current | 30A | |
Maximum Switching Voltage DC | 14V dc | |
Mounting Type | PCB Mount | |
Terminal Type | Through Hole | |
Depth | 14mm | |
Height | 13.5mm | |
Length | 17.4mm | |
Isolation Coil To Contact | 500V rms | |
Minimum Operating Temperature | -40°C | |
Life | 1000000 (Mechanical) cycles, 50000 (Electrical) cycles | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver Alloy | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Coil Power 1W | ||
Coil Resistance 144Ω | ||
Contact Configuration DPDT | ||
Number of Poles 2 | ||
Switching Current 30A | ||
Maximum Switching Voltage DC 14V dc | ||
Mounting Type PCB Mount | ||
Terminal Type Through Hole | ||
Depth 14mm | ||
Height 13.5mm | ||
Length 17.4mm | ||
Isolation Coil To Contact 500V rms | ||
Minimum Operating Temperature -40°C | ||
Life 1000000 (Mechanical) cycles, 50000 (Electrical) cycles | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
