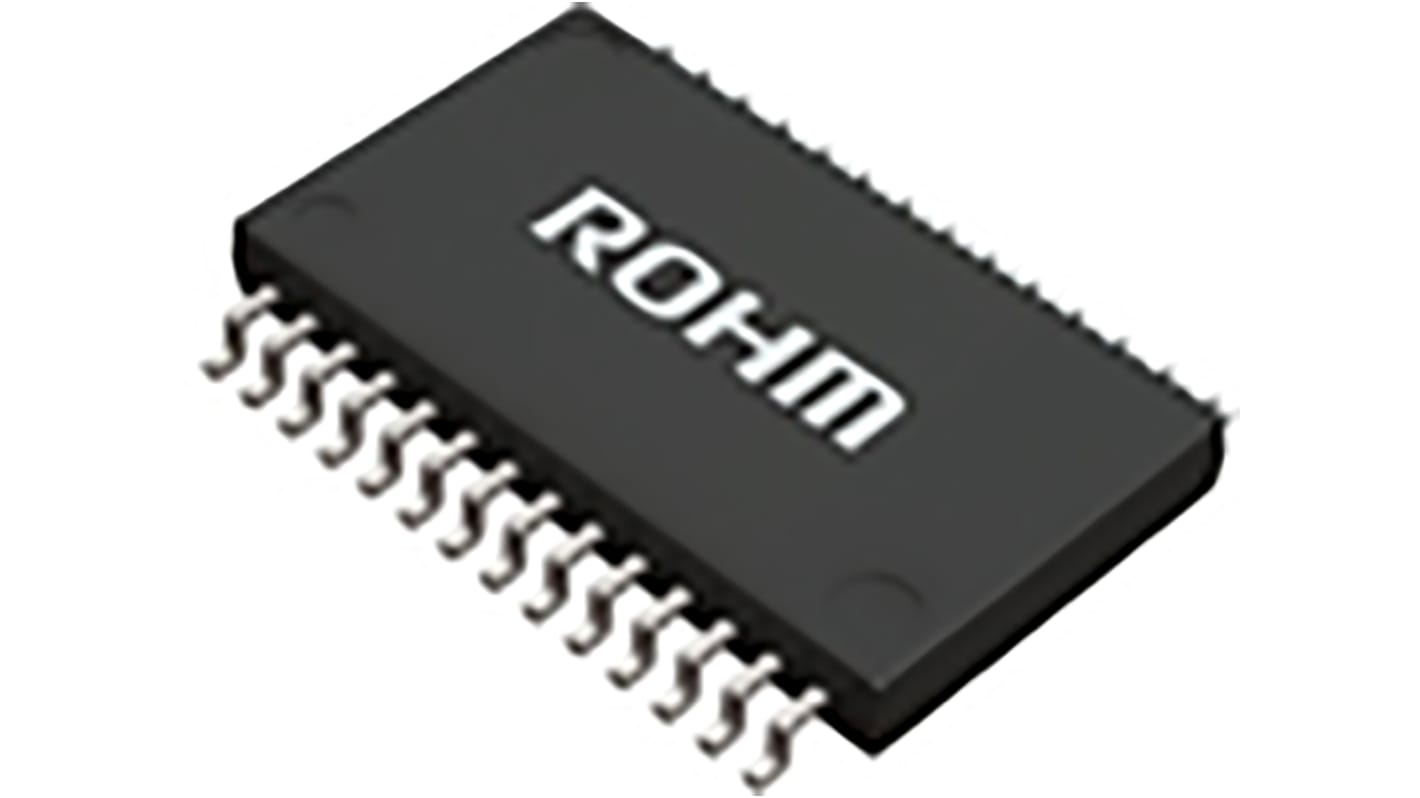

BD37033FV-ME2 ROHM, 6-Channel Audio Processor, 28-Pin SSOP

View all Audio & Video Processors
Bulk discount available

Subtotal (1 pack of 2 units)*

$17.15

(exc. GST)

$18.864

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 22 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
2 - 8$8.575$17.15
10 - 18$8.31$16.62
20 - 98$8.065$16.13
100 +$7.815$15.63

*price indicative

RS Stock No.:
185-0984
Mfr. Part No.:
BD37033FV-ME2
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Number of Channels

6

Processor Type

Audio Processor

Internal Master Clock

400kHz

Mounting Type

Surface Mount

Package Type

SSOP

Pin Count

28

Dimensions

10 x 5.6 x 1.15mm

Height

1.15mm

Length

10mm

Maximum Operating Supply Voltage

9.5 V

Minimum Operating Temperature

-40 °C

Width

5.6mm

Minimum Operating Supply Voltage

7 V

Maximum Operating Temperature

+85 °C

Automotive Standard

AEC-Q100

COO (Country of Origin):
DE
BD37033FV-M is sound processors for car audio. The functions are stereo input selector with single end 3 and ground isolation input 2, volume, 3-band parametric equalizer, loudness, 6ch fader volume, LPF for subwoofer, anti-aliasing-filter, Mixing volume. Moreover, “Advanced switch circuit”, that is ROHM original technology, can reduce various switching noise (ex.No-signal, low frequency likes 20Hz & large signal inputs). “Advanced switch” makes control of microcomputer easier, and can construct high quality car audio system.

Reduce switching noise by using advanced switch circuit
Built-in input selector (single 3 / diff 2)
Decrease the number of external components
Built-in mixing volume and anti-aliasing-filter
Built-in anti-GSM-noise-filter
Package is SSOP-B28
It is possible to control by 3.3V / 5V for I²C BUS
AEC-Q100 Qualified
