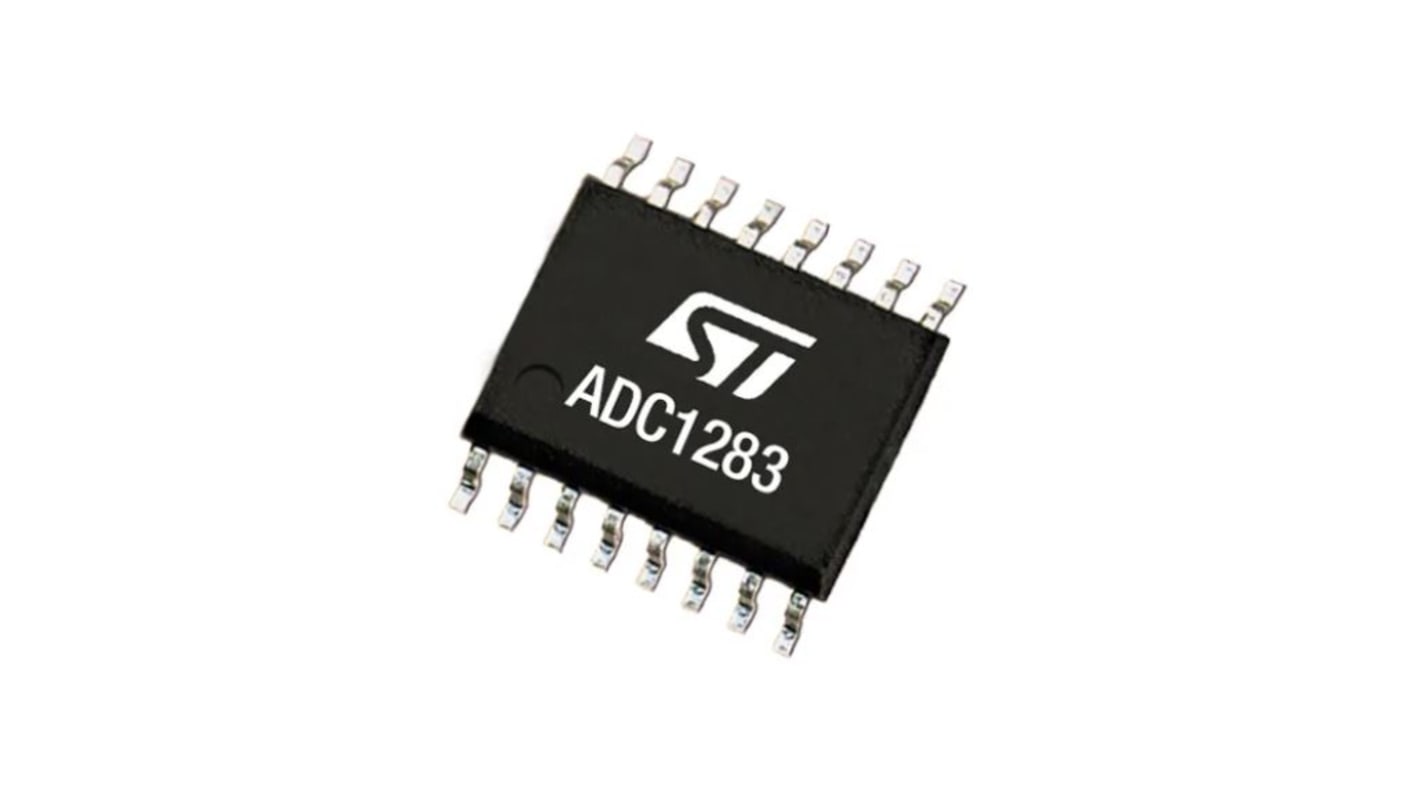

STMicroelectronics, ADC 200ksps, 16-Pin TSSOP
- RS Stock No.:
- 261-5025
- Mfr. Part No.:
- ADC1283IPT
- Brand:
- STMicroelectronics
View this category
On back order for despatch 17/04/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each (In a Pack of 2)
$4.83
(exc. GST)
$5.31
(inc. GST)
| units | Per unit | Per Pack* |
| 2 - 8 | $4.83 | $9.66 |
| 10 - 98 | $4.345 | $8.69 |
| 100 - 248 | $3.91 | $7.82 |
| 250 - 498 | $3.515 | $7.03 |
| 500 + | $3.175 | $6.35 |
| *price indicative | ||
Packaging Options:
- RS Stock No.:
- 261-5025
- Mfr. Part No.:
- ADC1283IPT
- Brand:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
The STMicroelectronics SAR ADC is a low-power, eight-channel pure CMOS 12-bit analog-to-digital converter specified for conversion from 50 ksps to 200 ksps, tested at 200 ksps. The architecture is based on a successive-approximation register with an internal track-and-hold cell. The ADC1283 features 8 single-ended multiplexed inputs. The output serial data is straight binary and is SPI compatible.
50 ksps to 200 ksps conversion rate
Power-down mode
4-wire SPI serial digital interface
Power-down mode
4-wire SPI serial digital interface
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
| Attribute | Value |
| Architecture | SAR |
| Sampling Rate | 200ksps |
| Package Type | TSSOP |
| Pin Count | 16 |
