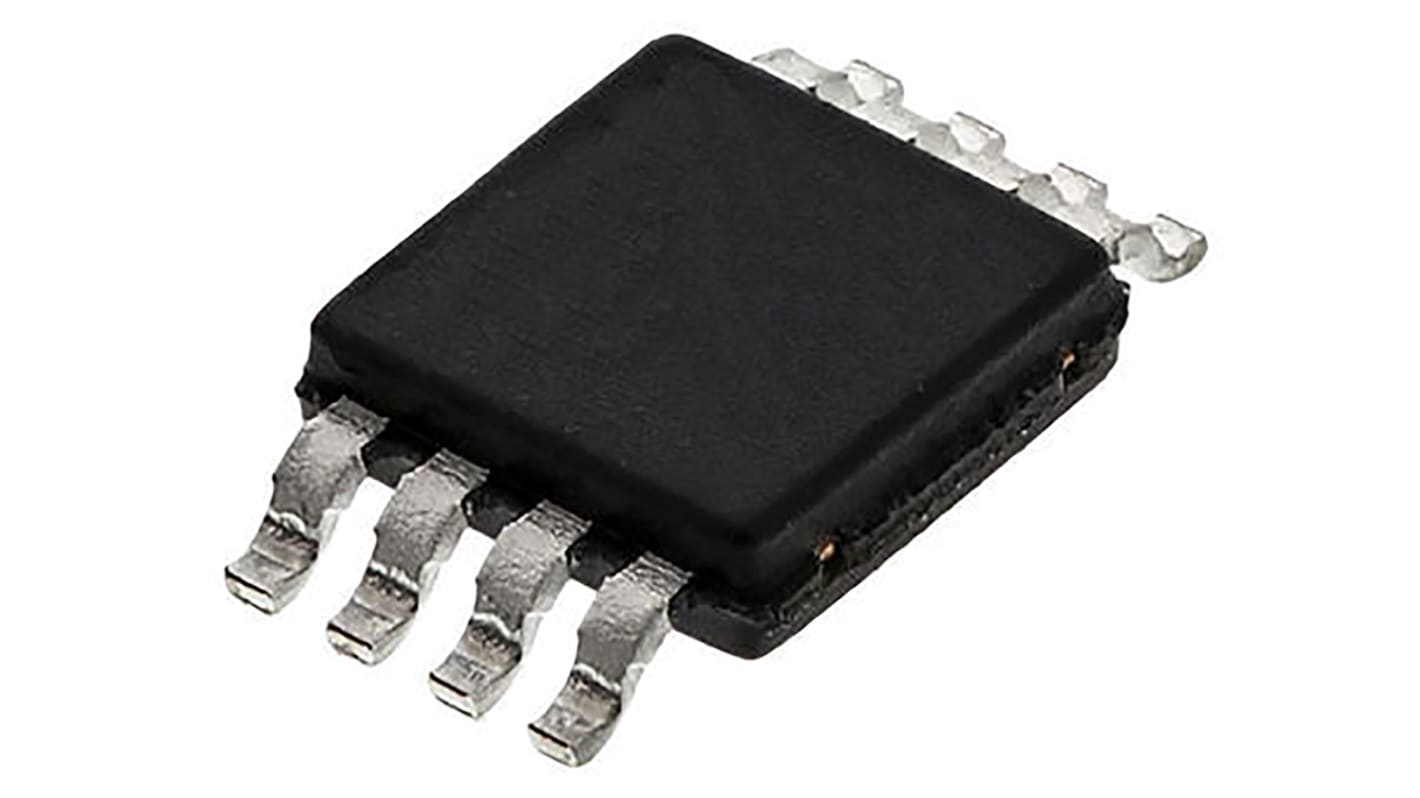

Microchip, 13-bit- ADC 100ksps, 8-Pin MSOP
- RS Stock No.:
- 159-7465
- Mfr. Part No.:
- MCP3301-CI/MS
- Brand:
- Microchip
500 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Tube of 100)
$4.529
(exc. GST)
$4.982
(inc. GST)
| Units | Per unit | Per Tube* |
| 100 - 400 | $4.529 | $452.90 |
| 500 + | $4.379 | $437.90 |
| *price indicative | ||
- RS Stock No.:
- 159-7465
- Mfr. Part No.:
- MCP3301-CI/MS
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
MCP30/MCP32/MCP33 Series Successive Approximation Register (SAR) Analogue-to-Digital Converters
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Analogue to Digital Converters - Microchip
Specifications
Attribute | Value |
|---|---|
| Architecture | SAR |
| Number of ADCs | 1 |
| Resolution | 13-bit |
| Sampling Rate | 100ksps |
| Input Signal Type | Single Ended |
| Input Type | Voltage |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 8 |
| Integral Nonlinearity Error | ±2LSB |
| Digital Interface Type | Serial (SPI) |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 4.5 to 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 0.95mm |
| Maximum Operating Temperature | 85 °C |
