Texas Instruments 4-quadrant Voltage Multiplier, 10 MHz, 14-Pin PDIP
- RS Stock No.:
- 121-8452
- Mfr. Part No.:
- MPY634KP
- Brand:
- Texas Instruments

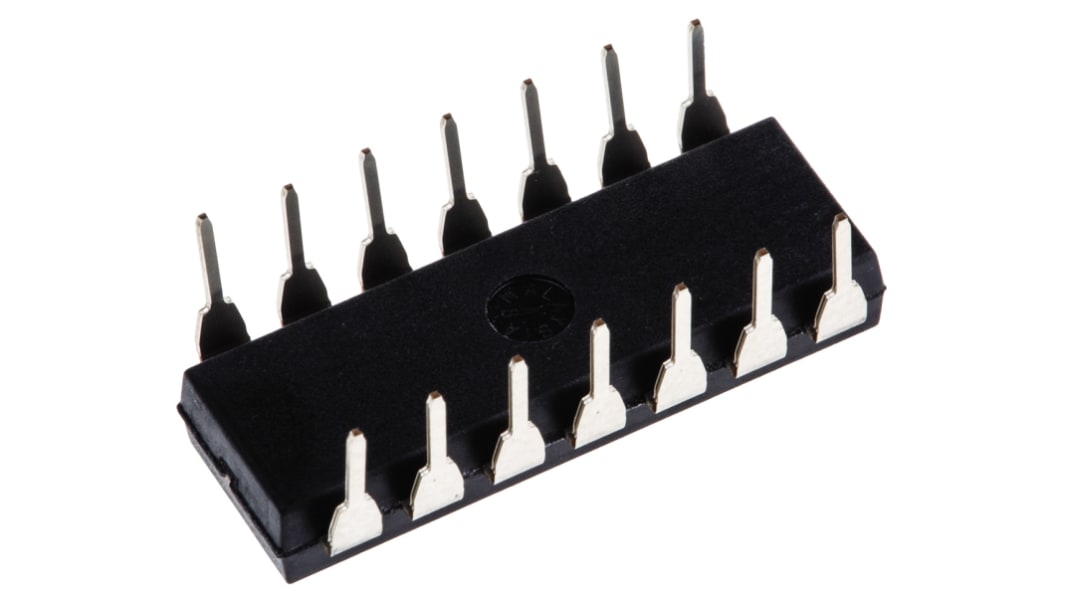

This image is representative of the product range
Subtotal (1 tube of 25 units)*
$1,412.85
(exc. GST)
$1,554.125
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 50 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 + | $56.514 | $1,412.85 |
*price indicative
- RS Stock No.:
- 121-8452
- Mfr. Part No.:
- MPY634KP
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Number of Quadrants | 4 | |
| Product Type | Voltage Multiplier | |
| Sub Type | Analogue Multiplier | |
| Output Type | Single Ended | |
| Supply Current | 6mA | |
| Maximum Operating Frequency | 10MHz | |
| Maximum Dual Supply Voltage | 18V | |
| Minimum Dual Supply Voltage | 8V | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Height | 4.57mm | |
| Length | 19.3mm | |
| Width | 6.35 mm | |
| Series | MPY634 | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Number of Quadrants 4 | ||
Product Type Voltage Multiplier | ||
Sub Type Analogue Multiplier | ||
Output Type Single Ended | ||
Supply Current 6mA | ||
Maximum Operating Frequency 10MHz | ||
Maximum Dual Supply Voltage 18V | ||
Minimum Dual Supply Voltage 8V | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Pin Count 14 | ||
Height 4.57mm | ||
Length 19.3mm | ||
Width 6.35 mm | ||
Series MPY634 | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Analogue Multipliers, Texas Instruments
