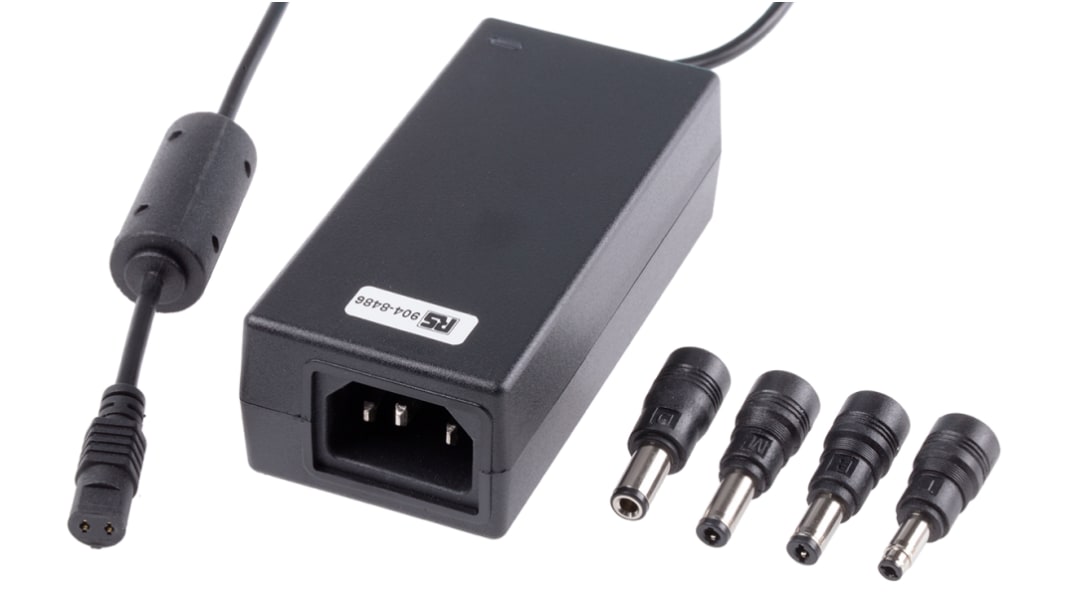

RS PRO 36W Plug-In AC/DC Adapter 12V dc Output, 3A Output

RS Stock No.:: 904-8486
Distrelec Article No.:: 303-91-292
Brand:: RS PRO

RS PRO 36W Plug-In AC/DC Adapter 12V dc Output, 3A Output

1 / 3

Bulk discount available

Subtotal (1 unit)**

$70.48

(exc. GST)

$77.53

(inc. GST)

18 In AU stock for next working day delivery*

460 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 9	$70.48
10 - 49	$66.96
50 +	$63.62

**price indicative

RS Stock No.:: 904-8486
Distrelec Article No.:: 303-91-292
Brand:: RS PRO

RS Pro Desktop Power Supply - Energy efficient

Brought to you by RS Pro, a range of desktop power supplies. Perfect for various devices like laptops and CCTV cameras. Ensuring the appliance is compatible, the performance and energy efficiency of these power supplies propel them way ahead of the competition. All models are highly reliable and excellent quality.

Features and Benefits

• Energy saving compact design
• Regulated output
• EMC compliance to EN 55022 Class B
• Short circuit, overload and over-voltage protection - auto recovery
• C14 Socket
• LED status indication
• Various output connector sizes available

What is energy efficiency?

A major benefit to the design of these units is they comply with the Energy Efficiency Level VI Compliance standards. These standards ensure a greater efficiency over Level V units, using less power more efficiently results in lower energy bills and a lower impact on the environment. Making sure that when using the appliance, your carbon footprint is significantly reduced.

What is a desktop power supply?

A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops, CCTV cameras or chargers. Due to the output of the PSU itself, they wouldn't be a suitable power source for high tech desktops. A PC power supply is created specifically to be used with that computer, where as these units can be interchanged, providing the technical specifications of the appliance meet the PSU's in terms of safety and usability.

Are these units only a laptop power supply?

The main purpose of a desktop power supply would definitely be for laptops. However, providing the appliance or item will accept the output electrical specifications and a P1J connector. As an example, you could use this module in any of the following applications:

• Speakers
• Chargers
• CCTV Cameras
• Lamps and Lights

Warning

Please make sure the device is able to support the power from this power supply for both operational and safety reasons.

Note

The power supply is supplied without a power lead, please see essential accessory for a selection of compatible leads.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Adapter Type	Plug-In Adapter
	Plug Type	C14
	Output Voltage	12V dc
	Input Voltage	85 → 264V ac
	Output Current	3A
	Maximum Temperature	+40°C
	Output Connector	1.75 x 4.75 x 11 mm Centre Positive Female Coaxial Plug, 2.1 x 5.5 x 10.5 mm Centre Positive Female Coaxial Plug, 2.5 x 5.5 x 12.5 mm Centre Positive Female Coaxial Plug, 3 x 6.3 x 12 mm Centre Positive Female Coaxial Plug
	Input Connector	C14
	Number of Outputs	1
	Power Rating	36W
	Standards Met	EN 55032, EN 62368-1, UL 62368-1
	MTBF	30000h
	Energy Efficiency Level	VI
	Minimum Temperature	0°C
	Load Regulation	±5%
	Line Regulation Range	±1%
	Depth	31mm
	Series	EA1024
	Length	100mm
	Width	45mm
