A Complete Guide to Resistors: Types, Functions, and Applications

Resistors are fundamental passive components found in virtually every electrical and electronic circuit. The purpose of resistors in circuits ranges from managing current flow, dividing voltage, and safeguarding other components from excessive current. Understanding their characteristics and types is essential for anyone working with electronics in Australia.

A resistor is an electronic component that impedes the flow of electric current in a circuit. What a resistor does to voltage is create a drop proportional to the current flowing through it and its resistance value (as described by Ohm's Law: V = I × R). Its primary function is to introduce a specific amount of resistance, measured in ohms (Ω). This resistance converts electrical energy into heat, effectively controlling the current.

You can think of a resistor as a narrow section in a water pipe. This narrow section restricts the flow of water (current). The higher the resistance value of a resistor, the narrower the section is and the more it restricts the current flow. This then allows a more controlled current to flow through.

Resistors possess several properties that determine their performance and suitability for different applications:

Resistance (R)

Resistance is the primary characteristic of a resistor, measured in ohms (Ω). It quantifies how strongly the resistor opposes the flow of electrical current. A higher resistance value indicates greater opposition to the current flow.

Power Rating (P)

The power rating (P) of a resistor specifies the maximum amount of power, measured in watts (W), that it can safely dissipate without overheating or sustaining damage. Hence, choosing an appropriate power rating is crucial for circuit safety and reliability.

Exceeding the power rating can lead to component failure, fire hazards, or even damage to the entire circuit. For instance, a resistor with a power rating of 0.25W might be suitable for a low-power LED circuit, while a 1W resistor would be needed for a higher-current application.

Tolerance

Tolerance refers to the permissible deviation in the actual resistance value from the specified value. It is typically expressed as a percentage (±1%, ±5%, etc.). Resistors with lower tolerance values are more precise and are essential in circuits where accuracy is critical, such as measurement and calibration circuits. For example, a 1kΩ resistor with a 1% tolerance will have an actual resistance value between 990Ω and 1010Ω.

Temperature Coefficient

The temperature coefficient indicates how much a resistor's resistance changes in response to temperature fluctuations. This is a critical consideration for applications where the resistor might experience significant temperature variations, such as in automotive electronics or industrial control systems. A positive temperature coefficient means the resistance increases with temperature, while a negative coefficient means it decreases.

Material

The materials used in constructing resistors significantly influence performance characteristics such as cost-effectiveness and stability under various conditions. Common materials include:

• Carbon Film Resistors: Widely used due to their affordability; suitable for general-purpose applications.
• Metal Film Resistors: Offer superior stability and lower noise levels; ideal for precision applications.
• Wire-Wound Resistors: Designed specifically for high-power applications; capable of handling substantial currents without overheating.

Resistors function by converting electrical energy into heat. When current flows through a resistor, some of the electrical energy is transformed into heat due to collisions between electrons and the atoms in the resistor material. This process, known as Joule heating, is the fundamental principle behind how resistors limit current flow. The amount of heat generated is proportional to the square of the current and the resistance value.

Ohm's Law (V = I × R) describes the relationship between voltage (V), current (I), and resistance (R). This law is fundamental to understanding and designing circuits with resistors. By applying Ohm's Law, you can calculate the appropriate resistor value needed to achieve a desired current flow or voltage drop within a circuit.

Resistors perform various functions in a circuit, contributing to its overall operation and safety. Here’s more about what a resistor does in an electrical circuit:

Current Limiting

Resistors limit the amount of current flowing through a circuit, protecting sensitive components from damage caused by excessive current. For instance, a resistor is often used in series with an LED to prevent it from burning out. This is crucial in applications where precise current control is needed to ensure proper functioning and prevent damage to delicate components.

Voltage Dividers

Resistors can be used to divide voltage, creating different voltage levels within a circuit. This is useful in applications like sensor circuits, where a specific voltage range is required for proper operation. Voltage dividers essentially split the voltage across two or more resistors, providing a lower voltage output. This technique is widely used in analogue circuits for signal conditioning and level shifting.

Biassing Transistors

Resistors play a crucial role in biasing transistors, ensuring they operate in the desired region for amplification or switching. Proper biasing stabilises the transistor's operating point and prevents distortion or instability in amplifier circuits. This ensures that the transistor operates efficiently and reliably, providing the desired amplification or switching characteristics.

Signal Processing

Resistors can also be used in signal processing circuits to filter or amplify signals. In audio equipment and communication systems, resistors help shape and condition signals, improving clarity and performance. For example, resistors can be used in filter circuits to attenuate specific frequencies or in amplifier circuits to adjust gain.

Power Dissipation

In high-current applications, resistors dissipate excess power in the form of heat. This is commonly seen in power supplies, where resistors help regulate voltage and prevent overheating of other components. The power rating of the resistor determines how much power it can safely dissipate.

Signal Conditioning

Resistors are used in signal conditioning circuits to adjust the amplitude or impedance of a signal. For example, a resistor can be used to match the impedance of a sensor to the input impedance of a measuring instrument, ensuring accurate readings. This is crucial in applications where signal integrity and accurate measurement are important.

Resistor markings provide a concise way to indicate the resistance value and tolerance of a resistor. These markings are essential because resistors are often too small to have their values printed directly on them. Understanding these markings is crucial for selecting and using the correct resistor for your circuit. There are two main marking systems: colour codes for through-hole resistors and alphanumeric codes for surface-mount resistors (SMD).

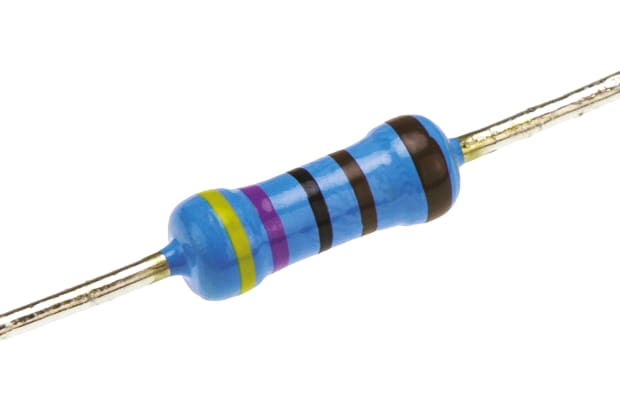

Colour Code System for Resistors

Through-hole resistors typically use a colour code system to indicate their resistance value and tolerance. This system involves a series of coloured bands printed on the resistor body. Each band represents a specific digit, multiplier, or tolerance value:

• The first two bands represent the first two significant digits of the resistance value.
• The third band represents the multiplier, indicating the power of ten by which the first two digits should be multiplied.
• The fourth band (if present) indicates the tolerance or the permissible variation in the resistance value.

For example, a resistor with the colour bands red, red, brown, and gold would have a resistance value of 220 ohms with a 5% tolerance.

Alphanumeric Marking System for Surface-Mount Resistors (SMD)

Surface-mount resistors, due to their smaller size, often use an alphanumeric marking system for labelling. This system typically uses three or four digits to represent the resistance value and a letter to indicate the tolerance.

• The first two or three digits represent the significant digits of the resistance value.
• The last digit represents the multiplier, indicating the power of ten by which the first digits should be multiplied.
• A letter at the end (or sometimes a third digit) indicates tolerance.

For example, a resistor marked "103" would have a resistance value of 10,000 ohms (10 x 10³). A resistor marked "4R7" would have a resistance value of 4.7 ohms.

Selecting the right resistor is crucial for the proper functioning and safety of your circuit. Here are the key factors to consider:

Resistance Value (Ohms, Ω)

The resistance value is the primary factor to consider as it dictates how much the resistor will oppose current flow in the circuit. Use Ohm's Law and circuit analysis to calculate the required resistance value for your specific application. For example, if you need to limit the current through an LED to 20mA with a 5V supply voltage, you will need a 250Ω resistor.

Power Rating (Watts, W)

The power rating should be chosen to ensure the resistor can safely handle the power dissipated in the circuit. You can calculate the power dissipation using the formula P = I² × R, where P is power, I is current, and R is resistance. It is also best to select a resistor which has a power rating higher than the calculated power dissipation to ensure safe operation.

Tolerance (% Error)

Tolerance indicates the permissible variation in resistance. It is generally advised to choose a lower tolerance resistor for applications that require greater precision, such as measurement or calibration circuits. For general-purpose applications, a 5% or 10% tolerance is usually sufficient.

Temperature Coefficient (ppm/°C)

Consider the temperature coefficient if the resistor will be exposed to significant temperature variations. Choose a resistor with a low-temperature coefficient for applications where stability over temperature is crucial, such as in precision instrumentation or temperature-sensitive circuits.

Type and Material

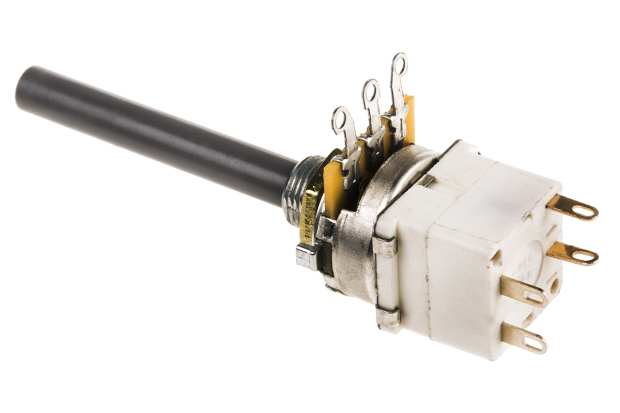

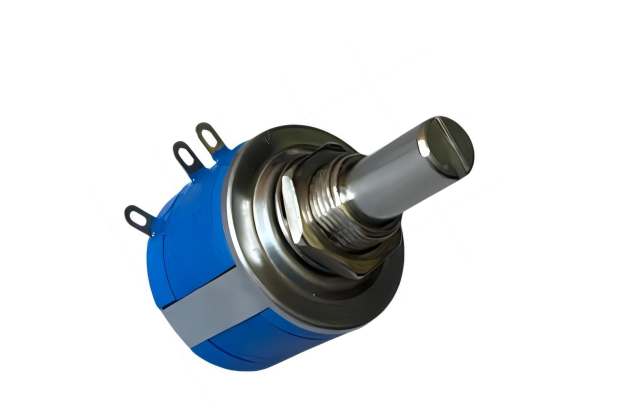

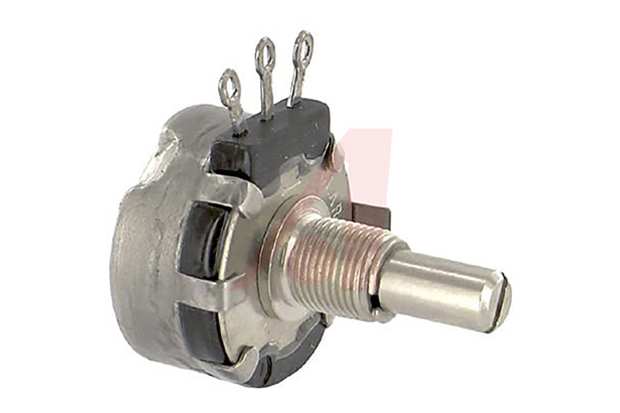

Select the appropriate type of resistor (fixed, variable, or specialty) based on your circuit requirements. You should also consider the material based on factors like cost, performance, and environmental conditions.

For example, if you need a resistor for a high-temperature application, choose a metal film or wire-wound resistor. Conversely, if cost is a primary concern and the application is not demanding, a carbon film resistor might be a suitable choice.

Physical Size

Choose a resistor with a physical size suitable for your circuit board and application. Smaller surface-mount resistors are often used in compact electronic devices, while larger through-hole resistors are used in high-power applications.

Adhering to resistor standards is crucial for safety and compliance. In Australia, resistor standards are largely harmonised with international standards, including IEC 60115, which specifies requirements for fixed resistors, and other global standards relevant to resistor performance, safety, and testing.

RoHS (Restriction of Hazardous Substances) compliance, which restricts the use of hazardous substances like lead in resistor manufacturing, is also an important consideration. These standards ensure workplace safety, reliability, and environmental friendliness of resistors used in various applications.
