P Series XLR Panel Connectors

Precision engineered audio connectors. Their construction ensures reliable connection for both power and low level signal circuitry. Connector/Cable assembly is straightforward employing a minimal number of parts (no assembly screws used). Parts are polarised and securely fitted thereby eliminating connector noise. Available in either nickel or black chrome finishes. A latch secures mated connectors. Suitable hole punches for panel mounting parts: For type MP stock no.543-591 and for type FP1 stock no. 543-579.

Identification boots supplied in a bag of 9 colours, Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow and Black.
Identification collars in a bag of 10 colours: Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow and Black, Black only.

Warning

Not to be used as mains connectors

Select all	Attribute	Value
	Brand	Neutrik
	Number of Contacts	4
	Gender	Female
	Mounting Type	Panel Mount
	Body Orientation	Straight
	Colour	Black Metallic
	Contact Plating	Silver over Nickel
	Housing Material	Zinc
	Termination Method	Solder
	Current Rating	10A
	Voltage Rating	50 V
	Contact Material	Brass
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	+80°C

	Select all
	Brand Neutrik
	Number of Contacts 4
	Gender Female
	Mounting Type Panel Mount
	Body Orientation Straight
	Colour Black Metallic
	Contact Plating Silver over Nickel
	Housing Material Zinc
	Termination Method Solder
	Current Rating 10A
	Voltage Rating 50 V
	Contact Material Brass
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature +80°C

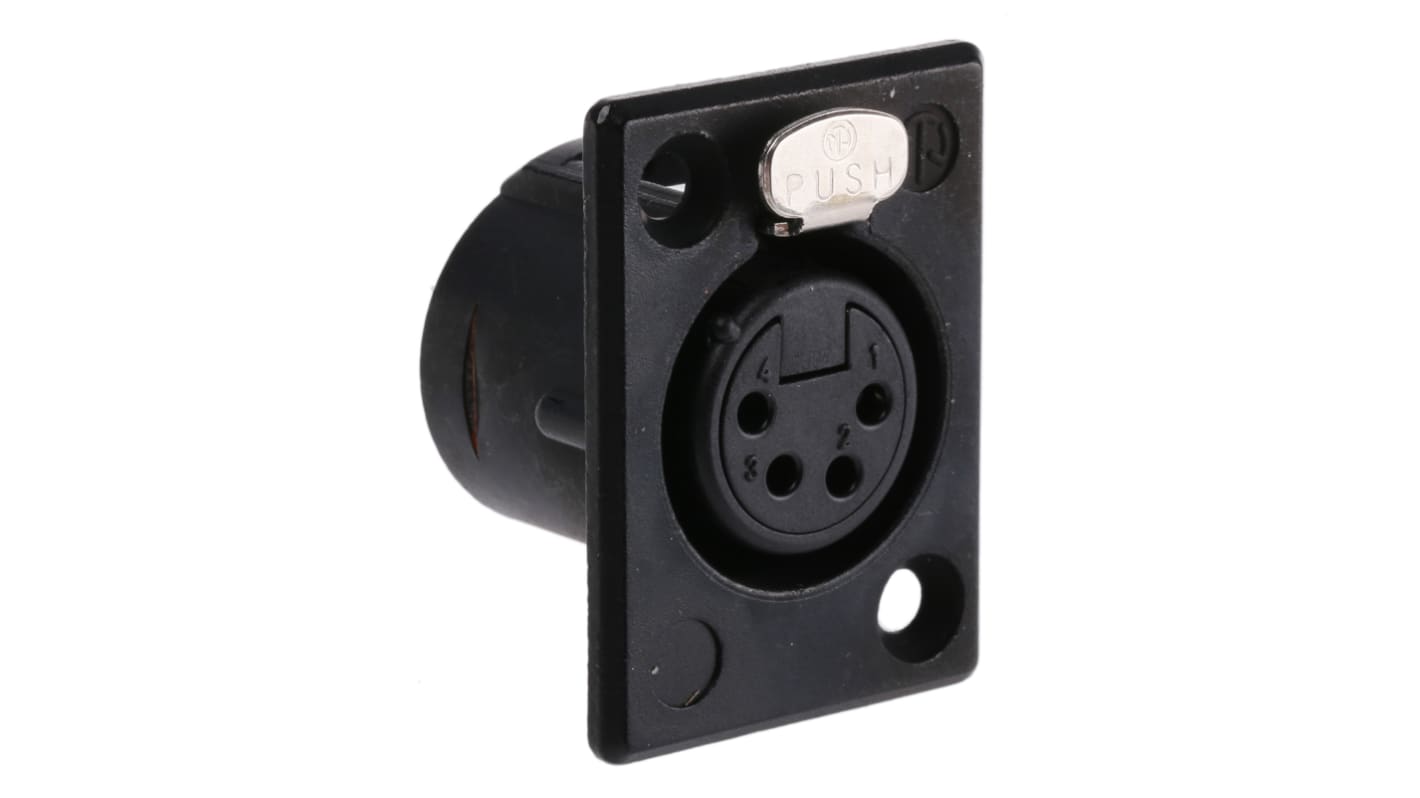

Neutrik Panel Mount XLR Connector, Female, 50 V, 4 Way, Silver over Nickel Plating
