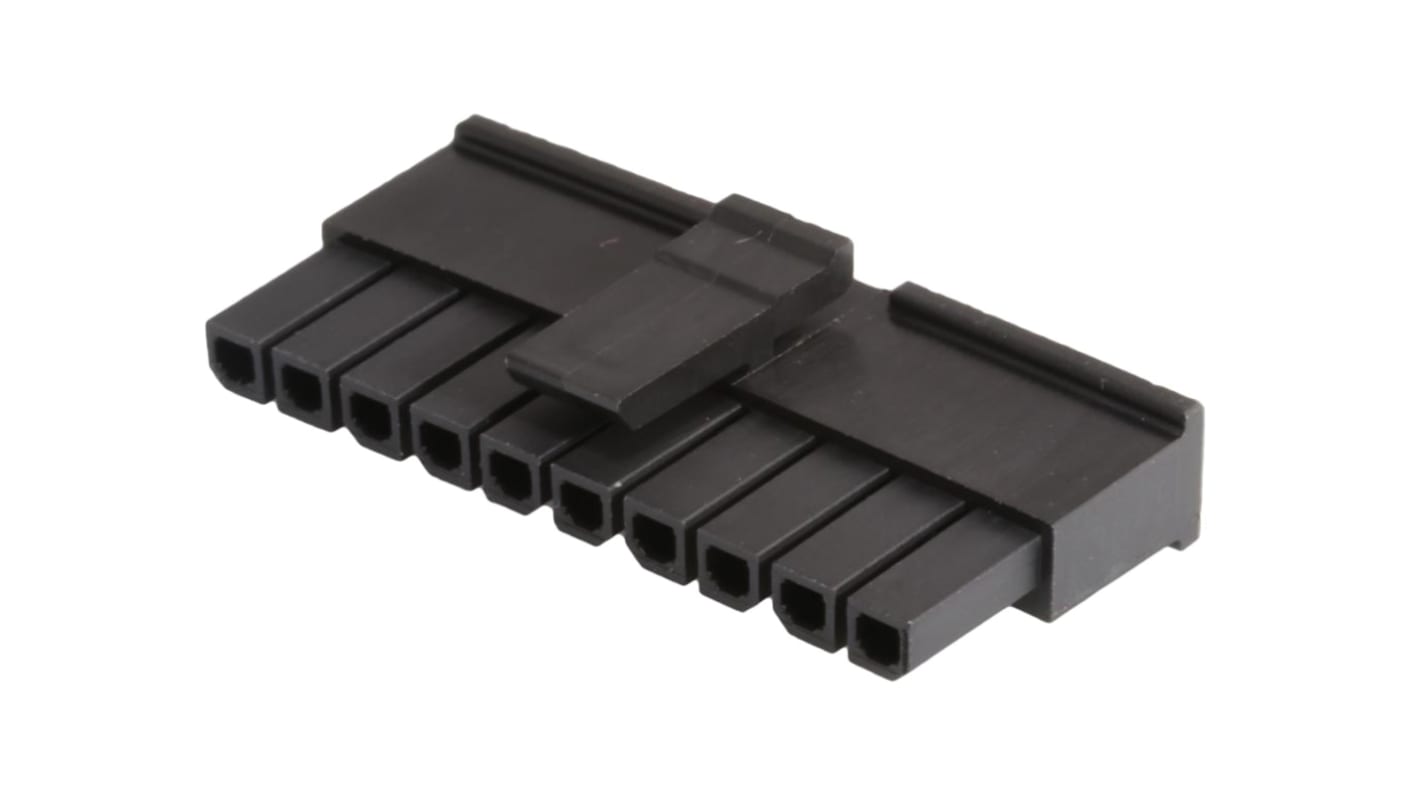

Molex, Micro-Fit Female Crimp Connector Housing, 3mm Pitch, 10 Way, 1 Row
- RS Stock No.:
- 189-1400
- Mfr. Part No.:
- 43645-1000
- Brand:
- Molex
426 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Bag of 1500)
$0.743
(exc. GST)
$0.817
(inc. GST)
Units | Per unit | Per Bag* |
---|---|---|
1500 - 1500 | $0.743 | $1,114.50 |
3000 - 4500 | $0.728 | $1,092.00 |
6000 + | $0.715 | $1,072.50 |
*price indicative
- RS Stock No.:
- 189-1400
- Mfr. Part No.:
- 43645-1000
- Brand:
- Molex
Technical data sheets
Legislation and Compliance
Product Details
Reduction in engagement and disengagement forces
Supports ergonomics and user-friendly interface
The plugs TPA retainer mates with the existing Micro-Fit TPA Receptacle to prevent terminal back-outs in wire-to-wire applications
Prevents end product failure. Ensures both components provide a reliable connection
10.0A RMF terminal available
Delivers higher power with existing Micro-Fit components. Enables running changes to higher amperage
Terminal position assurance (TPA) feature with integrated secondary lock
Eliminates terminal back-outs resulting from improper assembly
Applications
Consumer
Washers and dryers
Freezers
Gaming machines
Printers
Refrigerators
Scanners
Security systems
Vending machines
White goods
Telecommunications/Networking
Routers and switches
Servers
Storage
Medical
Diagnostic equipment
Patient monitors
Sustainable Energy
Solar power
Automotive
Harness manufacturers
Non-sealed applications
Inside devices
Supports ergonomics and user-friendly interface
The plugs TPA retainer mates with the existing Micro-Fit TPA Receptacle to prevent terminal back-outs in wire-to-wire applications
Prevents end product failure. Ensures both components provide a reliable connection
10.0A RMF terminal available
Delivers higher power with existing Micro-Fit components. Enables running changes to higher amperage
Terminal position assurance (TPA) feature with integrated secondary lock
Eliminates terminal back-outs resulting from improper assembly
Applications
Consumer
Washers and dryers
Freezers
Gaming machines
Printers
Refrigerators
Scanners
Security systems
Vending machines
White goods
Telecommunications/Networking
Routers and switches
Servers
Storage
Medical
Diagnostic equipment
Patient monitors
Sustainable Energy
Solar power
Automotive
Harness manufacturers
Non-sealed applications
Inside devices
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 10 |
Number of Rows | 1 |
Pitch | 3mm |
Gender | Female |
Mounting Type | Cable Mount |
Series | Micro-Fit |
For Use With | 43030 Micro-Fit 3.0 Female Crimp Terminals, 45773 Micro-Fit 3.0 Female Crimp Terminals, 46235 Micro-Fit RMF Female Crimp Terminals |
Length | 30.85mm |
Width | 11.56mm |
Housing Material | Polyester |
