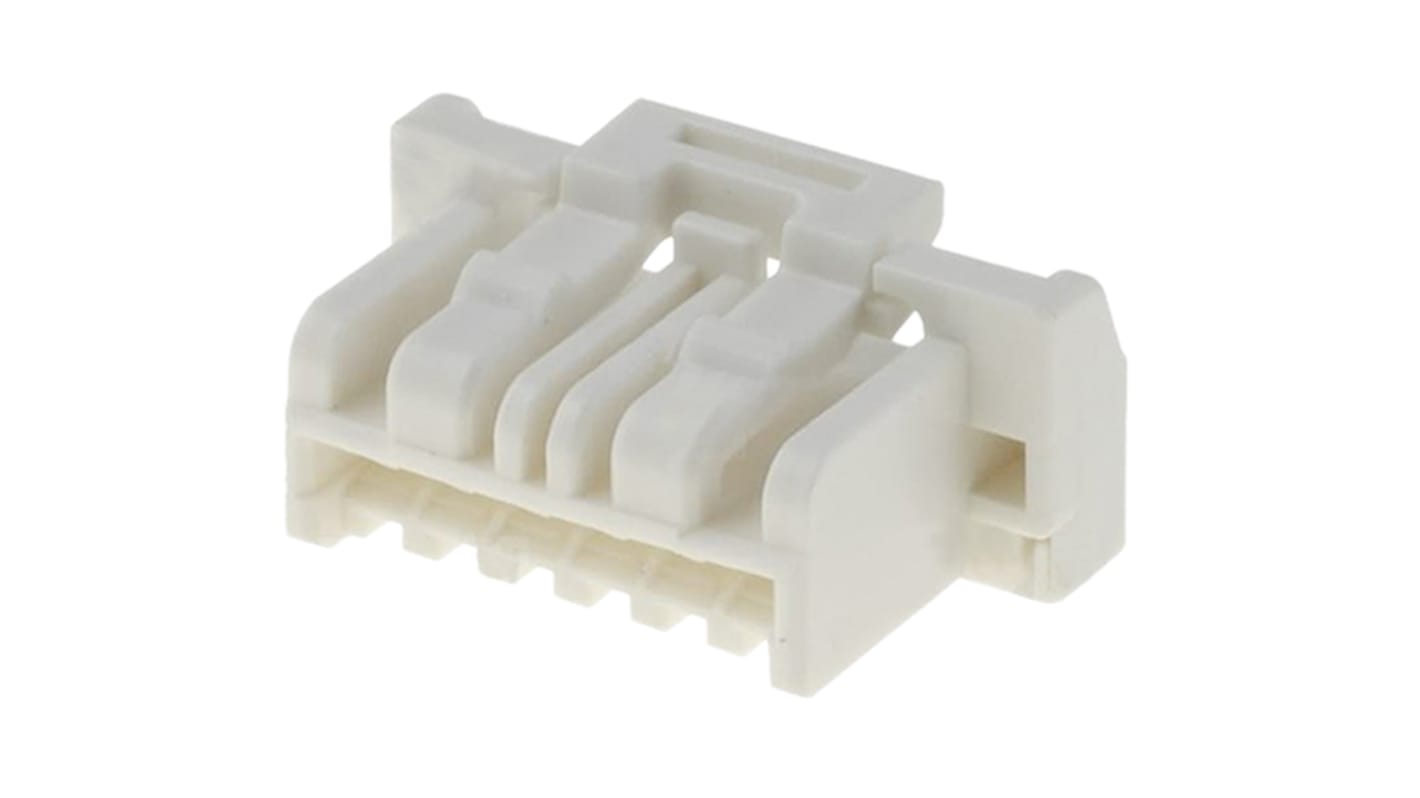

Molex, CLIK-Mate Male Connector Housing, 1.5mm Pitch, 6 Way, 1 Row

1.5mm pitch CLIK-Mate™ plug housings for use in wire to board applications. These 1.5mm plug style crimp housings have polarization and keying for accurate mating and also feature a positive inner locking system that provides secure mating retention which is confirmed by an audible 'click'. Typical applications for these 1.5mm CLIK-Mate™ plug housings are those that require a high pin count and the ability to carry more signal lines in less space which include automotive, consumer (eg LCD and TV panel), industrial (eg hand held scanners, smart meters), medical (eg instrumentation and patient monitor) and solid state lighting.
For mating receptacle connectors see Molex series 503395, 502585 and 502584
For crimp termimals see Molex series 502579 and 503429

Need to pack lots of connections into a tight space? Link up with this Molex connector housing. With its 1.5mm pitch, it tucks into busy systems without a snag while supporting reliable signalling. As you get six contacts, the unit helps you keep wiring organised in a busy setup. Connecting it up is no problem, as it simply clicks into a header (such as 828-0481). Thanks to its durable PBT body, the housing shrugs off knocks to deliver effective conductor protection.

• Single-row pin layout to slip neatly into compact installations
• Crimps to cables, ensuring secure mounting
• Supports current up to 3A to work with light-duty applications

• Logistics industry
• Signalling systems
• Automotive manufacturing

This plug comes with a positive lock mechanism that clicks when it mates, giving you clear confirmation it's properly connected.

1.5mm Wire to Board - Molex CLIK-Mate™ Series
