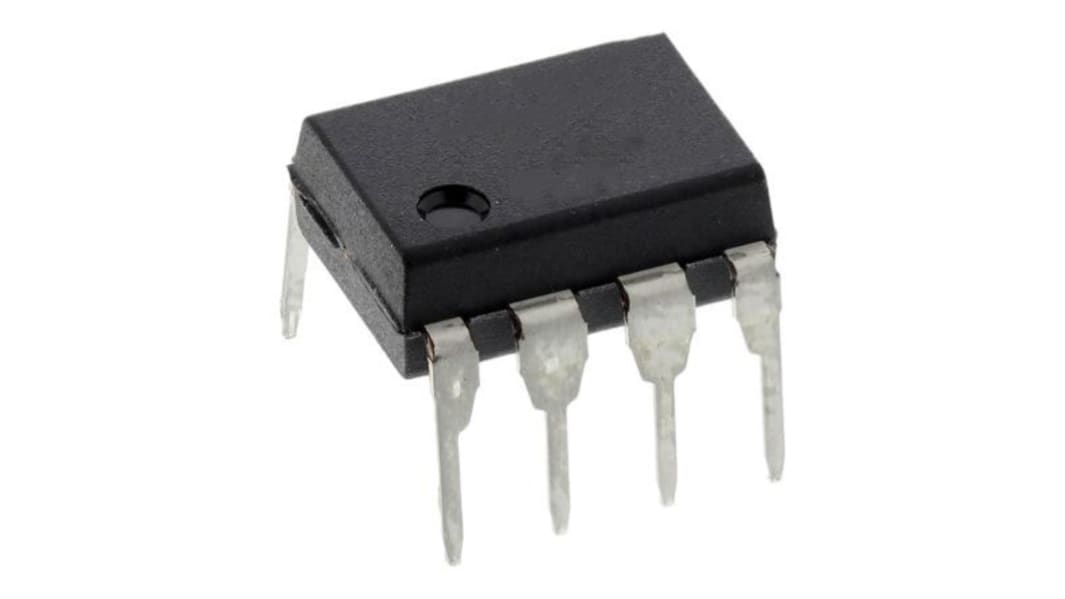

Name: Maxim Integrated Voltage Supervisor 8-Pin PDIP, MAX699CPA+
Brand: Maxim Integrated
SKU: 190-1553
Price: 11.26 AUD
Availability: Discontinued

Microprocessor Supervisory & Reset Circuits (5V and Adjustable), Maxim Integrated

The microprocessors supervisory circuit will reduce the complexity and amount of components used in order to monitor power supply and battery-control functions in μP systems. There are plenty of applications for the microprocessor supervisor, with some being in the automotive industry, industrial, servers & networking, laptops and notebook computers, controllers, critical μP monitoring, intelligent instruments such as testing equipment and portable battery equipment. The supervisory circuitry also provide maximum adjustability for reset & watchdog functions.

Key features –
• Adjustable Reset Threshold
• Adjustable Reset Timeout
• Adjustable watchdog timeout multiplier
• Power-supply transient immunity
• Overvoltage protection switch controller
• Thermal shutdown protection

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Note

Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.

Microprocessor Supply Voltage Supervisory & Reset Circuits

Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.

Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit

Select all	Attribute	Value
	Brand	Maxim Integrated
	Voltage Supervisor Type	Power Supply Monitor
	Number of Supervisors	1
	Watchdog Timer	Yes
	Mounting Type	Through Hole
	Package Type	PDIP
	Pin Count	8
	Dimensions	9.91 x 7.87 x 4.45mm
	Maximum Monitored Voltage	5V
	Maximum Operating Supply Voltage	5.5 V
	Minimum Operating Temperature	0 °C
	Minimum Operating Supply Voltage	3 V
	Maximum Operating Temperature	+70 °C

	Select all
	Brand Maxim Integrated
	Voltage Supervisor Type Power Supply Monitor
	Number of Supervisors 1
	Watchdog Timer Yes
	Mounting Type Through Hole
	Package Type PDIP
	Pin Count 8
	Dimensions 9.91 x 7.87 x 4.45mm
	Maximum Monitored Voltage 5V
	Maximum Operating Supply Voltage 5.5 V
	Minimum Operating Temperature 0 °C
	Minimum Operating Supply Voltage 3 V
	Maximum Operating Temperature +70 °C
