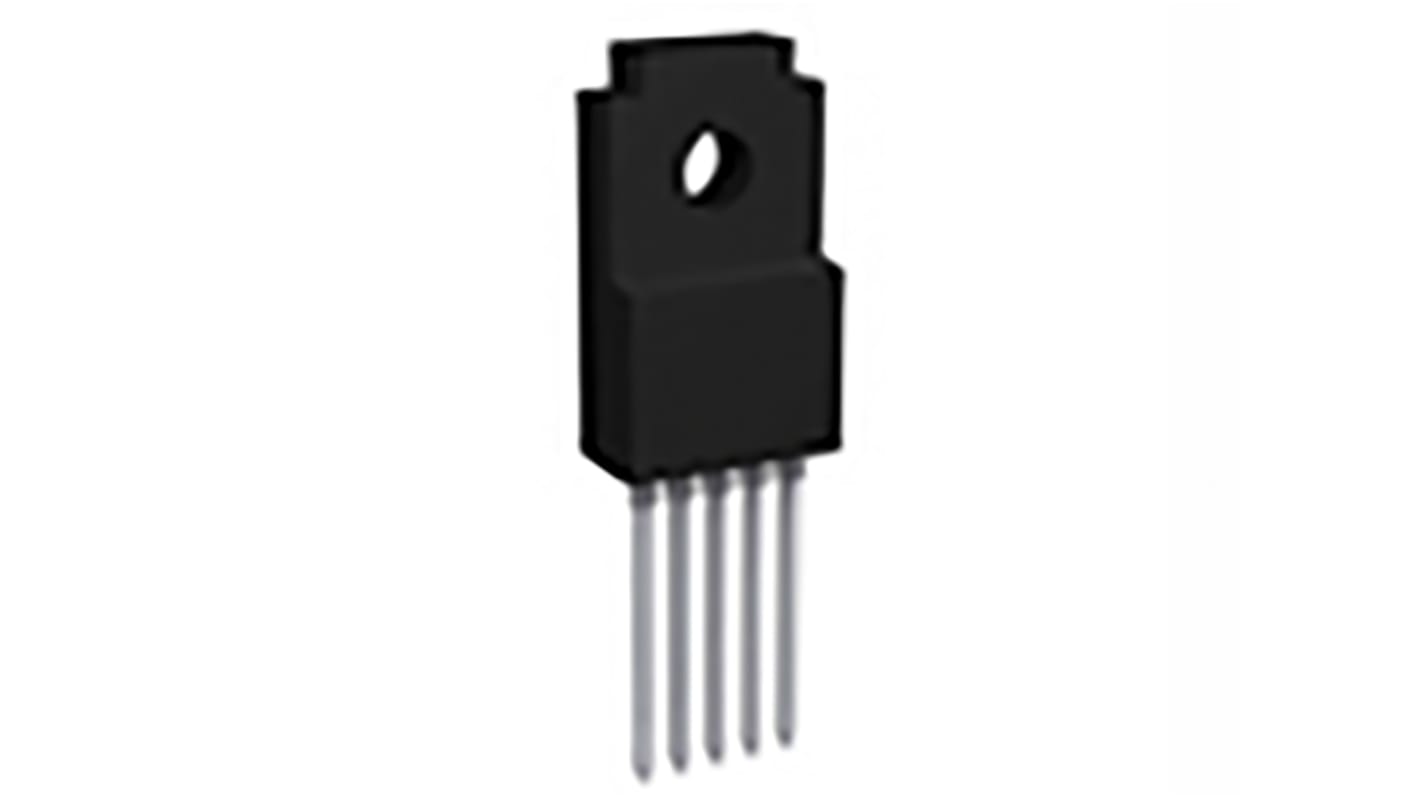

ROHM BAJ2DD0WT, 1 Low Dropout Voltage, Voltage Regulator 2A, 12 V 5-Pin, TO-220FP

View all Voltage Regulators
Unavailable
RS will no longer stock this product.
RS Stock No.:
184-7489
Mfr. Part No.:
BAJ2DD0WT
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Maximum Output Current

2A

Regulator Type

Low Dropout Voltage

Number of Outputs

1

Output Voltage

12 V

Line Regulation

100 mV

Load Regulation

150 mV

Accuracy

±1%

Mounting Type

Through Hole

Package Type

TO-220FP

Pin Count

5

Output Type

Fixed

Dimensions

10 x 4.5 x 17mm

Height

17mm

Maximum Operating Temperature

125 °C

Minimum Operating Temperature

-40 °C

Minimum Input Voltage

3 V

Maximum Input Voltage

25 V

Length

10mm

Width

4.5mm

COO (Country of Origin):
JP
ROHM's LDO regulators continue the trend towards increasing miniaturization and greater power efficiency and are optimized for power supplies of all types. The broad lineup includes low saturation fixed output types in 1A/2A/0.3A ratings, models with different output voltages and packages, and units with/without a shutdown switch. In addition, overcurrent, thermal shutdown, and overvoltage protection circuits are integrated to prevent IC destruction due to output shorts, IC overload, and surges on the power supply line, respectively.

Maximum current: 2A
Output voltage accuracy: ±1%
Ultra-low saturation with PNP output
