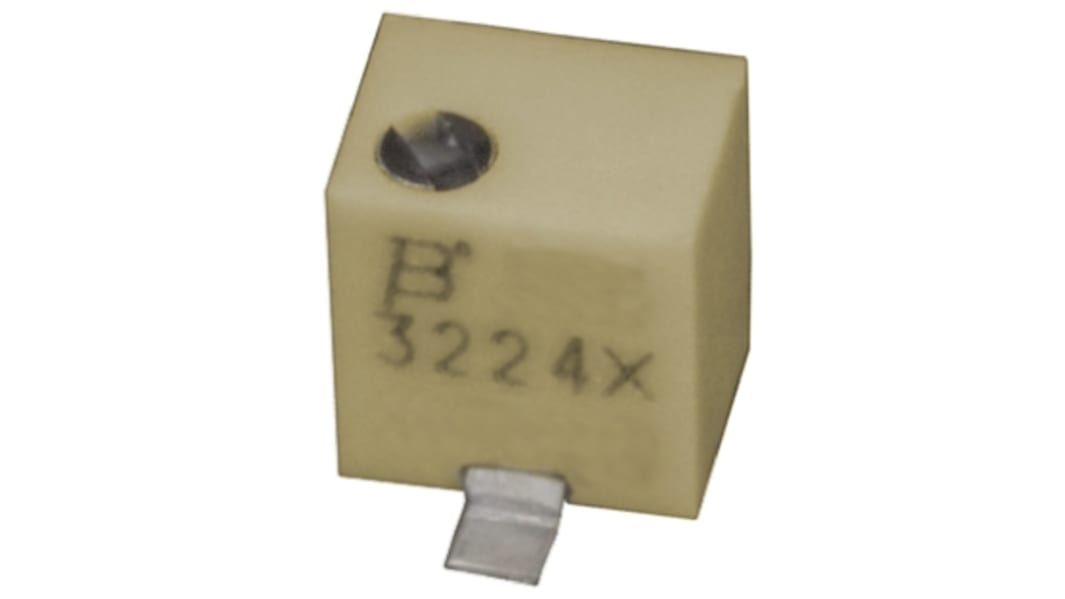

500kΩ, SMD Trimmer Potentiometer 0.25W Top Adjust Bourns, 3224
- RS Stock No.:
- 167-0117
- Mfr. Part No.:
- 3224X-1-504E
- Brand:
- Bourns
On back order for despatch 30/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 200)
$4.433
(exc. GST)
$4.876
(inc. GST)
| Units | Per unit | Per Reel* |
| 200 - 200 | $4.433 | $886.60 |
| 400 - 600 | $4.322 | $864.40 |
| 800 + | $4.256 | $851.20 |
| *price indicative | ||
- RS Stock No.:
- 167-0117
- Mfr. Part No.:
- 3224X-1-504E
- Brand:
- Bourns
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CR
Product Details
12-Turn 250mW 4mm 3224X Series Top Adjust
Bourns Standard 3224X Series top adjust SMD Trimpot® trimming potentiometer with a power rating @ 70 °C of 0.25W. The 3224X series cermet trimmer features a flush adjustment screw, a pick and place centring design for automated placement compatibility and is Sealed to withstand standard board wash processing.
Miniature (nominal 4mm square case size)
Excellent mounting efficiency
Suitable for flow/reflow soldering/hand solder
Meets standard EIA and EIAJ footprint
Low CRV - 1%
Excellent mounting efficiency
Suitable for flow/reflow soldering/hand solder
Meets standard EIA and EIAJ footprint
Low CRV - 1%
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Multi-Turn Surface Mount Trimmers
Specifications
Attribute | Value |
|---|---|
| Maximum Resistance | 500kΩ |
| Mounting Type | Surface Mount |
| Number of Turns | 12 |
| Orientation | Top Adjust |
| Power Rating | 0.25W |
| Series | 3224 |
| Termination Style | Gull Wing |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 4.8mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
