- RS Stock No.:
- 186-8826
- Mfr. Part No.:
- MC100ELT23DTG
- Brand:
- onsemi
Available for back order.
Added
Price (ex. GST) Each (In a Tube of 100)
$5.956
(exc. GST)
$6.552
(inc. GST)
Units | Per unit | Per Tube* |
100 - 100 | $5.956 | $595.60 |
200 - 300 | $5.81 | $581.00 |
400 + | $5.718 | $571.80 |
*price indicative |
- RS Stock No.:
- 186-8826
- Mfr. Part No.:
- MC100ELT23DTG
- Brand:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details

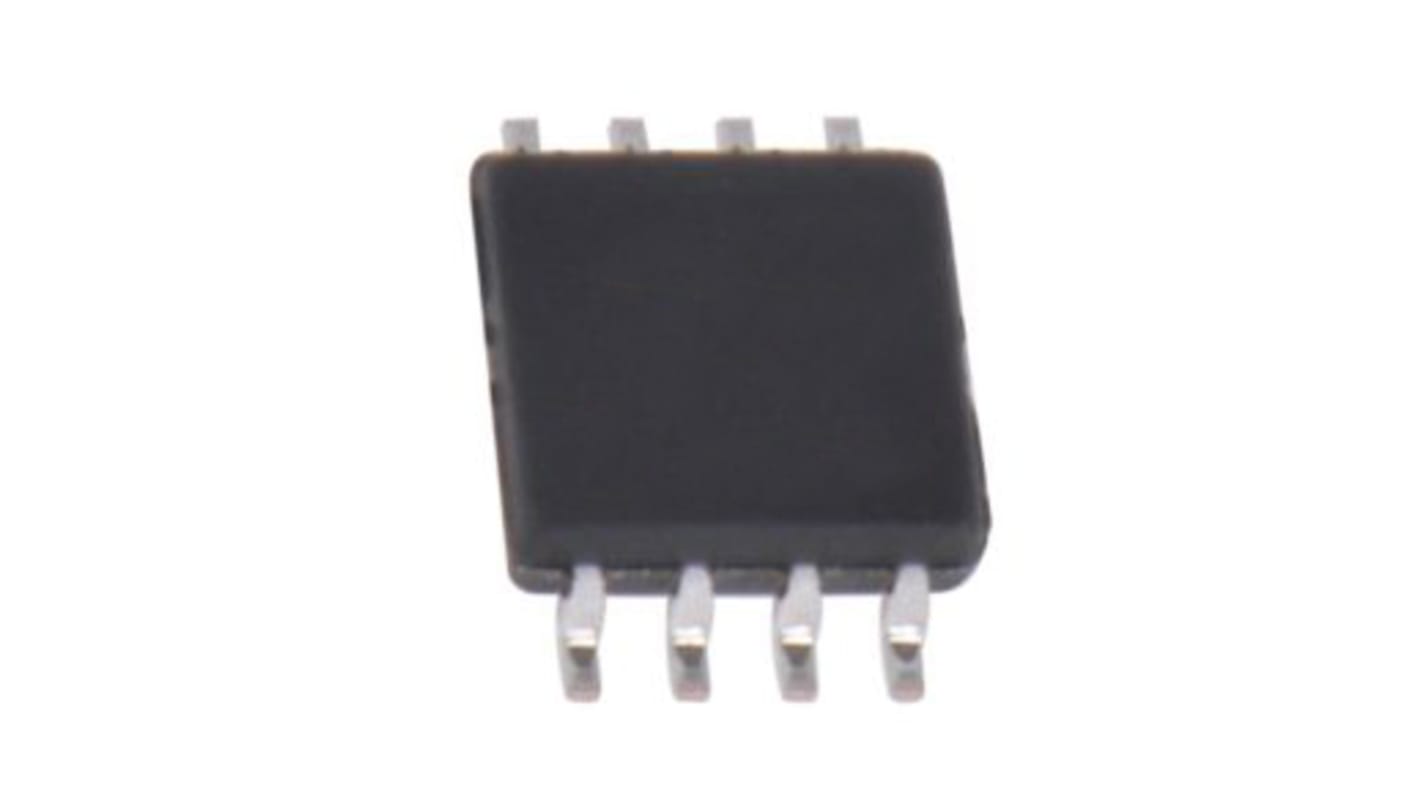

The MC100ELT23 is a dual differential PECL to TTL translator. Because PECL (Positive ECL) levels are used, only +5 V and ground are required. The small outline 8-lead package and the dual gate design of the ELT23 makes it ideal for applications which require the translation of a clock and a data signal. The PECL inputs are differential, therefore, the MC100ELT23 can accept any standard differential PECL input referenced from a VCC of 5.0 V.
3.5ns Typical Propagation Delay
24mA TTL Outputs
Flow Through Pinouts
ESD Protection: > 2 KV HBM, > 400 V MM
The 100 Series Contains Temperature Compensation
Operating Range VCC= 4.75 V to 5.25 V with GND= 0 V
Internal Input Pulldown Resistors
Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D
Transistor Count = 91 devices
24mA TTL Outputs
Flow Through Pinouts
ESD Protection: > 2 KV HBM, > 400 V MM
The 100 Series Contains Temperature Compensation
Operating Range VCC= 4.75 V to 5.25 V with GND= 0 V
Internal Input Pulldown Resistors
Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D
Transistor Count = 91 devices
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Package Type | TSSOP |
Pin Count | 8 |
Output Type | TTL |
Logic Function | Translator |
Dimensions | 3.1 x 3.1 x 1.95mm |
Maximum Low Level Output Current | 24mA |
Maximum High Level Output Current | -3mA |
Propagation Delay Test Condition | 20pF |
Maximum Operating Supply Voltage | 5.25 V |
Maximum Propagation Delay Time @ Maximum CL | 5.5 ns @ 20 pF |
Maximum Operating Temperature | +85 °C |
Minimum Operating Supply Voltage | 4.75 V |
Minimum Operating Temperature | -40 °C |
