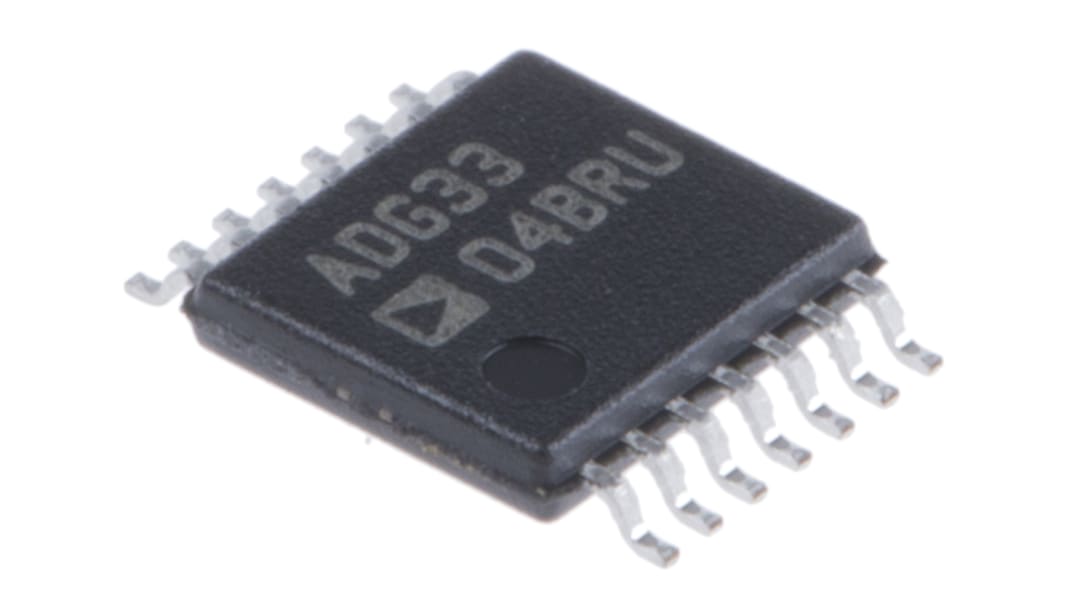

Analog Devices ADG3304BRUZ, Logic Level Translator Level Translator, 14-Pin TSSOP
- RS Stock No.:
- 412-826
- Mfr. Part No.:
- ADG3304BRUZ
- Brand:
- Analog Devices
Discontinued product
- RS Stock No.:
- 412-826
- Mfr. Part No.:
- ADG3304BRUZ
- Brand:
- Analog Devices
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Output Type | 3 State | |
| Pin Count | 14 | |
| Dimensions | 5 x 4.4 x 1mm | |
| Logic Function | Level Translator | |
| Maximum Low Level Output Current | 0.02mA | |
| Maximum High Level Output Current | -0.02mA | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum Propagation Delay Time @ Maximum CL | 25 ns @ 1.8 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 1.15 V | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Output Type 3 State | ||
Pin Count 14 | ||
Dimensions 5 x 4.4 x 1mm | ||
Logic Function Level Translator | ||
Maximum Low Level Output Current 0.02mA | ||
Maximum High Level Output Current -0.02mA | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum Propagation Delay Time @ Maximum CL 25 ns @ 1.8 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 1.15 V | ||
Minimum Operating Temperature -40 °C | ||
