NKK's full line of toggles features both PC board and panel mounting options available with a full array of actuator options and terminations to meet virtually any application. Subminiature and ultra-miniature to dual seal waterproof and high-capacity toggle switches are offered. Matching indicators are available. Designed to perform and withstand extreme environments for critical applications such as construction equipment, transportation, and medical equipment. Our waterproof toggle switch is great for marine applications.

Angle PC Mount Miniature Toggles

6A Power Level & 0.4VA Logic Level
Anti-jamming actuator design protects against mechanism damage from downward force on toggle.
Single unit construction of the bushing and top of the housing gives protection from cleaning fluids or other fluids.
O-ring surrounding actuator at top of bushing interior prevents liquids from reaching switch mechanism

Select all	Attribute	Value
	Brand	NKK Switches
	Contact Configuration	SPDT
	Switch Operation	On-Off
	Contact Current Rating	6 A
	Mounting Type	PCB
	Terminal Type	Through Hole
	IP Rating	IP67
	Illuminated	No
	Actuator Length	10.5mm
	Voltage Rating	125V ac
	Contact Resistance	10mΩ
	Contact Material	Silver (Stationary), Silver Alloy (Movable)
	Minimum Operating Temperature	-30°C
	Operating Temperature Range	-30 → +85°C
	Maximum Operating Temperature	+85°C

	Select all
	Brand NKK Switches
	Contact Configuration SPDT
	Switch Operation On-Off
	Contact Current Rating 6 A
	Mounting Type PCB
	Terminal Type Through Hole
	IP Rating IP67
	Illuminated No
	Actuator Length 10.5mm
	Voltage Rating 125V ac
	Contact Resistance 10mΩ
	Contact Material Silver (Stationary), Silver Alloy (Movable)
	Minimum Operating Temperature -30°C
	Operating Temperature Range -30 → +85°C
	Maximum Operating Temperature +85°C

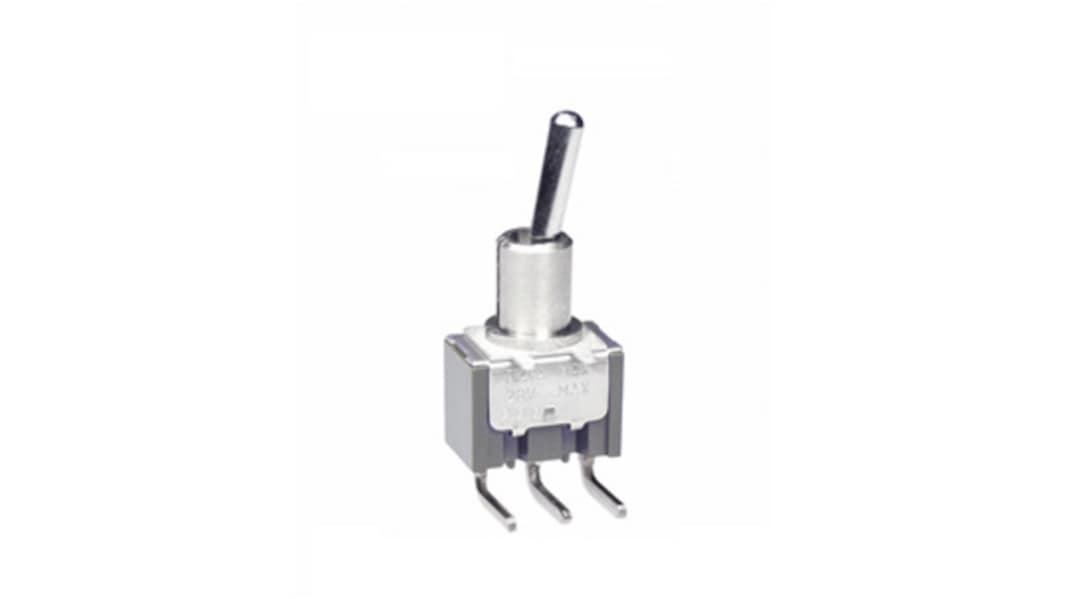

NKK Switches Toggle Switch, PCB Mount, On-Off, SPDT, Through Hole Terminal, 125V ac
