Jumo Capillary Thermostat, 80 °C Max Snap Action Switch, Automatic Reset, 1 NO/1 NC, 16 A, Wall Mount

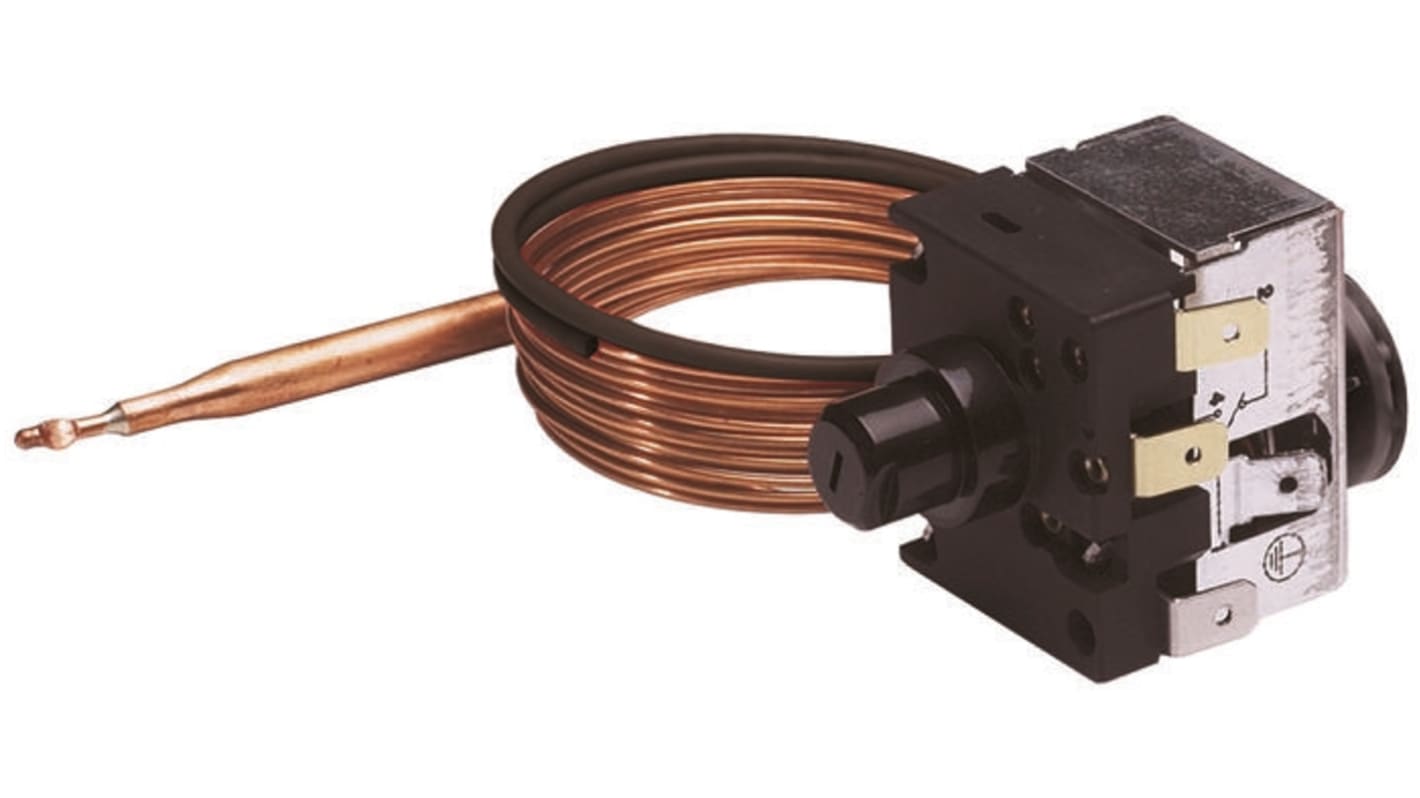

This image is representative of the product range

View all Thermostatic Switches
Bulk discount available

Subtotal (1 unit)*

$118.49

(exc. GST)

$130.34

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 19 unit(s) shipping from 11 March 2026
  • Plus 11 unit(s) shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4$118.49
5 - 9$117.34
10 +$115.82

*price indicative

RS Stock No.:
518-4377
Mfr. Part No.:
602031/80-000-100-00-2000-40-10-6-40-13-460/707,
Brand:
Jumo
Find similar products by selecting one or more attributes.
Select all

Brand

Jumo

Minimum Operating Temperature

-40°C

Product Type

Thermostat

Maximum Operating Temperature

80°C

Thermostat Type

Capillary

Contact Configuration

1 NO/1 NC

Terminal Type

Quick Connect

Contact Current

16A

Hazardous Area Certification

No

Series

JUMO heatTHERM

Standards/Approvals

DIN EN 14597, UL 873, DIN EN ISO 13849-1, RoHS, 97/23/EC (DGRL), UL 353

Mount Type

Wall Mount

Switch Function

Snap Action Switch

Reset Type

Automatic

RoHS Status: Exempt

COO (Country of Origin):
DE

heatTHERM - safety temperature limiter


Safety temperature limiter, as integrated thermostat

Power reset lock

Self-monitoring

Compensates for ambient temperature

Tested in accordance with DIN 3440 and pressure equipment directive 97/23/EC

Changeover contact output

Approvals

  CE, VDE, DGRL 97/23/EC

Standards

  DIN-tested
