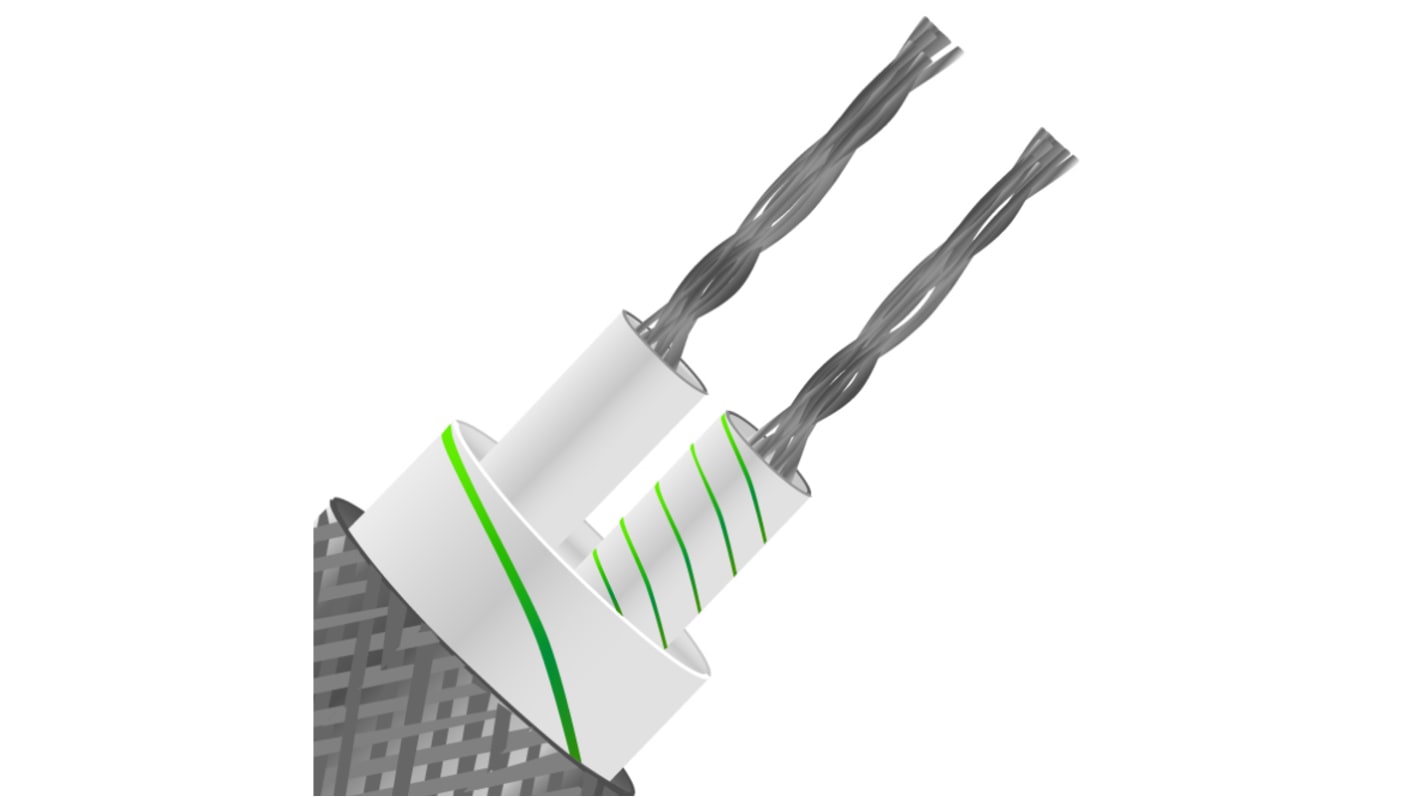

Thermocouple & Extension Wire Type K, -60 → +350 °C 2 Core Glass Fibre Sheath 50m

  • RS Stock No. 827-5867
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Glassfibre Flat Pair Thermocouple Cables

Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3

Glassfibre insulated flat pair cables in thermocouple types; K, J N or T. Types KX & TX are available in solid 1/0.3mm, JX in 7/0.2mm stranded conductors. Glassfibre insulated flat pair construction, with glassfibre jacket and silicone varnish throughout. The thermocouple cables are also available with a stainless steel overbraid for added protection.

Note

Available in different reel lengths.

Specifications
Attribute Value
Thermocouple Type K
Number of Cores 2
Length 50m
Minimum Operating Temperature -60°C
Maximum Operating Temperature +350°C
Core Strands 7/0.2 mm
Insulation Material Glass Fibre
Cable Shape Flat Pair
Number of Strands 7
Size of Strands 0.2 mm
Standards Met IEC 584-3, RoHS Compliant
5 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 198.73
(exc. GST)
$ 218.60
(inc. GST)
units
Per unit
1 - 9
$198.73
10 - 19
$193.77
20 +
$188.65
