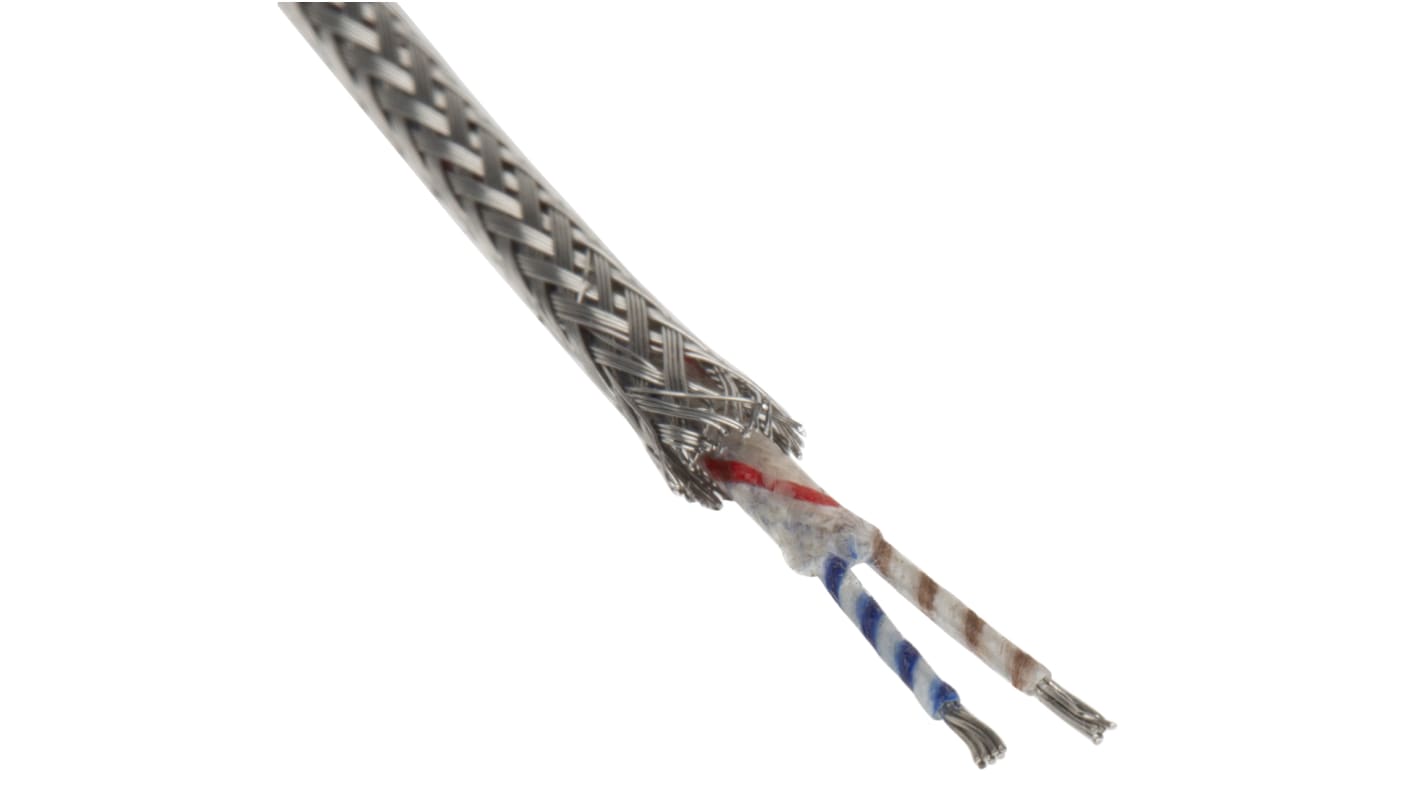

RS PRO Type K Thermocouple Wire, 25m, Glass Fibre Insulation, +350°C Max, 7/0.2mm

RS Stock No.:: 827-5704
Brand:: RS PRO

RS PRO Type K Thermocouple Wire, 25m, Glass Fibre Insulation, +350°C Max, 7/0.2mm

8 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$284.13

(exc. GST)

$312.54

(inc. GST)

Units	Per unit
1 - 9	$284.13
10 - 49	$280.66
50 +	$230.99

RS Stock No.:: 827-5704
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Glassfibre Flat Pair Thermocouple Cables

Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3

Glassfibre insulated flat pair cables in thermocouple types; K, J N or T. Types KX & TX are available in solid 1/0.3mm, JX in 7/0.2mm stranded conductors. Glassfibre insulated flat pair construction, with glassfibre jacket and silicone varnish throughout. The thermocouple cables are also available with a stainless steel overbraid for added protection.

Note

Available in different reel lengths.

Specifications

Attribute	Value
Length	25m
Insulation Material	Glass Fibre
Maximum Operating Temperature	+350°C
Thermocouple Type	K
Core Strands	7/0.2mm
Cable Shape	Flat Pair
Number of Strands	2
Standards Met	BS
