- RS Stock No.:
- 206-6116
- Mfr. Part No.:
- FLK-TIS20+ MAX 9HZ
- Brand:
- Fluke
4 In stock for delivery within 1 working day(s)
Added
Price (ex. GST) Each
$3,178.00
(exc. GST)
$3,495.80
(inc. GST)
Units | Per unit |
1 + | $3,178.00 |
- RS Stock No.:
- 206-6116
- Mfr. Part No.:
- FLK-TIS20+ MAX 9HZ
- Brand:
- Fluke
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

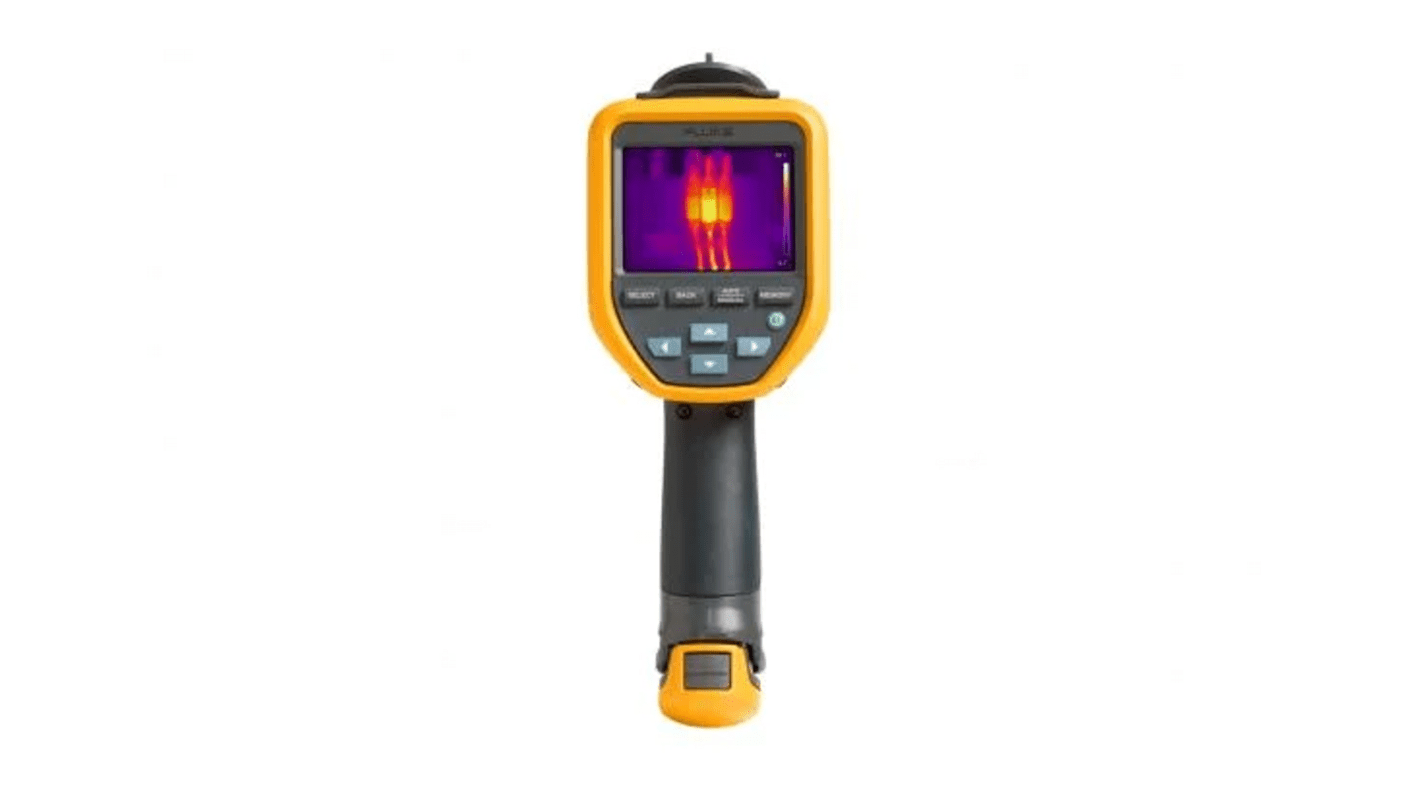

FLUKE Thermal Imaging Camera, Fixed Focus Type, 60mK Thermal Sensitivity - FLK-TIS20+ MAX 9HZ
Get the full picture of hidden issues inside your industrial equipment with this thermal imaging camera from FLUKE. It's a handy bit of kit that detects temperature differentials in areas that are challenging to reach, so you get accurate diagnostics in a jiffy. It's easy to navigate between settings, thanks to a responsive touchscreen display that puts the power in your hands. An IP54 rating indicates this device is protected from dust and water spray from every direction, meaning it's just the job for use in demanding settings. As you receive readings with up to ±2°C temperature accuracy, you can be sure of precision performance.
Features & Benefits
• Large 3.5in LCD screen presents information with high clarity
• Inbuilt 4GB memory and SD card slot for generous data storage
• Automatic shutdown options to extend battery life
• Performs reliably in temperatures between -10°C and +50°C
• Robust housing withstands a drop from 2m, ensuring a long service life
• Inbuilt 4GB memory and SD card slot for generous data storage
• Automatic shutdown options to extend battery life
• Performs reliably in temperatures between -10°C and +50°C
• Robust housing withstands a drop from 2m, ensuring a long service life
Applications
• Electrical engineering
• Automotive industry
• Medical equipment
• Automotive industry
• Medical equipment
What's the battery life of this component?
This thermal imaging camera has a five-hour battery life, so it's ideal for taking measurements in the field.
How much does this device weigh?
This unit only weighs 720g, so it's comfortable to handle.
Supplied with
Infrared camera
AC power supply (including universal AC adapters)
Rugged lithium-ion smart battery
USB cable
Soft transport bag
Available by free download: Fluke Connect Desktop software and user manual
AC power supply (including universal AC adapters)
Rugged lithium-ion smart battery
USB cable
Soft transport bag
Available by free download: Fluke Connect Desktop software and user manual
Specifications
Attribute | Value |
---|---|
Temperature Measurement Range | -20 → +400 °C |
Detector Resolution | 120 x 90pixel |
Display Resolution | 320 x 240pixel |
Model Number | TiS20+ MAX 9HZ |
Thermal Sensitivity | 60mK |
Best Temperature Measurement Accuracy | ± 2 °C |
Focus Type | Fixed |
Refresh Rate | 9Hz |
Minimum Focus Distance | 0.5m |
Display Size | 3.5in |
Maximum Temperature Measurement | +400 °C |
Model Number p | TiS20+ MAX 9HZ |
Minimum Focus | 0.5 m |
Depth | 267mm |
Horizontal Field of View | 50° |
Vertical Detector Resolution | 90pixel |
Weight | 0.72kg |
Vertical Field of View | 38° |
Field of View | 50° H x 38° V |
Vertical Display Resolution | 240pixel |
Application | Electrical maintenance |
Supplied Software | Fluke Connect Desktop Software |
Optional Software | Fluke Connect App for iOS/Android |
Horizontal Detector Resolution | 120pixel |
Image Storage | Internal Memory 4 GB |
Other Built-in Measurements | None |
Dimensions L x W x D | 145 x 101 x 267mm |
Accuracy | ±2 % |
Radiometric Video on Camera | Yes |
Spatial Resolution IFOV | 7.6mrad |
