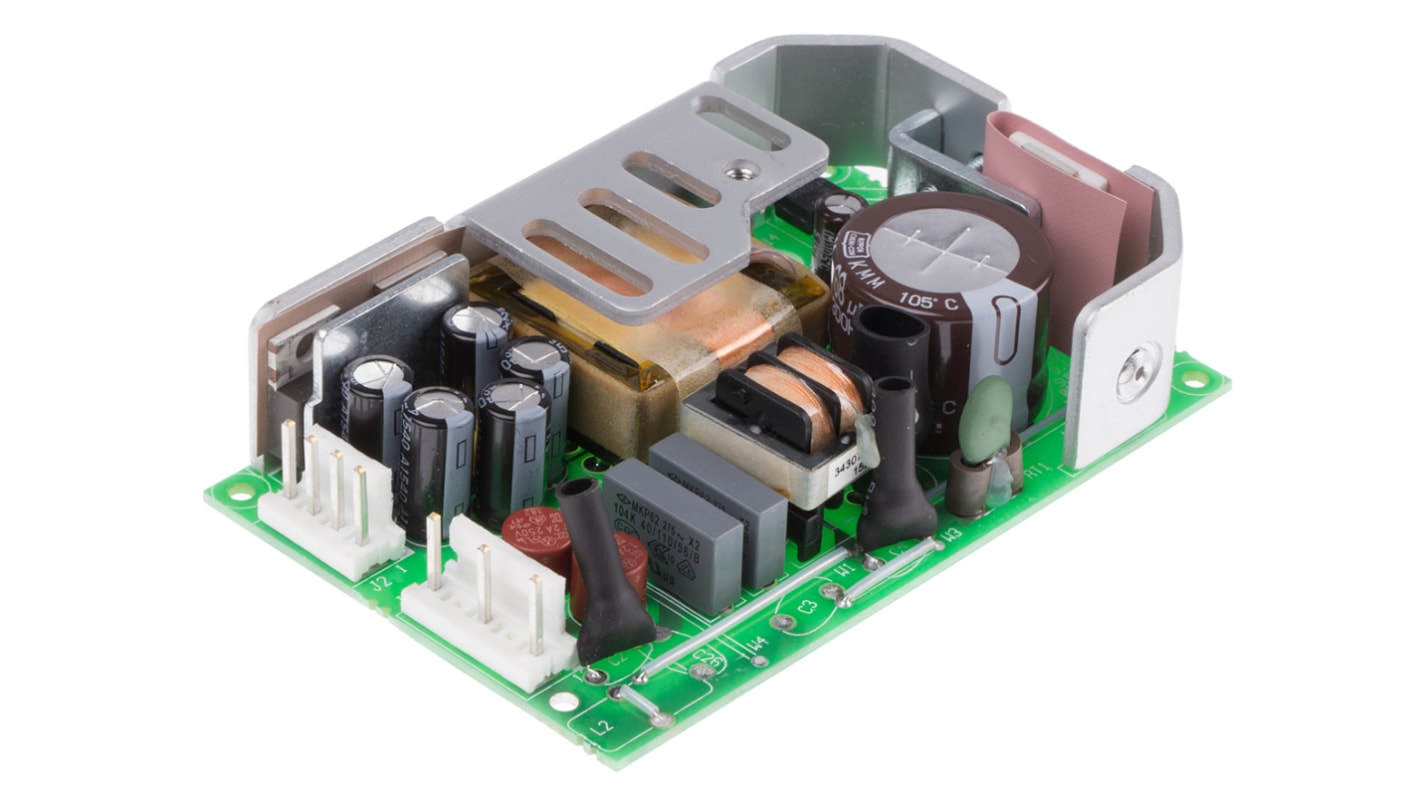

SL POWER CONDOR Switching Power Supply, GSM28-12G, 12V dc, 2.3A, 28W, 1 Output, 90 → 264V ac Input Voltage

RS Stock No.:: 848-4702
Mfr. Part No.:: GSM28-12G
Brand:: SL POWER CONDOR

SL POWER CONDOR Switching Power Supply, GSM28-12G, 12V dc, 2.3A, 28W, 1 Output, 90 → 264V ac Input Voltage

1 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$194.62

(exc. GST)

$214.08

(inc. GST)

Units	Per unit
1 - 9	$194.62
10 - 49	$189.24
50 +	$155.75

RS Stock No.:: 848-4702
Mfr. Part No.:: GSM28-12G
Brand:: SL POWER CONDOR

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

Switch Mode, Single Output, Medical Power Supply, GSM28 Series

The SL Power Electronics GSM28 family is a series of single output, medical open-frame AC/DC power supplies. These switch mode power supplies come in a very small size of 2.50 x 4.25 x 0.86 inches, the GSM28 provides 28W continuous, or 32W peak for a maximum duration of 60 seconds, with up to 70% efficiency. The GSM28 medical power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit and output overload. The GSM28 series of switching power supplies are ideal for medical applications.

Industry’s smallest 28W medically approved switcher
EMI to FCC, CISPR 11 Class B/IEC601-1-2
Overvoltage protection standard
RoHS compliant
CE marked to LVD

Standards

UL2601-1, EN60601-1

Approvals

UL, EN

Switch Mode - SL Power

Specifications

Attribute	Value
Output Voltage	12V dc
Output Current	2.3A
Power Rating	28W
Number of Outputs	1
Input Voltage	90 → 264V ac
Mounting Type	Chassis Mount
Package Type	Open Frame
Length	101.6mm
Width	65.08mm
Depth	65.8mm
