MEAN WELL Switching Power Supply, MFM-05-12, 12V dc, 420mA, 5W, 1 Output, 80 → 264V ac Input Voltage
- RS Stock No.:
- 174-8024
- Mfr. Part No.:
- MFM-05-12
- Brand:
- MEAN WELL
40 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$17.94
(exc. GST)
$19.73
(inc. GST)
Units | Per unit |
1 - 9 | $17.94 |
10 - 49 | $17.78 |
50 + | $17.35 |
- RS Stock No.:
- 174-8024
- Mfr. Part No.:
- MFM-05-12
- Brand:
- MEAN WELL
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

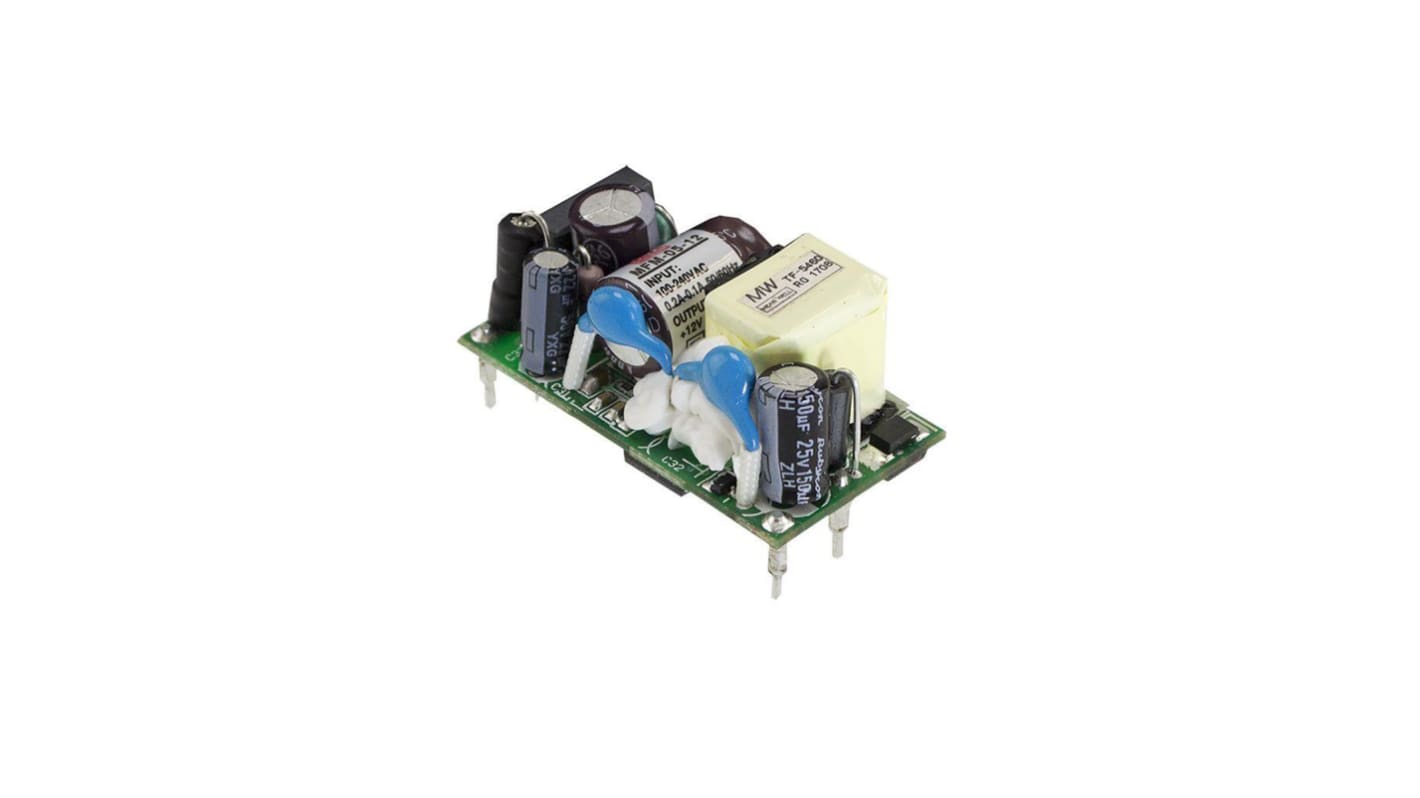

Mean Well Embedded Switch Mode Power Supply
The Mean Well 5W is a PCB mount medical open frame power supply. It operates on 80VAC to 264VAC voltage supply. It outputs DC voltage of 12V and with 0.42A current rating. It is a single output power supply. This device has a wide operating temperature range between -40°C and 85°C.
Features and Benefits
• 5G anti vibration
• Compact size
• High efficiency up to 82%
• Optimum EMC performance
• Power consumption less than 0.075W
• Protection against short circuit
• Ultra low leakage current
• Compact size
• High efficiency up to 82%
• Optimum EMC performance
• Power consumption less than 0.075W
• Protection against short circuit
• Ultra low leakage current
Applications
• Medical instruments
• Mobile clinical workstations
• Mobile clinical workstations
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Output Current | 420mA |
Power Rating | 5W |
Number of Outputs | 1 |
Input Voltage | 80 → 264V ac |
Mounting Type | PCB Mount |
Length | 42mm |
Width | 22.3mm |
Medical Approved | Yes |
Depth | 16mm |
Weight | 18g |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
