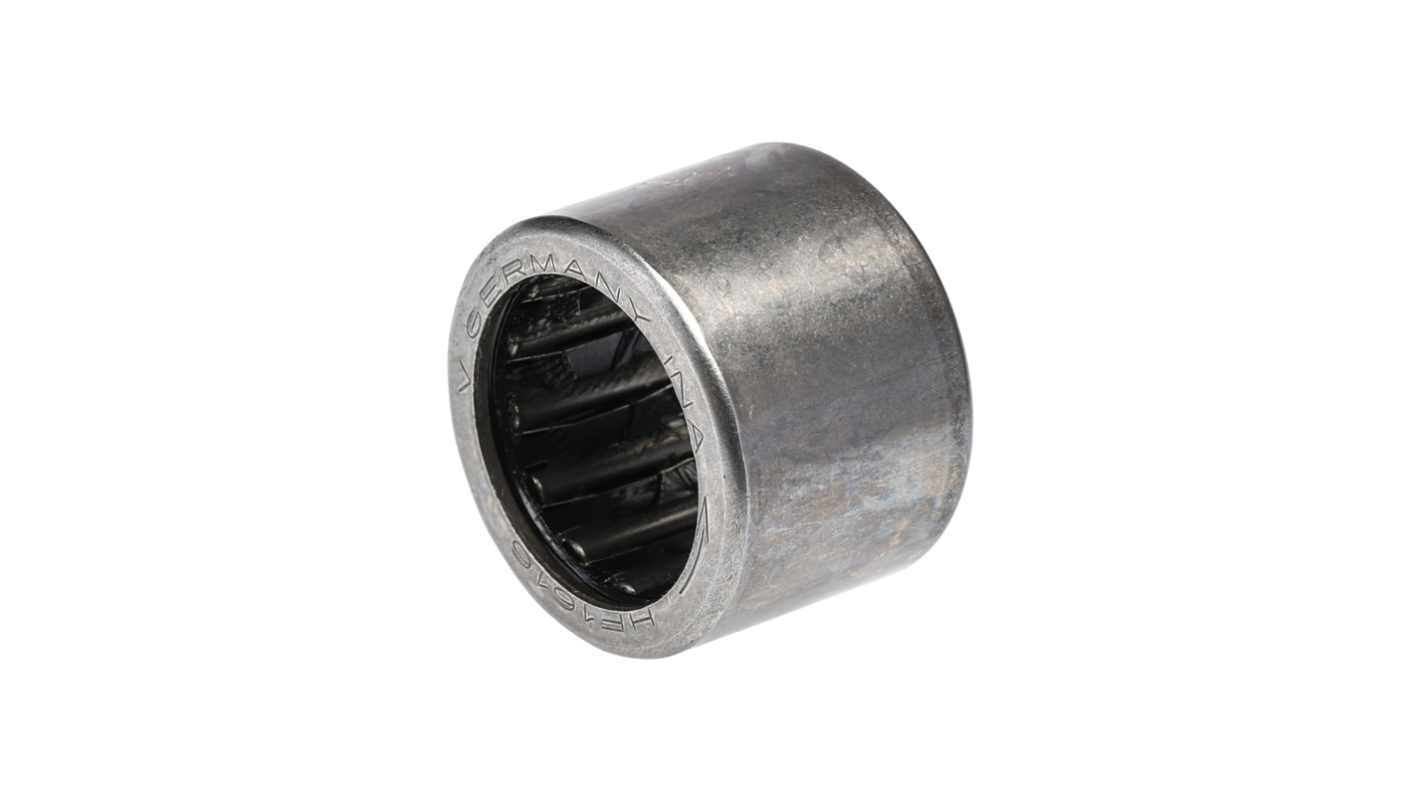

INA HF1616-L564 Sprag Clutch Bearing 16mm I.D., 22mm O.D., 16mm Race Width

RS Stock No.:: 137-1789
Mfr. Part No.:: HF1616-L564
Brand:: INA

INA HF1616-L564 Sprag Clutch Bearing 16mm I.D., 22mm O.D., 16mm Race Width

View this category

Bulk discount available

Subtotal (1 unit)**

$17.42

(exc. GST)

$19.16

(inc. GST)

5 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 12	$17.42
13 - 24	$16.92
25 +	$16.70

**price indicative

RS Stock No.:: 137-1789
Mfr. Part No.:: HF1616-L564
Brand:: INA

Schaeffler HF1616-L564 Sprag Clutch Bearing, 16mm Inside Diameter, 22mm Outside Diameter - HF1616-L564

This sprag clutch bearing is an essential industrial component designed to facilitate unidirectional motion. With an inside diameter of 16mm and an outside diameter of 22mm, it balances compact design with robust performance. The high torque rating of 20.5Nm and the high limiting speeds ensure efficient operation, making it suitable for various demanding applications.

Features & Benefits

• Utilises grease lubrication to ensure smooth operation
• Small design envelope for space-efficient applications
• High permissible torque enhances operational efficiency
• Designed for one-way functionality to support specific mechanical needs
• Incorporates standard steel pressure springs for reliable performance
• Non-sealed construction allows for easier maintenance

Applications

• Ideal for mechanical assemblies requiring precise engagement
• Suitable for in electronic devices with rotational components
• Commonly deployed in industrial machinery for reliable transmission
• Engaged in product lines demanding high torque for operational integrity

What are the operational temperature limits for this component?

The component can function optimally within a temperature range of -10°C to 70°C, ensuring versatility across various environments and applications.

How does this clutch handle the challenges of high-speed applications?

It features limiting speeds of up to 8,500 rpm for the rotating shaft and 7,500 rpm for the rotating outer ring, effectively managing high-speed operation without compromising performance.

What maintenance considerations should be noted for this bearing?

As it is not sealed, regular inspection and lubrication with L564 grease are recommended to maintain optimal performance and prolong the lifespan of the component.

How is the clutch's compact design beneficial in practical uses?

The small design envelope allows for integration in tight spaces without sacrificing functionality, making it ideal for complex machinery arrangements.

What role do the steel pressure springs play in performance?

They provide consistent engagement and disengagement of the clutch mechanism, ensuring reliable operation under varying load conditions while maintaining mechanical integrity.

INA

Find similar products by selecting one or more attributes.

	Select all
	Brand INA
	Inside Diameter 16mm
	Outside Diameter 22mm
	Torque 20.5Nm
	Race Width 16mm
