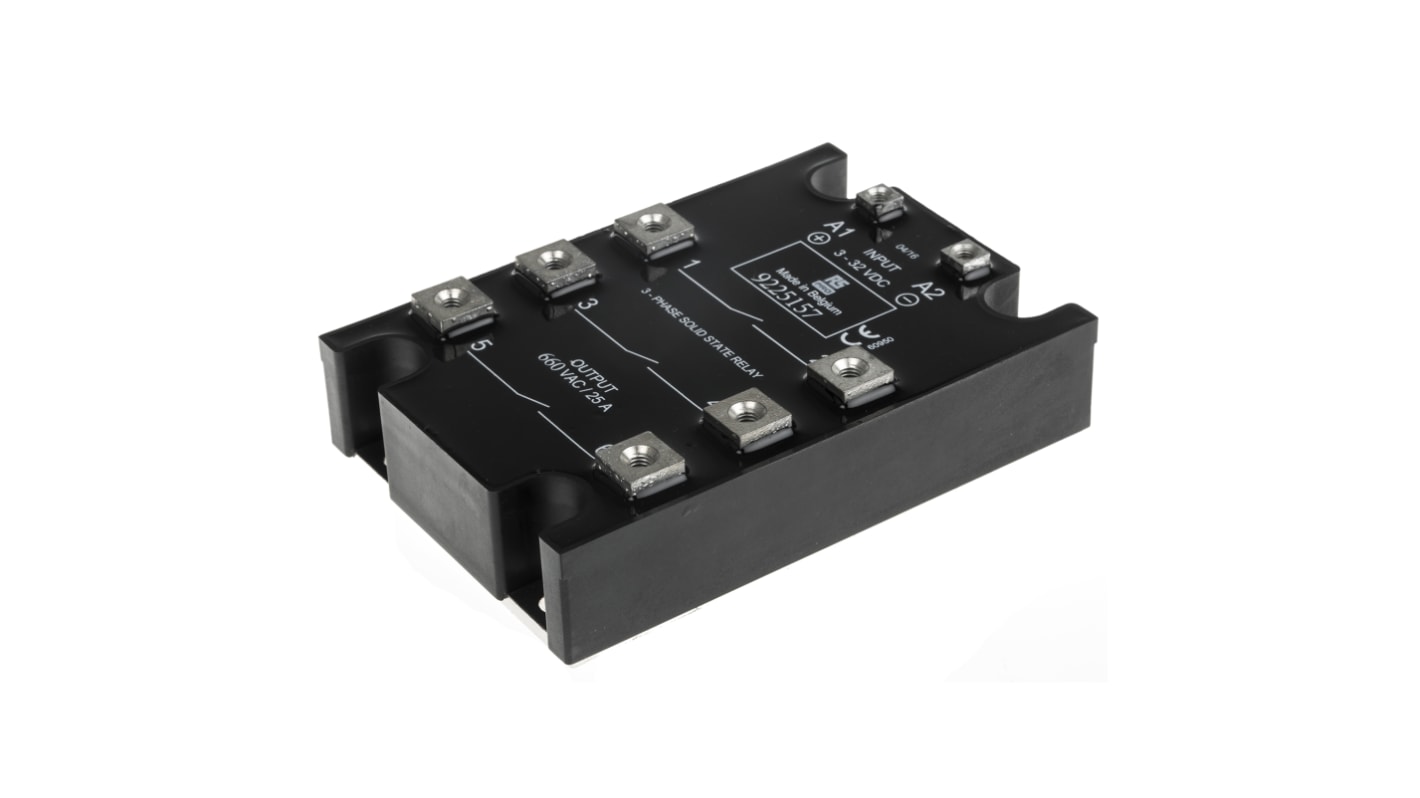

Name: RS PRO Solid State Relay, 25 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
Brand: RS PRO
SKU: 922-5157
Price: 340.22 AUD
Availability: Discontinued

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Maximum Load Current	25 A rms
	Mounting Type	Panel Mount
	Maximum Load Voltage	660 V ac
	Minimum Load Voltage	48 V ac
	Maximum Control Voltage	32 V dc
	Minimum Control Voltage	3 V dc
	Switching Type	Random
	Control Voltage Range	3 → 32 V dc
	Minimum Load Current	0.2 A
	Number of Poles	3
	Contact Configuration	3P-NO
	Terminal Type	Screw
	Output Device	Thyristor
	Relay Type	AC
	Load Voltage Range	48 → 660V ac
	Maximum Turn On Time	0.1ms
	Dimensions	107 x 73.5 x 27mm
	Depth	73.5mm
	Standards Met	CE
	Special Features	Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V
	Height	27mm
	Off State Leakage Current	10 mA
	Length	107mm
	Operating Temperature Range	-20 → +80°C

	Select all
	Brand RS PRO
	Maximum Load Current 25 A rms
	Mounting Type Panel Mount
	Maximum Load Voltage 660 V ac
	Minimum Load Voltage 48 V ac
	Maximum Control Voltage 32 V dc
	Minimum Control Voltage 3 V dc
	Switching Type Random
	Control Voltage Range 3 → 32 V dc
	Minimum Load Current 0.2 A
	Number of Poles 3
	Contact Configuration 3P-NO
	Terminal Type Screw
	Output Device Thyristor
	Relay Type AC
	Load Voltage Range 48 → 660V ac
	Maximum Turn On Time 0.1ms
	Dimensions 107 x 73.5 x 27mm
	Depth 73.5mm
	Standards Met CE
	Special Features Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V
	Height 27mm
	Off State Leakage Current 10 mA
	Length 107mm
	Operating Temperature Range -20 → +80°C

COO (Country of Origin):: BE

RS Pro WG A3 Series Three Phase SSR

RS Pro WG A3 series solid state relays are able to switch three phase loads with one control signal up to rated line currents of 45A and line voltages up to 480Vac. The WG A3 has high noise immunity and an internal overvoltage protection which becomes effective at 1000 V.

Zero cross or random switching
Maxi puck housing
Panel mounted
AC Loads
DC Input
3-Phase
