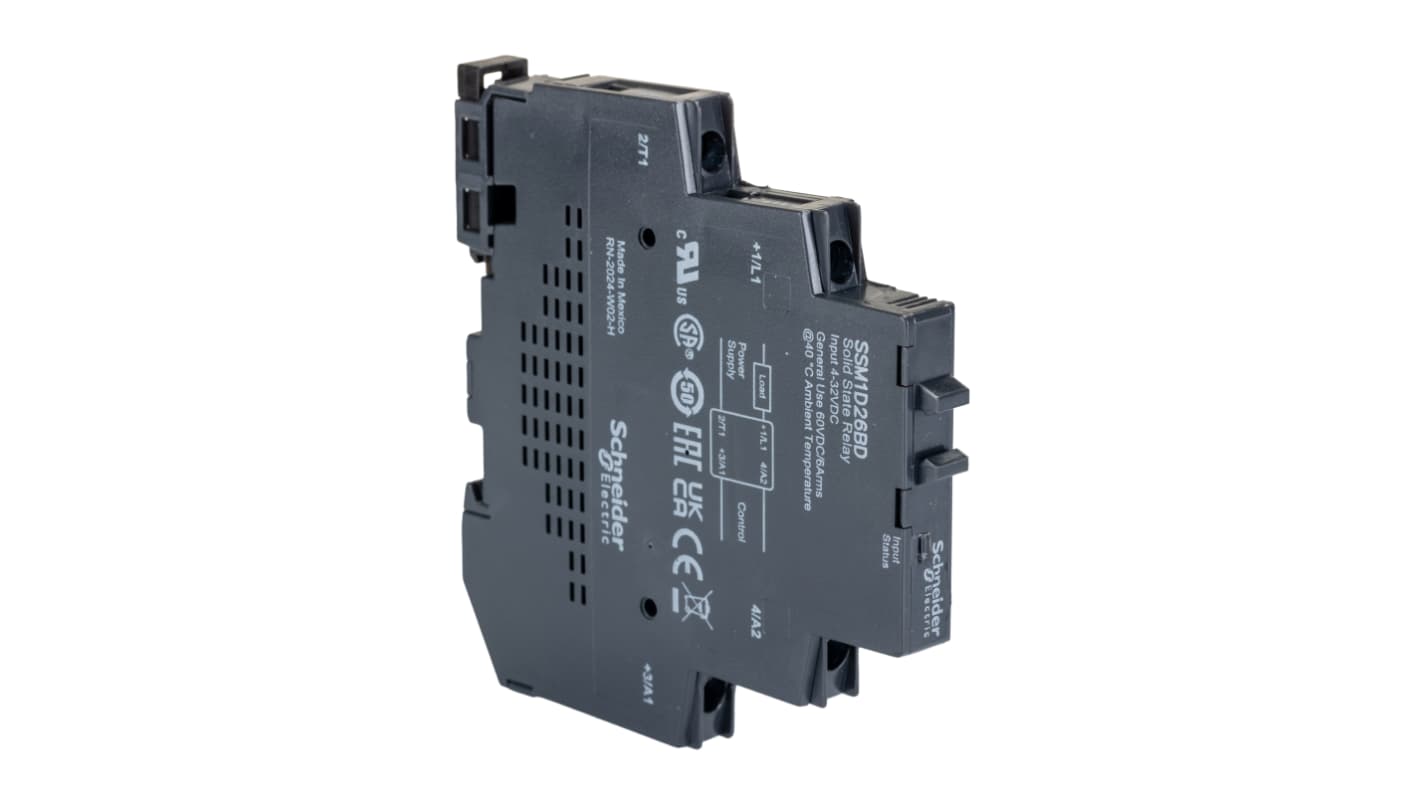

Schneider Electric 6 A SPNO Solid State Relay, DC Switching, DIN Rail, MOSFET, 60 V dc Maximum Load

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Zelio SSM Solid State Modular Relays

Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The SSM series DIN Rail mount relays offer a modular IP20 housing design with built in heatsink for optimised operating conditions.

Easy maintenance
IP20
High switching frequency
Resistance to shock, vibration and contamination
Long life span

Schneider Solid State Relays

Specifications
Attribute Value
Minimum Load Current 0.0025 A
Maximum Load Current 6 A
Mounting Type DIN Rail
Minimum Load Voltage 1 V dc
Maximum Load Voltage 60 V dc
Minimum Control Voltage 4 V dc
Maximum Control Voltage 32 V dc
Switching Type DC
Contact Configuration SPNO
Terminal Type Screw
Output Device MOSFET
Maximum Turn On Time 0.6 ms
Dimensions 11.02 x 83.7 x 87.66mm
Capacitance 10pF
Depth 83.7mm
Control Voltage Range 4 → 32 V dc
Operating Temperature Range -30 → +80°C
Load Voltage Range 1 → 60V dc
Off State Leakage Current 0.1 mA
Length 11.02mm
Height 87.66mm
Standards Met CE, CSA, UL
Special Features Integrated Heat Sinks for Effective Thermal Management & Space Savings
Number of Poles 1
Relay Type Single Channel Relay
22 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 56.84
(exc. GST)
$ 62.52
(inc. GST)
units
Per unit
1 +
$56.84
