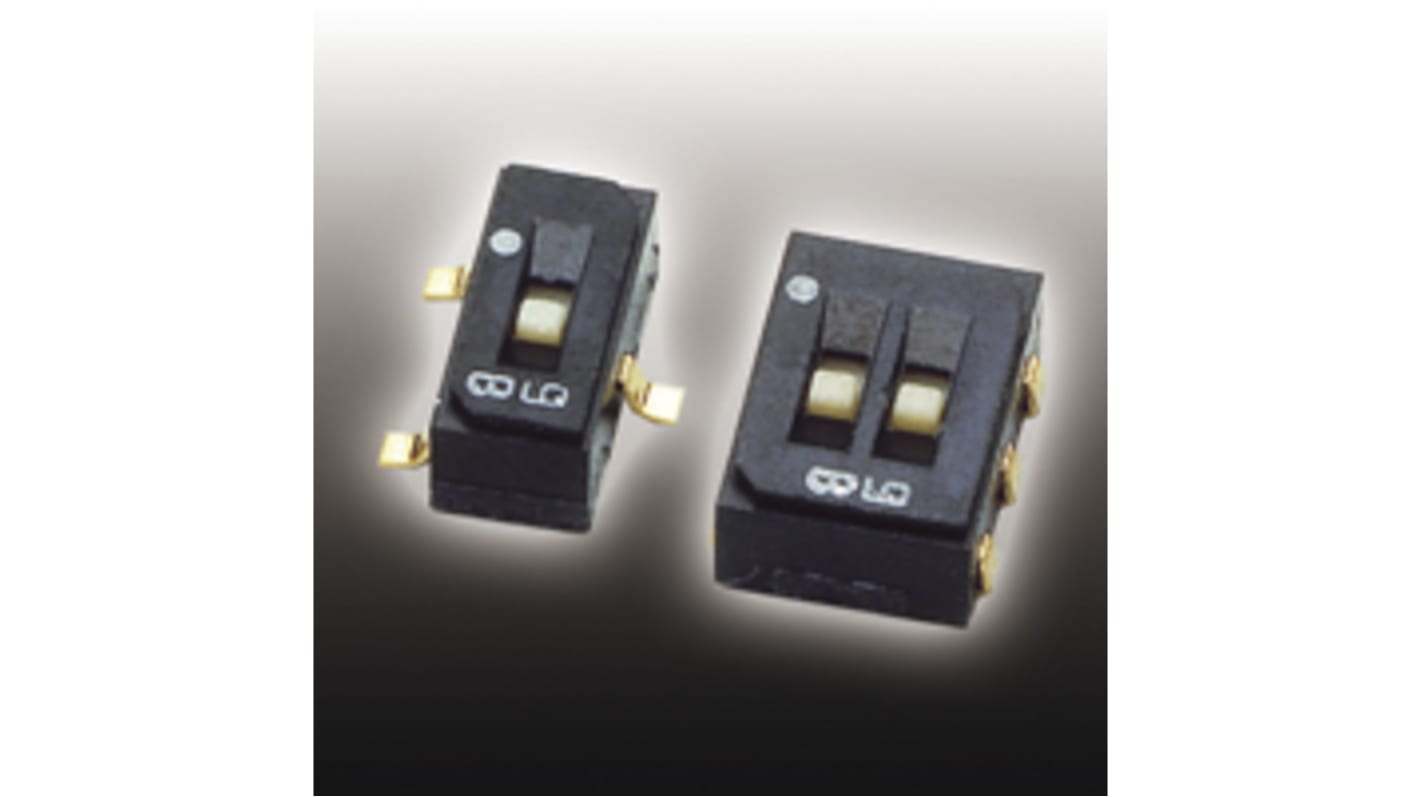

Surface Mount Slide Switch Dual SPDT 100 (Non-Switching) mA, 100 (Switching) mA Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Compatible with most automatic pick & place machinery
Compact and space saving SMD type
Excellent Contact stability by twin Gold-Plated Contact
Low profile Design of 2.5 mm

Specifications
Attribute Value
Contact Configuration Dual SPDT
Mounting Type Surface Mount
Contact Current Rating 100 (Non-Switching) mA, 100 (Switching) mA
Terminal Type Gull Wing
Actuator Type Slide
Length 5.4mm
Width 3.9mm
Depth 2.4mm
Dimensions 5.4 x 3.9 x 2.4mm
Contact Resistance 50mΩ
Maximum Operating Temperature +85°C
Voltage Rating 50
Minimum Operating Temperature -40°C
Actuator Material Polyamide
Operating Temperature Range -40 → +85°C
Contact Material Copper Alloy
190 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 5)
$ 6.364
(exc. GST)
$ 7.00
(inc. GST)
units
Per unit
Per Pack*
5 - 245
$6.364
$31.82
250 - 495
$5.918
$29.59
500 +
$5.606
$28.03
*price indicative
