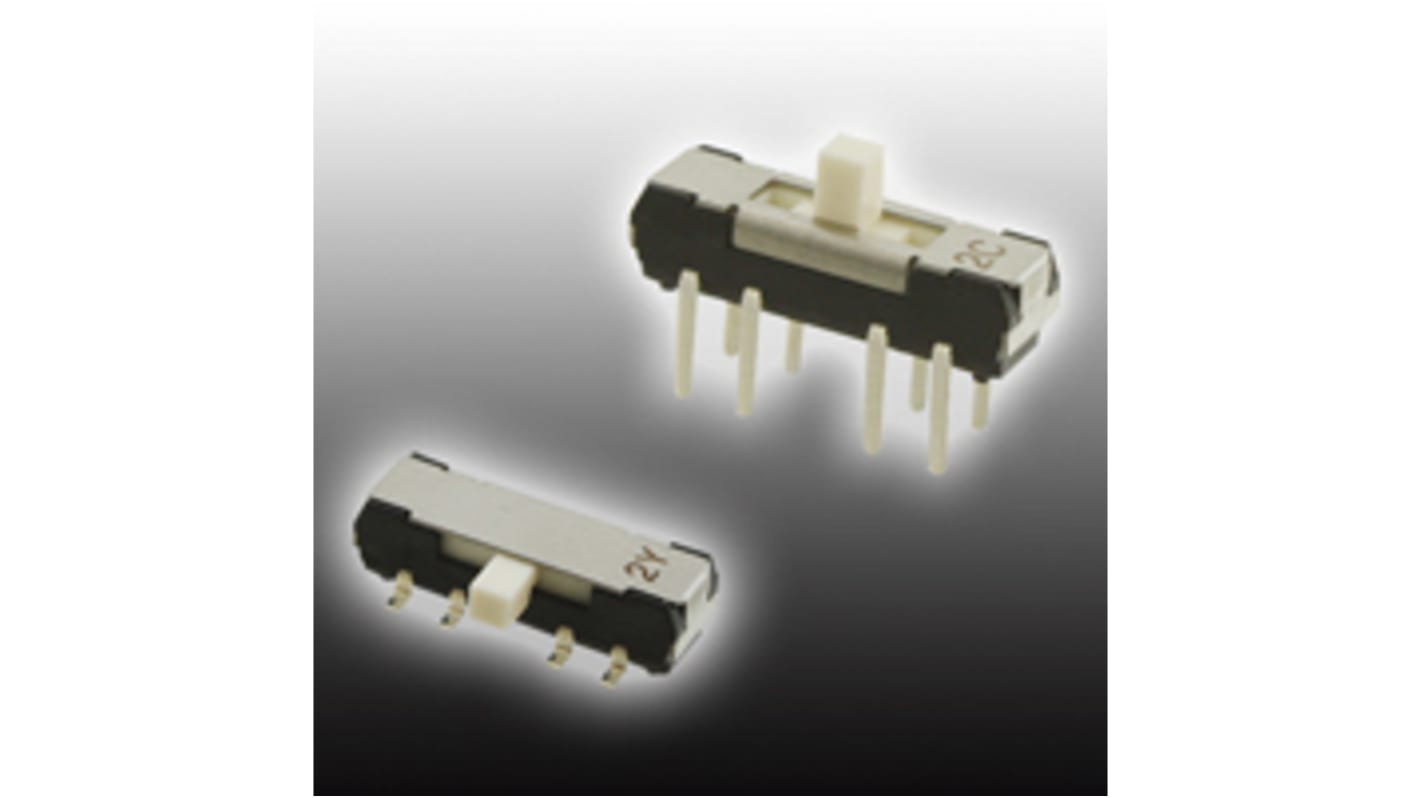

Through Hole Slide Switch Single Pole Double Throw (SPDT) 200 (Non-Switching) mA, 200 (Switching) mA Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Wide variety (circuit composition, Operation Direction, terminal shape: J-hook, Gull Wing, Through hole pins)
Standardization of the silver contacts as well as gold contacts
Stroke is 2 mm
Using heat-resistant resin to support reflow soldering mounting
Adopted Twin-contacts mechanism

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Mounting Type Through Hole
Contact Current Rating 200 (Non-Switching) mA, 200 (Switching) mA
Terminal Type PC Pin
Actuator Type Slide
Length 8.5mm
Width 3.5mm
Depth 3.5mm
Dimensions 8.5 x 3.5 x 3.5mm
Contact Resistance 70 (Gold)mΩ
Minimum Operating Temperature -40°C
Voltage Rating 50V dc
Contact Material Copper Alloy
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
Actuator Material Polyamide
80 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
$ 6.28
(exc. GST)
$ 6.91
(inc. GST)
units
Per unit
Per Pack*
5 - 245
$6.28
$31.40
250 - 495
$5.84
$29.20
500 +
$5.528
$27.64
*price indicative
