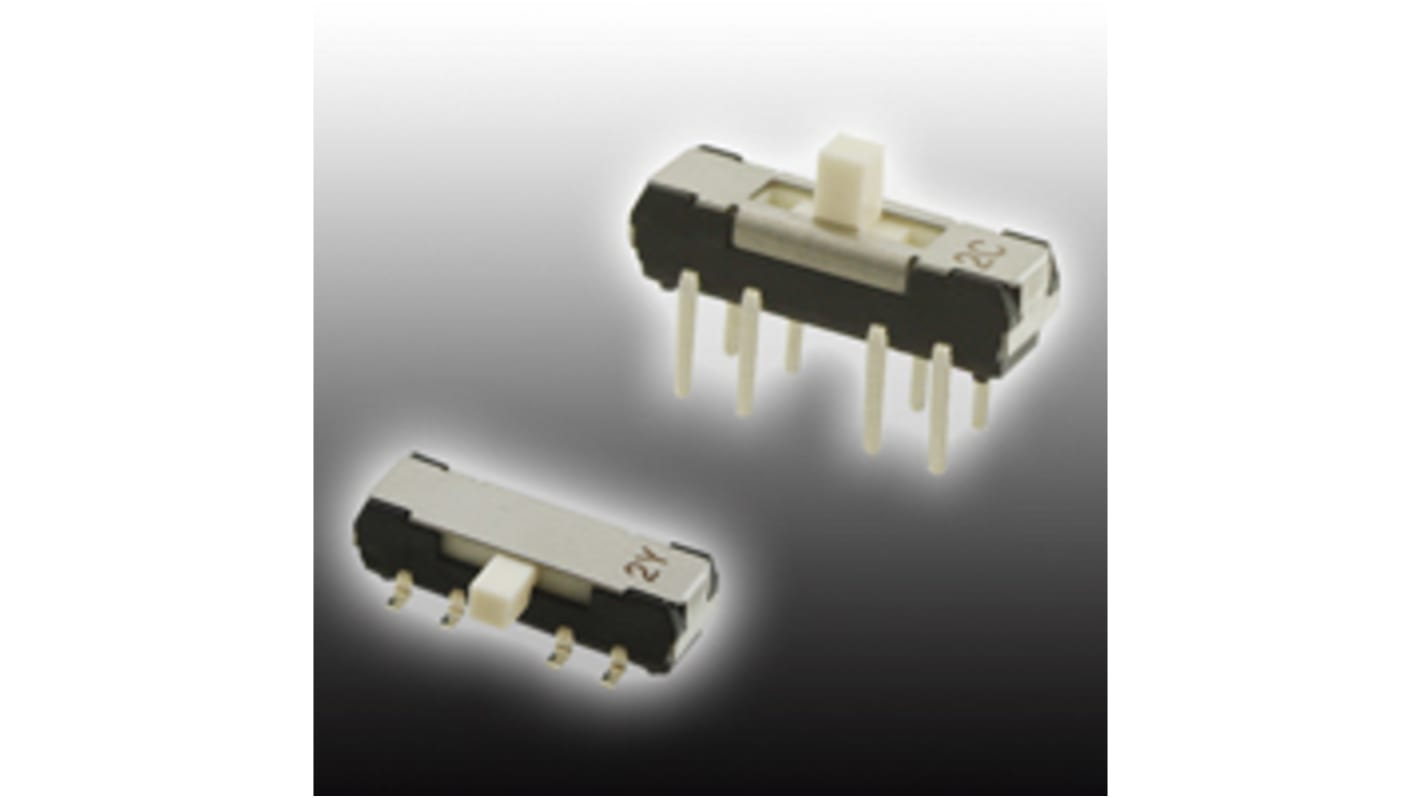

Nidec Components Surface Mount Slide Switch DPDT 200 (Non-Switching) mA, 200 (Switching) mA Slide

RS Stock No.:: 179-6793
Mfr. Part No.:: CL-SB-22B-02
Brand:: Nidec Components

Nidec Components Surface Mount Slide Switch DPDT 200 (Non-Switching) mA, 200 (Switching) mA Slide

Stock check temporarily unavailable - call for stock availability

Price (ex. GST) Each (In a Pack of 5)

$2.746

(exc. GST)

$3.021

(inc. GST)

Units	Per unit	Per Pack*
5 - 20	$2.746	$13.73
25 - 45	$2.674	$13.37
50 +	$2.636	$13.18

*price indicative

RS Stock No.:: 179-6793
Mfr. Part No.:: CL-SB-22B-02
Brand:: Nidec Components

Datasheet

Attribute	Value
Contact Configuration	DPDT
Mounting Type	Surface Mount
Contact Current Rating	200 (Non-Switching) mA, 200 (Switching) mA
Terminal Type	Gull Wing
Actuator Type	Slide
Length	8.5mm
Width	3.5mm
Depth	5.5mm
Dimensions	8.5 x 3.5 x 5.5mm
Contact Resistance	70 (Gold)mΩ
Voltage Rating	50V dc
Operating Temperature Range	-40 → +85°C
Actuator Material	Polyamide
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-40°C
Contact Material	Copper Alloy

Nidec Components Surface Mount Slide Switch DPDT 200 (Non-Switching) mA, 200 (Switching) mA Slide
