Omron PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

RS Stock No.:: 369-501
Distrelec Article No.:: 137-06-941
Mfr. Part No.:: G5V-2 DC12
Brand:: Omron

Omron PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)**

$5.18

(exc. GST)

$5.70

(inc. GST)

60 In AU stock for next working day delivery*

173 In Global stock for delivery within 5 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 24	$5.18
25 - 99	$4.91
100 - 249	$4.65
250 - 1249	$4.42
1250 +	$4.20

**price indicative

RS Stock No.:: 369-501
Distrelec Article No.:: 137-06-941
Mfr. Part No.:: G5V-2 DC12
Brand:: Omron

G5V-2 Series

Fully sealed for immersion cleaning
Conforms to BT Type 47 requirements, BT specification 4597
Ideal for signal switching applications

Approvals

UL, CSA conforms to FCC part 68

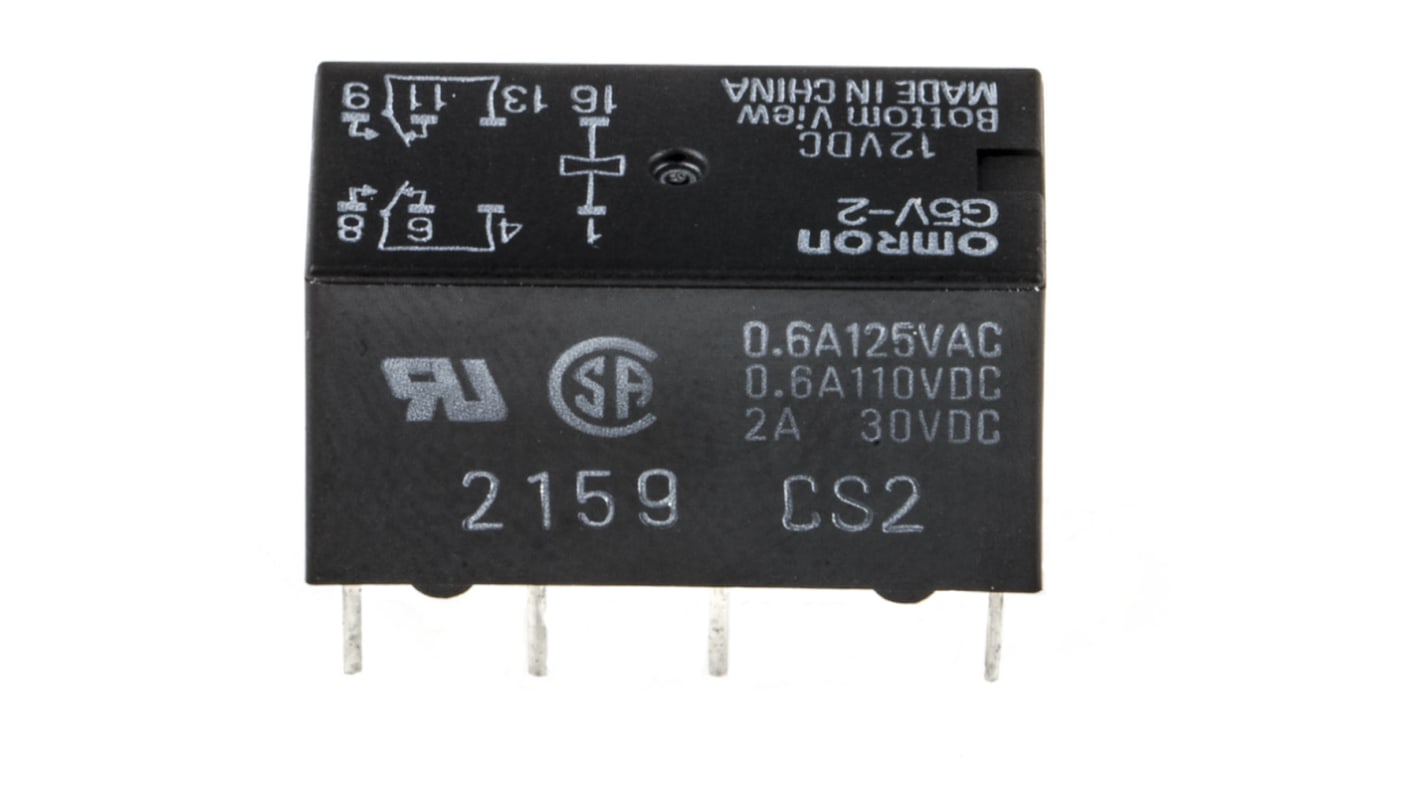

G5V-2 12DC Ultra-Miniature Low Signal Non-Latching Relay.

The Omron G5V-2 12DC is a small non-latching SPDT relay ideal for signal circuits. A completely sealed package providing excellent resistance to eternal environments. PCB terminals, switching power from 10 μA to 2 A plus 2 poles and high dielectric strength all add to this miniature relay.

Non-Latching Relay Features and Benefits.

• Standard relay.
• General purpose.
• Miniature size.
• Completely sealed.
• DPDT contacts.
• PCB Terminal.
• Bifurcated crossbar (Au-alloy+Ag).

Coil Rating.

• 12 V dc.
• Rated current 41.7 mA.
• Coil resistance 288 Ω.
• Inductance Armature OFF 0.47 H, Armature ON 0.74 H
• Must operate voltage 75% max (of rated voltage).
• Must release voltage 5% min (of rated voltage).
• Max voltage 120% of rated voltage (at 23°C).
• Approx power consumption 500 mW.

Contact Rating.

• Rated load 0.5 A (at 125 V ac), 2 A (at 30 V dc).
• Contact material Ag, Au-clad.
• Rated carry current 2 A.
• Switching current max 2 A.
• Switching voltage max 125 V ac, 125 V dc.
• Switching power max 62.5 VA, 60 W.
• Permissible load min 0.1 mA at 10 V dc.

Additional Features of the G5V-2 12DC Miniature Non-Latching Relay.

• Contact resistance 50 mΩ.
• Dielectric strength 1000 V ac, 50/60 Hz (1 min between coil and contacts).
• Dielectric strength 750 V ac, 50/60 Hz (1 min between contacts of the same polarity).
• Vibration resistance – destruction and malfunction 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
• Shock resistance – destruction 1000 m/s².
• Shock resistance – malfunction 200 m/s².
• Operating temperature – ambient -25°C to 65°C (no icing).
• Approx weight 5 g.

Applications Include.

• Telecommunication.
• Security equipment.
