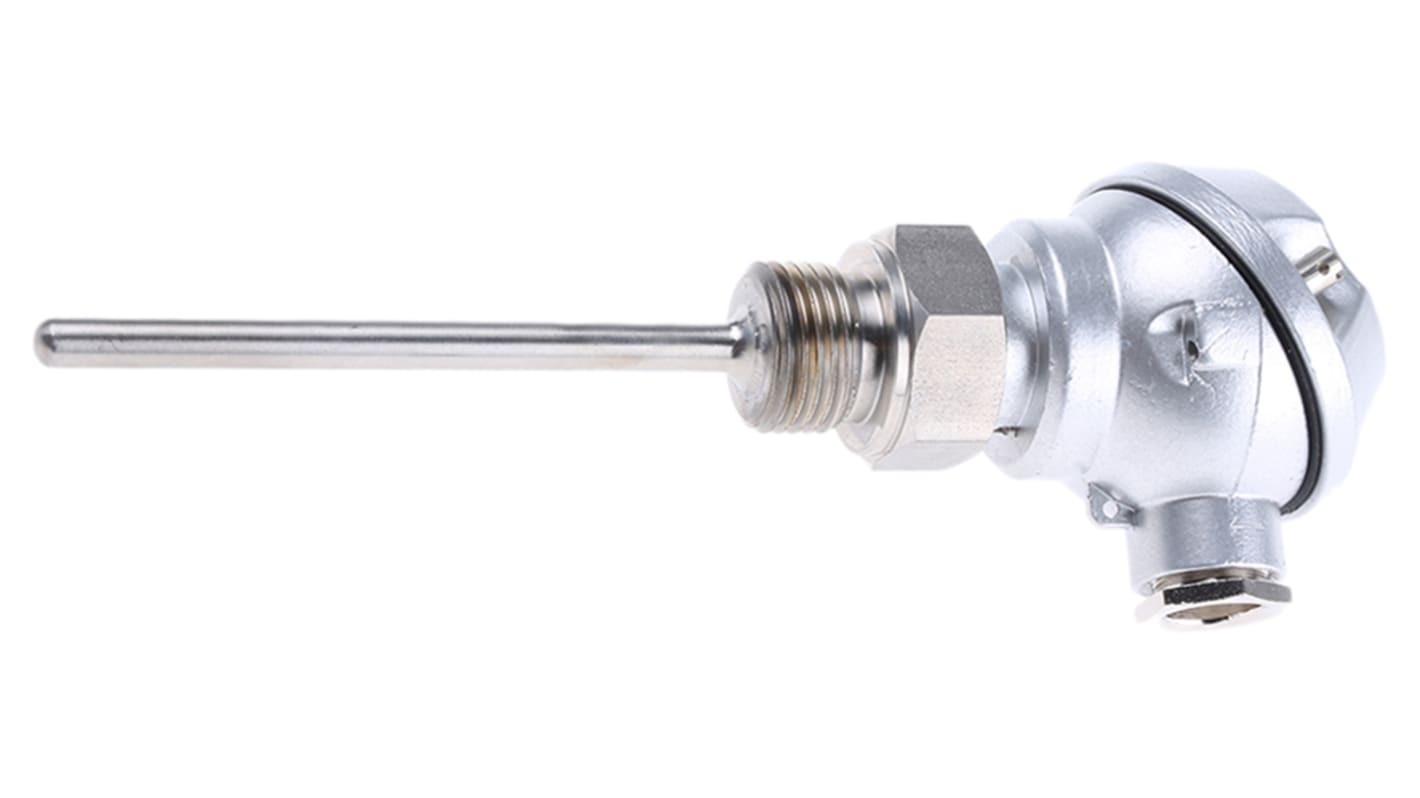

Correge PT100 RTD Sensor, 6mm Dia, 100mm Long, 3 Wire, G1/2, Class B +400°C Max
- RS Stock No.:
- 457-3681
- Mfr. Part No.:
- D03520
- Brand:
- Correge
7 In Global stock for delivery within 10 working day(s)
5 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$93.51
(exc. GST)
$102.86
(inc. GST)
| Units | Per unit |
| 1 + | $93.51 |
- RS Stock No.:
- 457-3681
- Mfr. Part No.:
- D03520
- Brand:
- Correge
Legislation and Compliance
Product Details
Pt100 probes with mini connection head
DIN IEC 751 class B ceramic Pt100 probe, 2- or 3-wire assembly with screw terminals.
316L stainless steel protective sheath.
Aluminium alloy miniature connection head.
Smooth probe (stock no. 457-3681) for measuring gases and solid bodies.
316L stainless steel protective sheath.
Aluminium alloy miniature connection head.
Smooth probe (stock no. 457-3681) for measuring gases and solid bodies.
Specifications
Attribute | Value |
|---|---|
| Sensor Type | PT100 |
| Probe Length | 100mm |
| Probe Diameter | 6mm |
| Minimum Temperature Sensed | -50°C |
| Maximum Temperature Sensed | +400°C |
| Termination Type | Connection Head |
| Probe Material | Stainless Steel |
| Process Connection | G1/2 |
| Number Of Wires | 3 |
| Accuracy | Class B |
