Lorlin, 6 Position DP Rotary Switch, 150 mA, Solder

  • RS Stock No. 866-0271
  • Mfr. Part No. CK1045
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

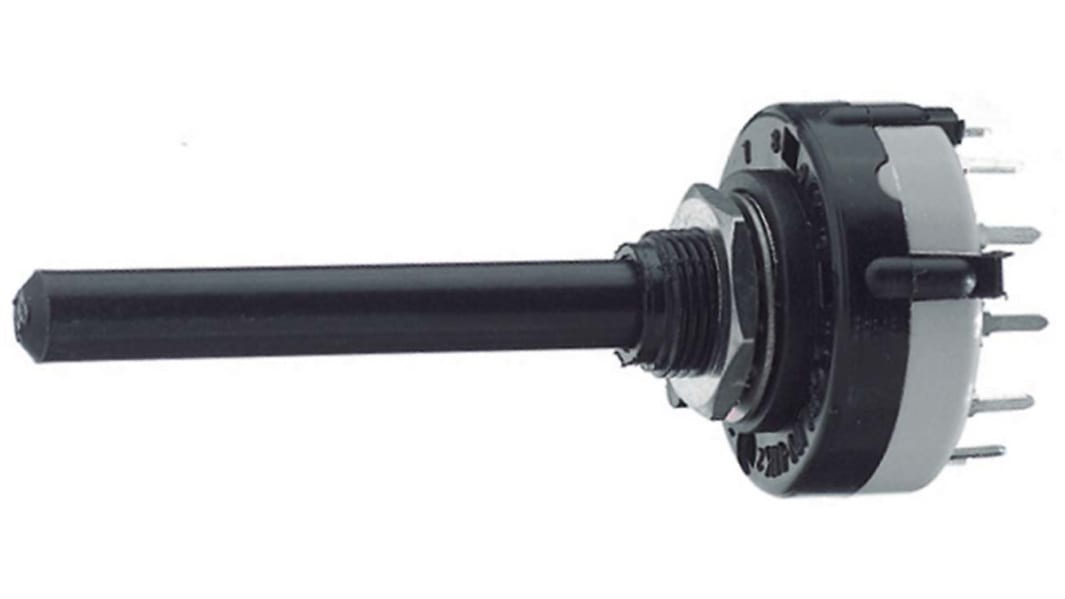

Midget Wafer Switch - CK Series Imperial

A selection of Lorlin CK rotary switches with various switch configurations.

Contacts rated 150mA @ 250Vac/dc
Solder terminals
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) and non-shorting BBM (break before make) contacts
Adjustable stop and continuous rotation options
Dimensions:1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread

Specifications
Attribute Value
Contact Configuration DP
Contact Current Rating 150 mA
Number of Switch Positions 6
Number of Contacts 2
Voltage Rating 250V ac/dc
Diameter 27.5mm
Dimensions 27.5 (Dia.) x 59.1mm
Mounting Type Panel Mount
Terminal Type Solder
Application Low Power
Maximum Operating Temperature +85°C
Mechanical Life >10000Cycles
Minimum Operating Temperature -30°C
Height 59.1mm
Contact Material Brass
Case Material Nylon 6.6
On back order for despatch 20/07/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Bag of 5)
$ 10.48
(exc. GST)
$ 11.53
(inc. GST)
units
Per unit
Per Bag*
5 - 120
$10.48
$52.40
125 - 245
$10.30
$51.50
250 - 745
$10.108
$50.54
750 - 1495
$9.906
$49.53
1500 +
$9.74
$48.70
*price indicative
