Lorlin, 6 Position DPST Rotary Switch, 150 mA@ 250 V ac, Solder Tab
- RS Stock No.:
- 320-685
- Mfr. Part No.:
- CK1030
- Brand:
- Lorlin
View all Rotary Switches
48 In AU stock for next working day delivery
52 In Global stock for delivery within 5 working day(s)
Price (ex. GST) Each
$10.95
(exc. GST)
$12.05
(inc. GST)
| units | Per unit |
| 1 - 49 | $10.95 |
| 50 - 99 | $10.77 |
| 100 - 249 | $10.41 |
| 250 - 499 | $10.15 |
| 500 + | $9.93 |
- RS Stock No.:
- 320-685
- Mfr. Part No.:
- CK1030
- Brand:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

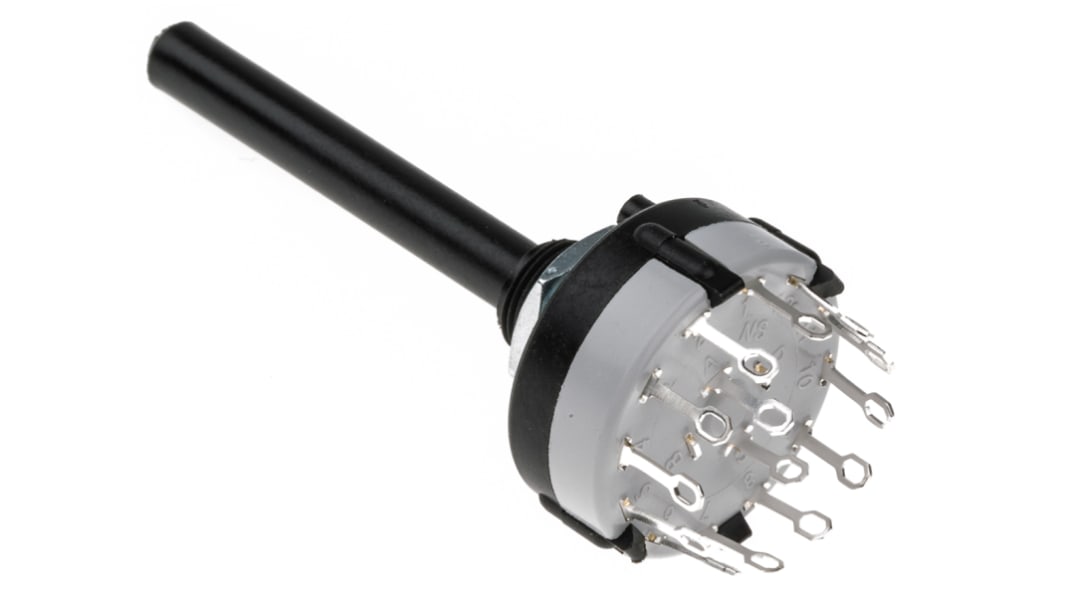

Midget Wafer Switch 6mm Spindle - CK Series
A selection of Lorlin CK rotary switches with various switch configurations.
Contacts rated 150mA @ 250Vac/dc
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread
Note
739-2930 features continuous rotation without indexing stops
Specifications
| Attribute | Value |
| Contact Configuration | DP |
| Contact Current Rating | 150 mA@ 250 V ac |
| Number of Switch Positions | 6 |
| Number of Contacts | 2 |
| Voltage Rating | 250 V dc, 250V ac |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder Tab |
| Height | 71.1mm |
| Contact Material | Silver Plated Brass |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
