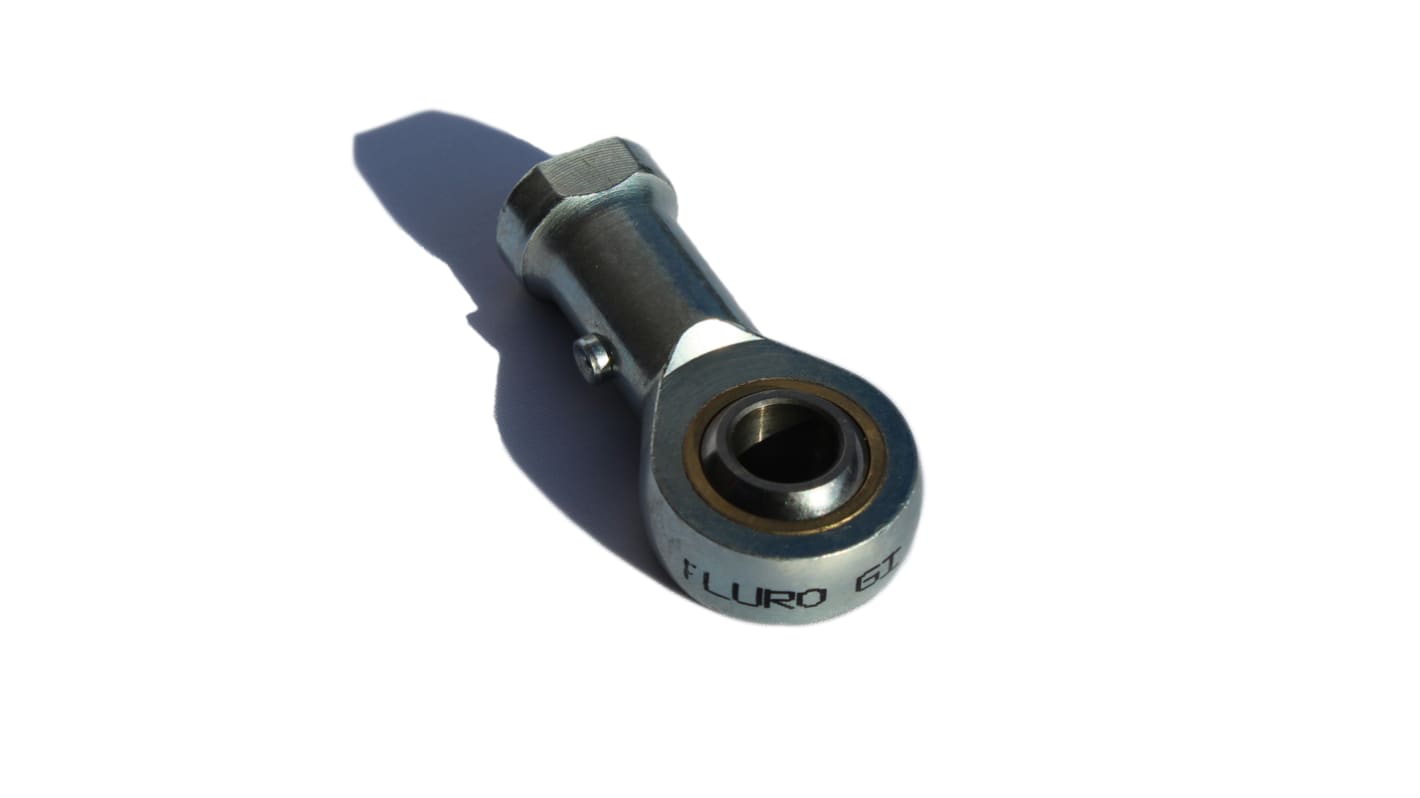

Fluro M10 x 1.25 Female Galvanised Steel Rod End, 10 mm Bore Metric
- RS Stock No.:
- 184-4539
- Mfr. Part No.:
- GIL10x1.25
- Brand:
- Fluro
Bulk discount available
Subtotal (1 unit)*
$65.72
(exc. GST)
$72.29
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | $65.72 |
| 5 - 9 | $63.88 |
| 10 + | $62.93 |
*price indicative
- RS Stock No.:
- 184-4539
- Mfr. Part No.:
- GIL10x1.25
- Brand:
- Fluro
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluro | |
| Product Type | Rod End | |
| Connection Size | M10 x 1.25 Female | |
| Bore Size | 10 mm | |
| Material | Galvanised Steel | |
| Dynamic Load Rating | 7.5kN | |
| Thread Standard | Metric | |
| Static Load Rating | 21.4kN | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 200°C | |
| Overall Width | 57mm | |
| Thread Direction | Left Hand | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Fluro | ||
Product Type Rod End | ||
Connection Size M10 x 1.25 Female | ||
Bore Size 10 mm | ||
Material Galvanised Steel | ||
Dynamic Load Rating 7.5kN | ||
Thread Standard Metric | ||
Static Load Rating 21.4kN | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 200°C | ||
Overall Width 57mm | ||
Thread Direction Left Hand | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Rod Ends with female thread regreasable through the housing with flush type grease fitting
