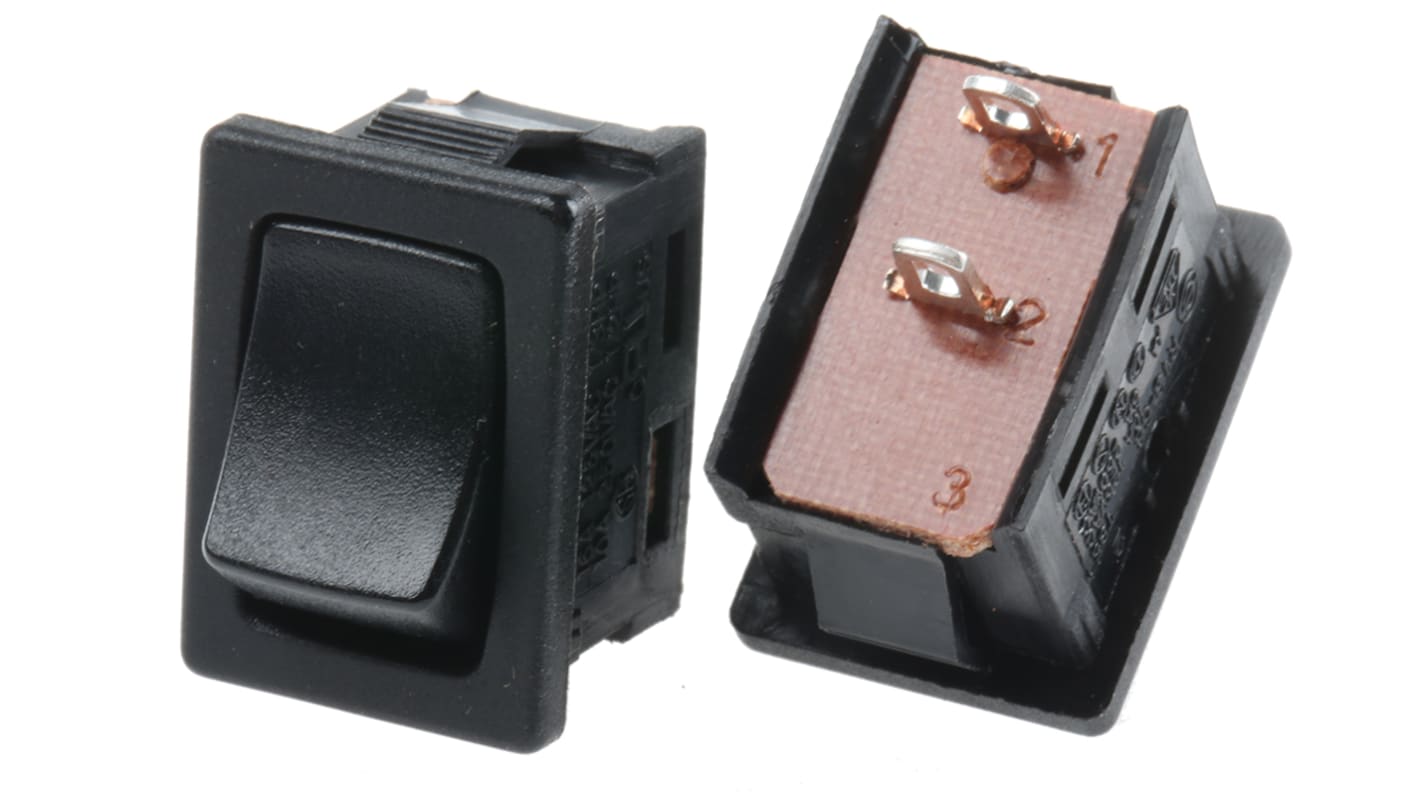

RS PRO Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 419-726
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Miniature Rocker Switches

Miniature SPST rocker switches, available in a wide variety of markings and colour options
Panel cut out 19.2 x 13mm
Fitted with 4.8mm blade style terminals (except stock no. 419-726 which has solder tag terminals)
Snap-in mounting, easy to install into panel
Nylon Housing to UL 94V-2 with silver plated brass terminals

Approvals

CSA (File no. UL45128), VDE (File no. 11037-4401), UR, ENEC, CQC

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Panel Cut Out Width 19.8mm
Panel Cut Out Height 13mm
Contact Current Rating 16 A @ 125 V ac
Illuminated No
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect
Panel Cut Out Size 13 x 19.8mm
Contact Material Silver Plated Brass
Operating Temperature Range -20 → +85°C
Case Material Nylon
Maximum Operating Temperature +85°C
AC Voltage Rating 125 V, 250 V
Contact Resistance 50mΩ
Minimum Operating Temperature -20°C
480 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 5)
$ 1.176
(exc. GST)
$ 1.294
(inc. GST)
units
Per unit
Per Pack*
5 - 245
$1.176
$5.88
250 - 495
$1.144
$5.72
500 - 1245
$1.114
$5.57
1250 - 2495
$1.082
$5.41
2500 +
$1.056
$5.28
*price indicative
